Specifications
solar charger controller 60v1.LCD display
2.PWM controller
3.Lighting and timer controlling
4.ISO9001 R
tracking solar charger controller 60v
PWM series controller is a kind of intelligent, multi-purpose solar charge and discharge cotroller. The family use the fixed LCD display, with a very friendly interface; various control parameters can be flexibly set, fully meet your various application requirements. CM series controller has following features:
- Image of LCD graphic symbol
- Simple button operation
- Sutomatic Identification System Voltage Level
- Intelligent PWM charge mode
- Automatic Temperature Compensation
- Adjustable charge-discharge control parameters
- Settable operating mode of load
- Overload, short circuit protection
- Remote monitoring and control function(custom)
- Battery reverse-discharge protection
- Battery low voltage disconnection(LVD)
- Battery reverse connection protection
- Accumulated function of charge and discharge ampere hours
Rated charge current |
10A |
15A |
20A |
30A |
Rated load current |
10A |
15A |
20A |
30A |
Work voltage |
12; 24V; |
|||
Over load, short circuit protection |
1.25 rated load current 60sec, 1.5 rated loads current 5sec, over load protection action. ≥3 Rated load current short circuit protection action. |
|||
Self-consumption current |
≤ 6 mA |
|||
Charge circuit voltage drop |
≤0.26V |
|||
Load circuit voltage drop |
≤0.15V |
|||
Over voltage protection |
17V; ×2/24V |
|||
Work temperature |
Industry stage:-35°C to 55°C;Commercial stage -5°C to 50°C |
|||
Boost charge voltage |
14.6V;×2/24V; (keep 10min)(only used when overdischarging) |
|||
Direct charge voltage |
14.4V; ×2/24V; (keep 10min) |
|||
Float charge voltage |
13.6V; ×2/24V; |
|||
charge return voltage |
13.2v;×2/24V; |
|||
Temperature compensation |
-5mv/°C/2v(Boost charge, Direct charge, Float charge, charge return voltage); |
|||
Lower voltage indicate |
12.0V; ×2/24V; |
|||
Over discharge voltage |
11.1V(no load)- modified voltage by discharge rate of battery; ×2/24V; |
|||
Over discharge return voltage |
12.6 V; ×2/24V |
|||
Over-discharge pressed return voltage |
12.4V; ×2/24V |
|||
Control mode |
PWM charge mode; modified discharge voltage by the discharge rate |
|||
tracking solar charger controller 60v
2.PWM solar controller Problems & trouble shooting:
Symptom |
Troubleshooting |
Sunlight on panel but green charge LED not on. |
Check solar panel output and cable connections are correct and secure. |
The charge LED flashes fast. |
System overvoltage protection is working. Open circuit in the battery. Check battery cable connections. Charging circuit damaged. |
Load LED is on but no output. |
Load open circuit.Check cablesand connections and any other load switches. |
Load LED is on and flashing fast. No output. |
Check output for short circuit or gross over-load. Remove the load and switch output ON, Controller will resume after 30 seconds. |
Load LED is on and flashing slowly. No output. |
Overload has occurred. Remove sufficient load and switch output On. Controller will resume in 30 seconds. |
System LED flashing RED with no output. |
Battery is over discharged and load disconnected. The load will be reconnected when battery charged again. |
tracking solar charger controller 60v
|

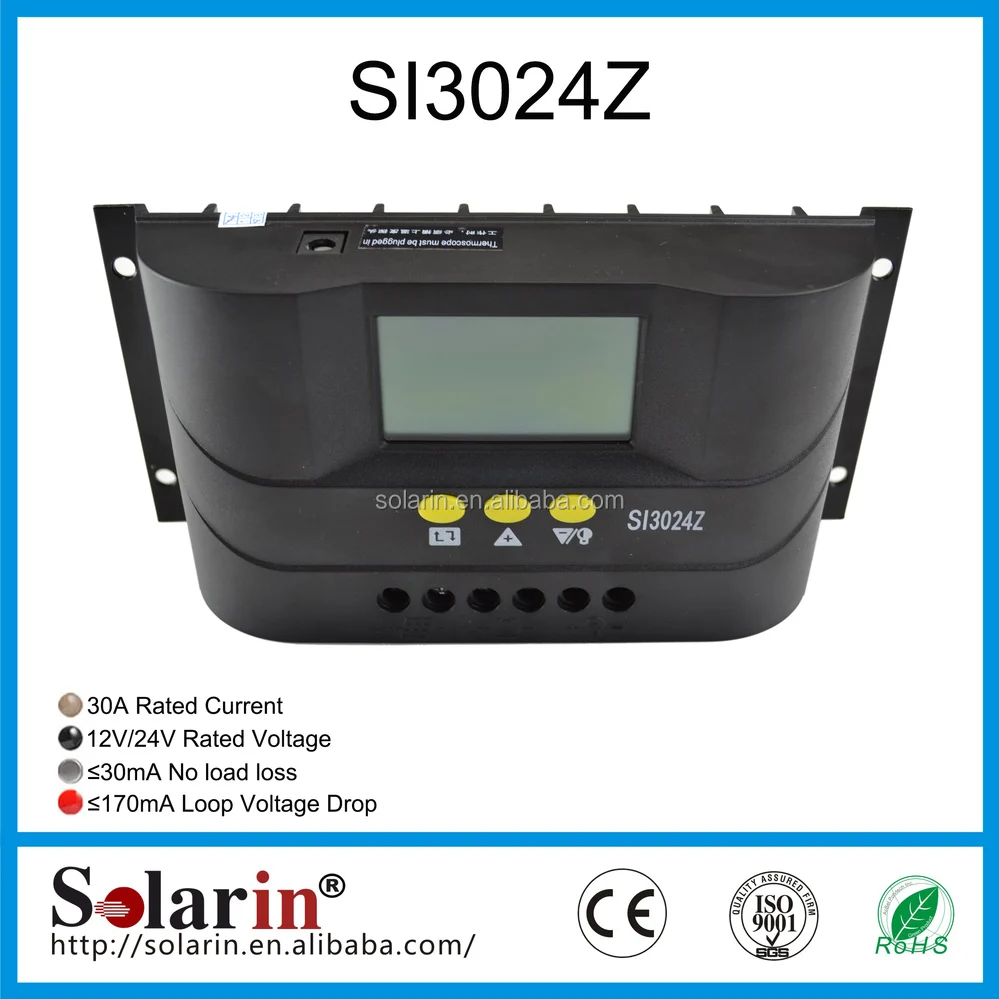

Model Data |
SI3024Z |
SI3048 |
Model Data |
SI3024Z |
SI3048 |
Rated current |
40A, 50A |
Installation cable area |
>3# AWG (<25mm2) |
||
Rated voltage |
12V/24V |
48V |
Operating temperature |
-20°C~50°C |
|
|
Maximum voltage of solar panel |
≤50V |
≤100V |
Storage temperature |
-30°C~70°C |
|
Float voltage |
13.7V/27.4V |
54.8V |
Humidity Requirement |
≤90%, No Condensation |
|
|
Low Voltage Disconnection |
10.7V/21.4V |
42.8V |
Size |
130mm×188mm×62mm |
|
|
Low Voltage Reconnection |
12.6V/25.2V |
50.4V |
Mounting hole spacing |
98 mm×178 mm --Φ5 |
|
No load loss |
<30mA |
Weight |
590g |
||
|
Loop voltage drop |
≤200mV |
|
|
||
Charging mode |
PWM Mode |
|
|
||
Temperature compensation |
-4mV/Cell/°C |
|
|
||
Notes |
Model suffix' Z' represent automatic identify system voltage level, 'T'represent controller with remote monitoring. |
||||
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.
3. Q: Does your company also provide other solar products except solar charge controller regulator?
A: Yes, we also provide other solar products, like mono solar panel, poly solar panel, off grid solar inverter, solar Led light, battery, portable solar system, solar charger, solar junction box, DC fun and other accesories related to the solar power system.
4. Q: How can I get some samples?
A: Please connect me for samples, and my phone number: 86 18613076668.
5. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
tracking solar charger controller 60v
Buy 30A PMW Solar Controller info:
Payment Terms
T/T, L/C are the payment methods we accept at present.
Shipping
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
