direct factory sale duo battery solar controller
Electronic protection:
Overheating
over charging
over discharging
overload,and short circuit(LOAD)
Reverse protection(solar module and battery)
Model Data |

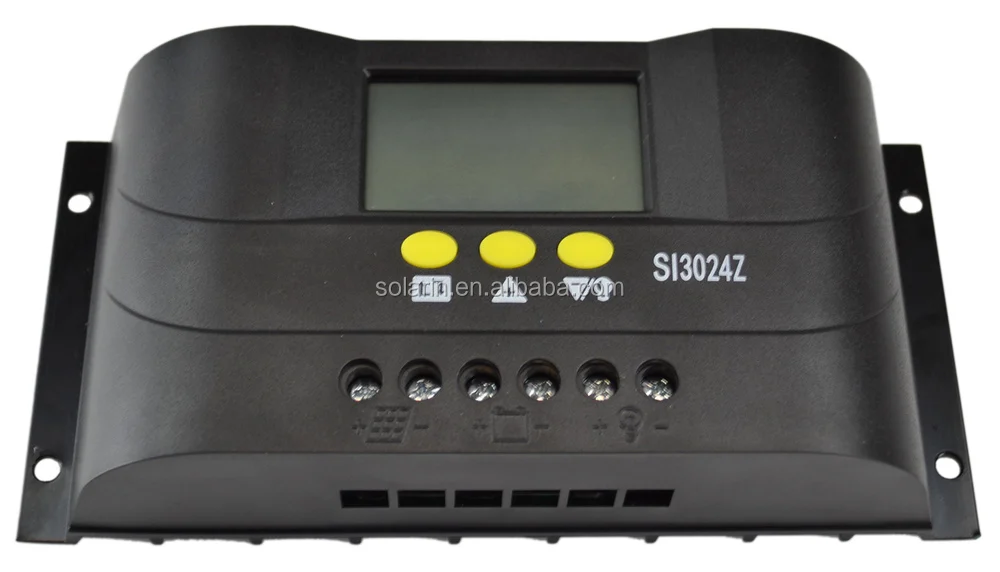

SI3024Z |
| Rated current | 30A |
| Rated voltage | 12V/24V |
| Maximum voltage of solar panel | ≤50V |
| Float voltage | 13.8V/27.6V |
| Low Voltage Disconnection | 12.5V/25V |
| Low Voltage Reconnection | 12.6V/25.2V |
| No load loss | <30mA |
| Loop voltage drop | ≤170mV |
| Charging mode | PWM Mode |
| Temperature compensation | -4mV/Cell/°C |
| Notes | Model suffix “Z” means the controller can automatically identify the system voltage. |

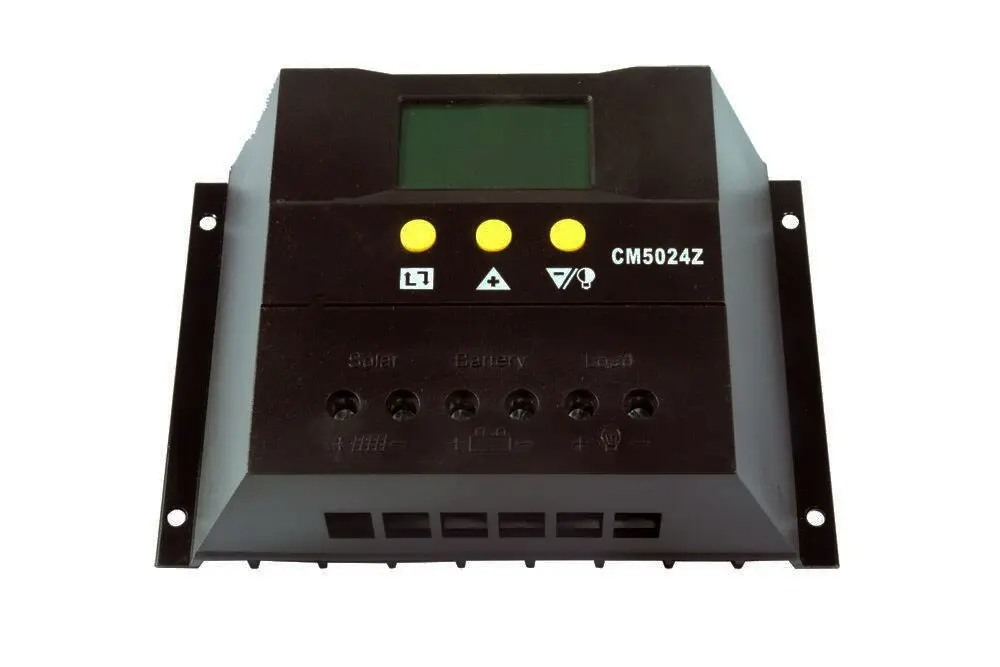

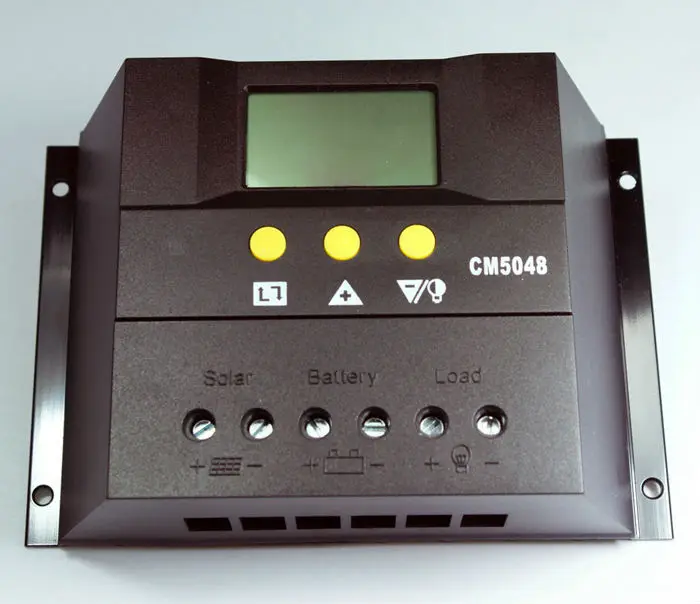

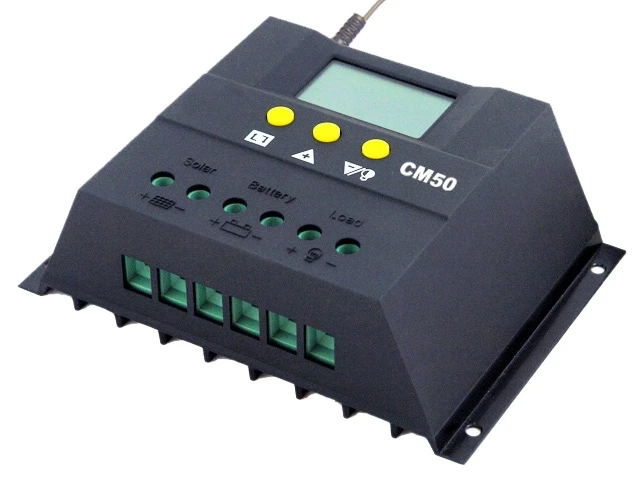

| Model | CM5024Z | CM5048 |
| Rated current | 50A | 50A |
| Rated voltage | 12V/24V | 48V |
| Maximum voltage of solar panel | ≤50V | ≤100V |
| Float voltage | 13.7V/27.4V | 54.8V |
| Low Voltage Disconnection | 10.7V/21.4V | 42.8V |
| Low Voltage Reconnection | 12.6V/25.2V | 50.4V |
| No load loss | <30mA | |
| Loop voltage Drop | ≤200mV | |
| Charging mode | PWM Mode | |
| Temperature compensation | -4mV/Cell/°C | |
| Installation cable area | >3# AWG (<25mm2) | |
| Operating temperature | -20°C~50°C | |
| Storage temperature | -30°C~70°C | |
| Humidity Requirement | ≤90%, No Condensation | |
| Size | 130 ×188 ×62mm | |
| Mounting hole | 98*178mm--Φ5 | |
| Weight | 590g | |
| Notes | Model suffix “Z” means the controller can automatically identify the system voltage. | |

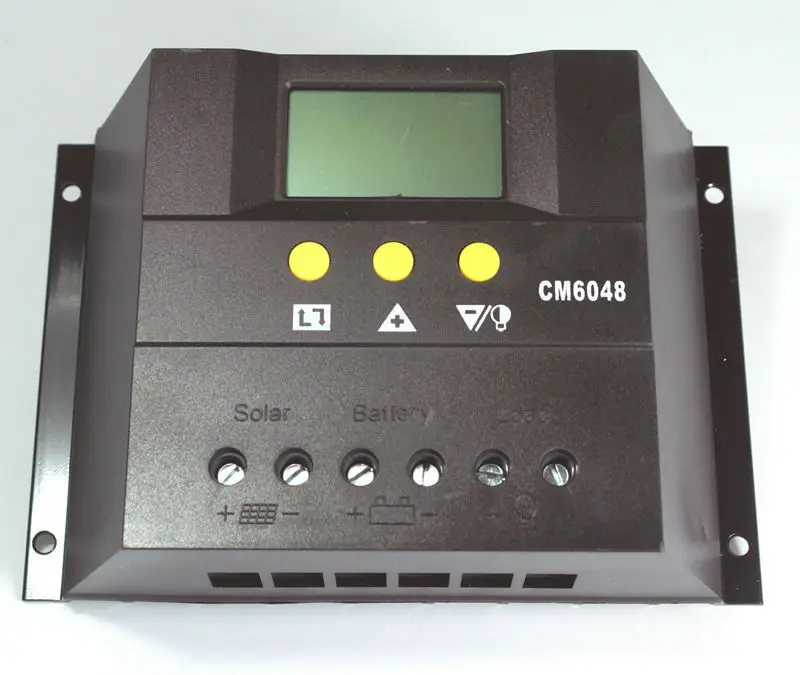

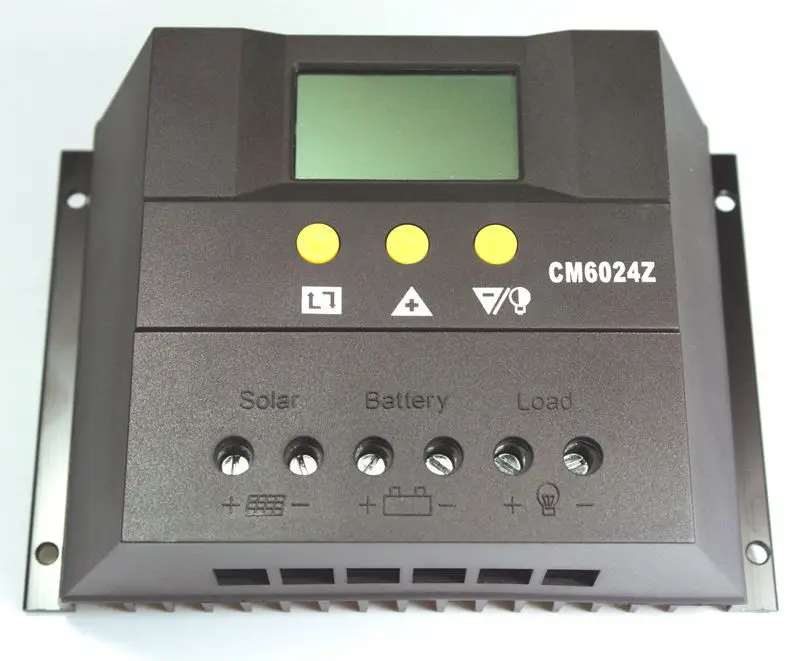

CM6024Z,CM6048
| Model | CM6024Z | CM6048 |
| Rated current | 60A | 60A |
| Rated voltage | 12V/24V | 48V |
| Maximum voltage of solar panel | ≤50V | ≤100V |
| Float voltage | 13.7V/27.4V | 54.8V |
| Low Voltage Disconnection | 10.7V/21.4V | 42.8V |
| Low Voltage Reconnection | 12.6V/25.2V | 50.4V |
| No load loss | <30mA | |
| Loop voltage Drop | ≤200mV | |
| Charging mode | PWM Mode | |
| Temperature compensation | -4mV/Cell/°C | |
| Installation cable area | >3# AWG (<25mm2) | |
| Operating temperature | -20°C~50°C | |
| Storage temperature | -30°C~70°C | |
| Humidity Requirement | ≤90%, No Condensation | |
| Size | 130 ×188 ×62mm | |
| Mounting hole | 98*178mm--Φ5 | |
| Weight | 590g | |
| Notes | Model suffix “Z” means the controller can automatically identify the system voltage. | |
direct factory sale duo battery solar controller
Product Images
| Notes | Model suffix “Z” means the controller can automatically identify the system voltage. | |
direct factory sale duo battery solar controller
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.
3. Q: Does your company also provide other solar products except solar charge controller regulator?
A: Yes, we also provide other solar products, like mono solar panel, poly solar panel, off grid solar inverter, solar Led light, battery, portable solar system, solar charger, solar junction box, DC fun and other accesories related to the solar power system.
4. Q: How can I get some samples?
A: Please connect me for samples, and my phone number: 86 18613076668.
5. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
camping 1224v solar controller
Buy 30A PMW Solar Controller info:
Payment Terms
T/T, L/C are the payment methods we accept at present.
Shipping
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
Feedback
1. Customer satisfaction is completely guaranteed. If for any reason you are unsatisfied with your order, please contact us first before you leave the feedback.
2. We will do our best to take care of you and if you have any questions please do not hesitate and feel free to contact us at : or www.soalrin.en.china.cn
Mail :
Mob/Whatsapp/Wechat: 0086 13617298850
Tel: 86 20 83602960
Skype:zoec217
For more product information, you can also click here:
Mono Solar Panel Off Grid Solar Inverter Battery DC Solar Lighting System AC Solar System Solar LED Light Solar Charge Controller
