Specifications

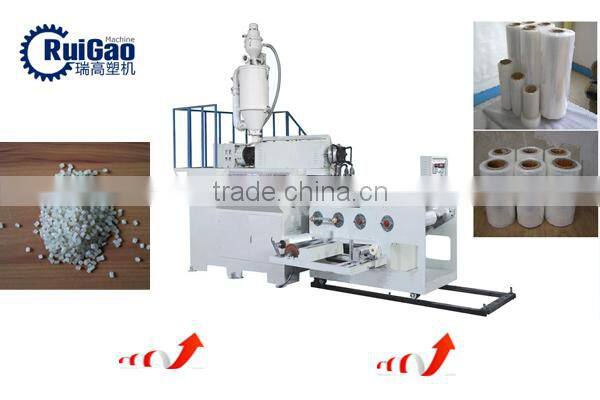

pe shrink wrapping film machine pricefor extruding LDPE and LLDPE Stretch film
Economic
High Speed
1. Machine Introduction
USE:
This machine uses LDPE and LLDPE to produce casting stretch film, which widely used in packing area for
building material, auto parts, hardware parts etc.
FEATURE:
RG-50 stretch film co-extruder with following features: low noise, stable running, especially winding part is
controlled by PLC program. The machine is equipped with extruder, traction part, leveling part, edge trimming,
winding and finished roll automatic changing etc.
2. Machine Advantages
1, We use stronger steel plate for machine body, which makes machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials, it is very hard.
3, Hard surface gearbox, the life can be more than 5 years.
4, Motor with CE standard has more than10 years life.
5, Electric parts is CHINT, the best supplier in China.
6, The steel roller is mirror roller, which is very nice.
7, Our standard rewinder is semi-automatic, we can do automatic rewinder, no need to change rolls by hand.
3. Machine Parameters
| Model | RG-50 |
RG-55 |
Screw Diameter |
Φ50mm |
φ55mm |
L/D |
30:1 |
30:1 |
Rational speed of screw stem |
10-120rpm |
10-120rpm |
Finished Film Width |
200-500mm |
200-500mm |
Output |
30kg/h |
35kg/h |
Finished Film Thickness |
0.008-0.04mm |
0.008-0.04mm |
Main Motor Power |
11kw |
15kw |
Heating power |
15KW |
20KW |
Water Consumption |
0.5m3/h |
0.5m3/h |
Machine Weight |
3T |
4T |
Overall Dimensions |
5600*1500*1800mm |
6000*1500*2500mm |
4. Machine Details
5. Machine Packing & Loading
6. Qustions & Answers
7. Factory Appearance
8. Global Customers
9. CE Certification
10. Contact Person
