Shrink Film Making Machine in Ruian

FOB Price

US$ 8,000 - 40,000 / Set

1 Set(Min. Order)

Port NINGBO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Film
Plastic Processed	PE	Screw Design	Double-screw
Automatic Grade	automatic	Place of Origin	Zhejiang, China
Brand Name	RG	Model Number	1250mmDouble/single-layer
Voltage	380v	Power(W)	15kw
Dimension(LWH)	42.51.5m	Weight	2500kg
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

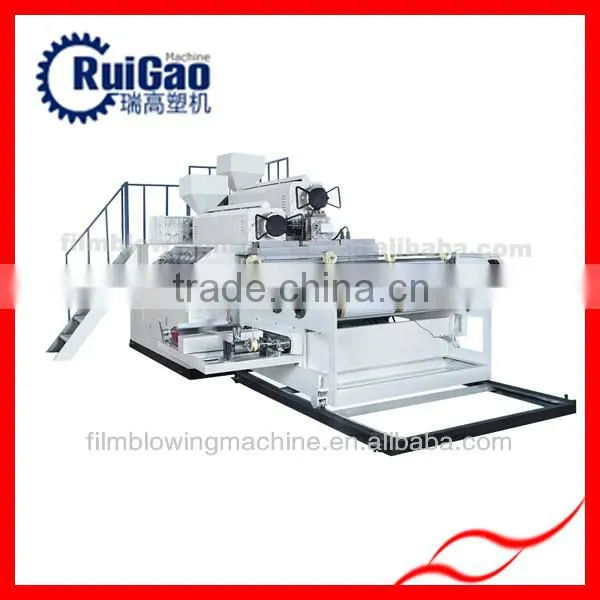

Shrink Film Making Machine
cling film raw material LDPE,LLDPE
for packing food, hardware ect
Economic,stable,safe

1. Machine Introduction

USE:

This machine uses LDPE and LLDPE to produce casting stretch film, which widely used in packing area for

building material, auto parts, hardware parts etc.

FEATURE:

RG-50 stretch film co-extruder with following features: low noise, stable running, especially winding part is

controlled by PLC program. The machine is equipped with extruder, traction part, leveling part, edge trimming,

winding and finished roll automatic changing etc.

2. Machine Advantages

1, We use stronger steel plate for machine body, which makes machine more stable

2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials, it is very hard.

3, Hard surface gearbox, the life can be more than 5 years.

4, Motor with CE standard has more than10 years life.

5, Electric parts is CHINT, the best supplier in China.

6, The steel roller is mirror roller, which is very nice.

7, Our standard rewinder is semi-automatic, we can do automatic rewinder, no need to change rolls by hand.

3. Machine Parameters

Item/Model	1250mmDouble-layer	1250mmSingle-layer
Screw diameter(mm)	55*2	70
L/D ratio of screw (L/D)	28:1	28:1
width of die head (mm)	1250	1250
Width of finished products(mm)	1000(500*2rollers)	1000(500*2rollers)
Thickness of finished products (mm)	0.017-0.05	0.017-0.05
Structure of film layers	A/B	--
Max output (kg/h)	60	60
Linear speed of machinery (m/min)	50-100	50-100
Total power (KW)	50	50
Overall dimensions (LWH)m	7.54.53.2	7.543.2
Weight (T)(About)	5.5	4.5

4. Machine Details

5. Machine Packing & Loading

6. Qustions & Answers

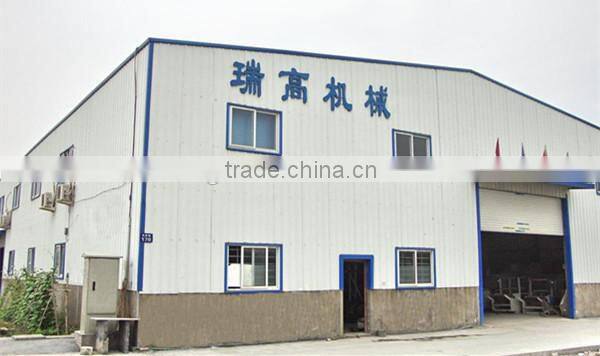

7. Factory Appearance

8. Global Customers

9. CE Certification

10. Contact Person
