Specifications
1.Suitable for BOPP, PET, CPP, CPE, PVC, aluminum foil and paper2.Vertical, high speed
3.Economic
4.Safe &Stable

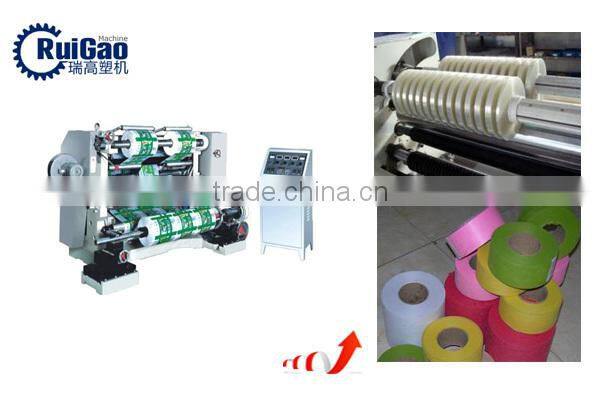

1. Machine Introduction
This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE,
PVC, aluminum foil laminated with film and paper, etc. And can cut edge, separate and cut material according
to different requirements during production.
2. Machine Advantages
1. Main Motor equipped with inverter for speed regulation.
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or
the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake
5. Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder
clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.
3. Machine Parameters
Type |
LFQ-700A |
LFQ-1100A |
LFQ-1300A |
Max.Width of Mother Roll |
700mm |
1100mm |
1300mm |
MAX.Diameter of Mother Roll |
Φ600mm |
Φ600mm |
Φ600mm |
Width of Final Roll |
30-600mm |
30-600mm |
30-600mm |
Slitting and Rewinging Speed |
5-160m/min |
5-160m/min |
5-160m/min |
Tolerance of EPC |
<±0.5mm |
<±0.5mm |
<±0.5mm |
Total Power |
2.7kw |
3.5kw |
3.5kw |
Weight of Machine |
1500kg |
2000kg |
2200kg |
Overall Dimension |
2000×1110×1400 |
2400×1110×1400 |
2600×1110×1400 |

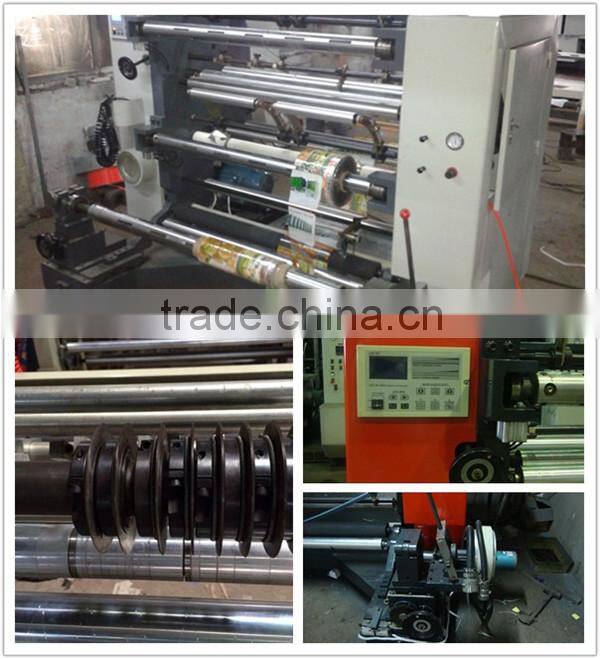

4. Machine Details

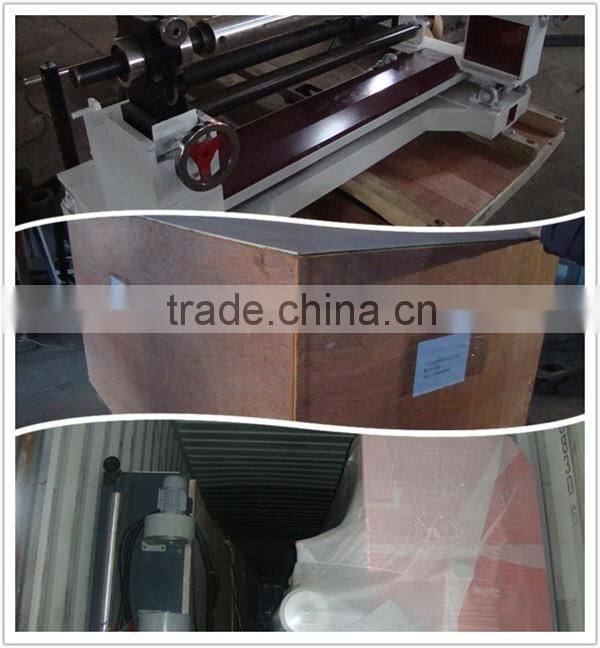

5. Machine Packing & Loading
6. Qustions & Answers
7. Factory Appearance
8. Global Customers
9. CE Certification
10. Contact Person
