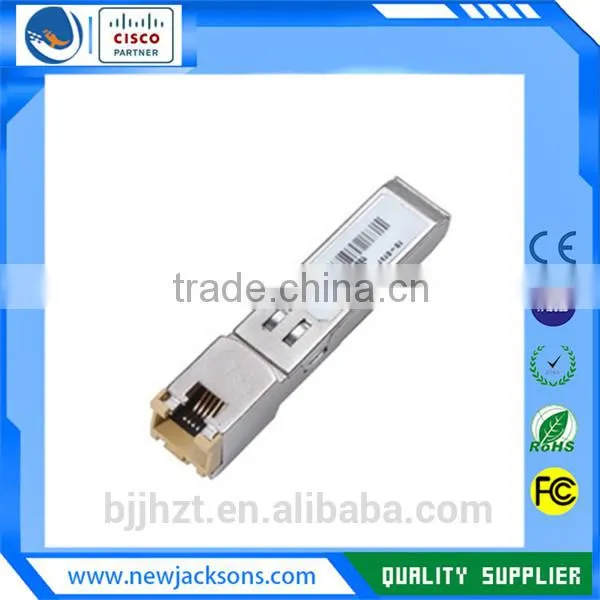

CISCO GLC-T Cisco Small Form-Factor Pluggable Modules

CISCO GLC-T Cisco Small Form-Factor Pluggable Modules thumbnail-1
CISCO GLC-T Cisco Small Form-Factor Pluggable Modules photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wired
Application:
Enterprise
Contact Supplier Request Quote Chat Now
Beijing New Jackson Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wired
Application Enterprise
Function QoS, VPN
LAN Ports 4
WAN Ports 2
Certification IOS
Brand Name CISCO
Model Number GLC-T
Place of Origin California, United States

Part Number: CISCO GLC-T

Manufacturer: Cisco

Condition: New Sealed

Stock: YES-within 1-3 days



Cisco Small Form-Factor Pluggable Modules for Gigabit Ethernet Applications Data Sheet

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figures 1, 2 and 3). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

CISCO GLC-T Cisco Small Form-Factor Pluggable Modules

CISCO GLC-T Cisco Small Form-Factor Pluggable ModulesCISCO GLC-T Cisco Small Form-Factor Pluggable ModulesCISCO GLC-T Cisco Small Form-Factor Pluggable Modules

Table 1 provides cabling specifications for the SFPs that you install in the Gigabit Ethernet port. Note that all SFP ports have LC-type connectors, and the minimum cable distance for all SFPs listed (multimode and single-mode fiber) is 6.5 feet (2 m).

CISCO GLC-T Cisco Small Form-Factor Pluggable Modules

*A mode-conditioning patch cord, as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning patch cord for 62.5-μm fibers has a different specification from the mode-conditioning patch cord for 50-μm fibers.

**ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
***Specified at transmission wavelength.

Optical Specifications

Table 2 specifies the optical parameters for the SFPs. Both receiver power and channel insertion loss specifications must be met for guaranteed operation.
CISCO GLC-T Cisco Small Form-Factor Pluggable Modules
*Maximum channel insertion loss is defined for maximum distance guaranteed as specified in Table 1 and by fiber type. When links are deployed over shorter distances, additional channel insertion loss may be allowed.

Dimensions

Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm. Cisco SFPs typically weigh 75 grams or less.

Environmental Conditions and Power Requirements

Operating temperature range:

• Commercial temperature range (COM): 0 to 70°C (32 to 158°F)

• Extended temperature range (EXT): -5°C to 85°C (23 to 185°F)

• Industrial temperature range (IND): -40 to 85°C (-40 to 185°F)

• Storage temperature range: -40 to 85°C (-40 to 185°F)

Cisco SFP modules typically consume up to 1W per SFP port, with the exception of the Compact SFP
(GLC-2BX-D) consuming up to 1.5W.
Table 3 gives temperature range and DOM support information for the SFPs.
CISCO GLC-T Cisco Small Form-Factor Pluggable Modules

Regulatory and Standards Compliance

Safety:

• Laser Class I 21CFR1040 LN#50 7/2001

• Laser Class I IEC 60825-1

Standards:

• IEEE 802.3z

• IEEE 802.3ah

GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors

Ordering Information

To place an order, visit the Cisco Ordering homepage or refer to Table 4.

Regulatory and Standards Compliance

Safety:

• Laser Class I 21CFR1040 LN#50 7/2001

• Laser Class I IEC 60825-1

Standards:

• IEEE 802.3z

• IEEE 802.3ah

GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors

Ordering Information

To place an order, visit the Cisco Ordering homepage or refer to Table 4.

Table 4. Ordering Information

Product Description

Product Number

1000BASE-T standard

GLC-T

1000BASE-SX short wavelength; without DOM

GLC-SX-MM

1000BASE-LX/LH long-wavelength/long haul; without DOM

GLC-LH-SM

1000BASE-ZX extended distance

GLC-ZX-SM

1000BASE-BX10-D downstream bidirectional single fiber; with DOM

GLC-BX-D

2-channel 1000BASE-BX10-D downstream bidirectional single fiber; with DOM

GLC-2BX-D

1000BASE-BX10-U upstream bidirectional single fiber; with DOM

GLC-BX-U

1000BASE-T NEBS 3 ESD

SFP-GE-T

1000BASE-SX short wavelength; with DOM

SFP-GE-S
GLC-SX-MMD

1000BASE-LX/LH long-wavelength; with DOM

SFP-GE-L
GLC-LH-SMD

1000BASE-EX long-wavelength; with DOM

GLC-EX-SMD

1000BASE-ZX extended distance; with DOM

SFP-GE-Z
GLC-ZX-SMD

1000BASE-SX short wavelength; rugged

GLC-SX-MM-RGD

1000BASE-LX/LH long wavelength; rugged

GLC-LX-SM-RGD

1000BASE-ZX extended distance; rugged

GLC-ZX-SM-RGD
