Automatic Paper Roll Cutting Machine

Automatic Paper Roll Cutting Machine photo-1
US$ 4,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Slitting Rewinder
Computerized Yes
Place of Origin Zhejiang, China
Brand Name RG
Model Number FQ-L700B
Voltage 220V
Power(W) 6KW
Dimension(L*W*H) 2.4*1.5*1.7
Weight 2T
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Vertical Automatic paper roll cutting machine is easy to cut
high quality and cheap
steady
high speed and cut smooth

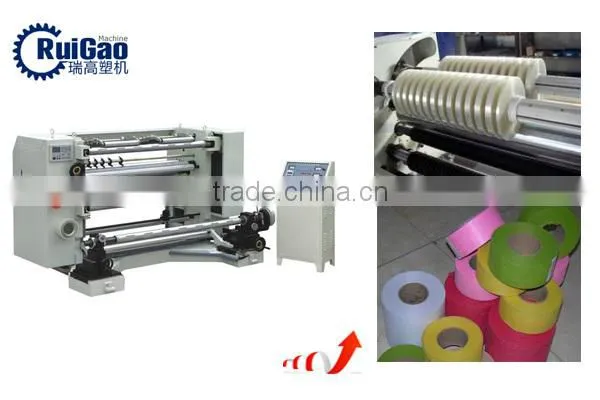

Automatic paper roll cutting machine



 Automatic paper roll cutting machine

1. Machine Introduction

This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE,

PVC, aluminum foil laminated with film and paper, etc. And can cut edge, separate and cut material according

to different requirements during production.



2. Machine Advantages

1. Main Motor equipped with inverter for speed regulation.
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or
the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake
5. Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder
clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.



3. Machine Parameters

Type

FQ-L700B

FQ-L1100B

FQ-L1300B

Max.Width of Mother Roll

700mm

1100mm

1300m

Max.Diameter of Mother Roll

φ 600mm

φ 600mm

φ 600mm

Width of Final Roll

50~700mm

50~1100mm

50~1300mm

Max.Diameter of Rewinding

φ 450mm

φ 450mm

φ 450mm

Internal Diameter of RollCore

76mm

76mm

76mm

Mechanical Speed

180m/min

180m/min

180m/min

Slitting and Rewinding Speed

160m/min

160m/min

160m/min

Tolerance of EPC

±0.5mm

±0.5mm

±0.5mm

Total Power

2.9Kw

3.7Kw

3.7Kw

Weigh t o f Machine

1300kg

1600kg

1900kg

Overall Dimension(L×W×H)

1570×2100×1500

1570×2500×1500

1570×2700×1500

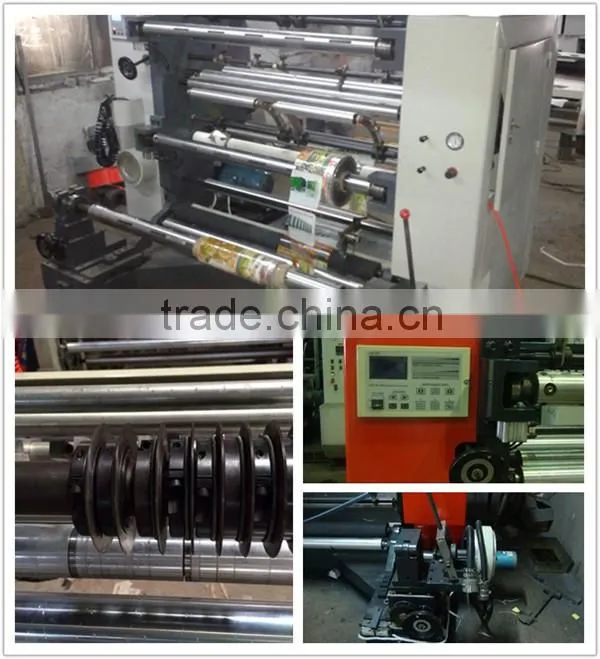

 4. Machine DetailsAutomatic paper roll cutting machine



5. Machine Packing & LoadingAutomatic paper roll cutting machine



6. Qustions & Answers

Automatic paper roll cutting machine



7. Factory Appearance

Automatic paper roll cutting machine



8. Global Customers

Automatic paper roll cutting machine



9. CE Certification  Automatic paper roll cutting machine



10. Contact Person

Automatic paper roll cutting machine
