Product Description
Brief introduction
CL1110 is an ISDN S0 compact SMD transformer with HI-POT of 3000VAC/0.5mA/60sec. requirements.
Technical specification
Item | Condition | Spec | PIN |
HI-POT(Vrms) | 3000VAC 0.5mA | 1minute | 1-16(short1,2,3,4 & 16,15,14,13& |
OCL | 10KHz 0.1V | 30mH min | 1-4 (short2,3) & 5-8 (short6,7) |
OCL(Choke) | 100KHz 0.1V | 5mH TYP | 1-2(short16,15), 3-4(short14,13), |
Impedance test | ΔIDC=4mA, f=20kHz UAC, eff=100mV | Z3= Z4> (2500/4)Ω | 1-2,3-4,5-6,7-8 |
Turn Ratios | 1:1:2:2±1% | 1-2:3-4:16-15:14-13 & | |
Turn Ratios(Choke) | 1:1:1:1±1% | 1-2,3-4,5-6,7-8 | |
DCR | 1.7Ω max | 16-15,14-13,12-11,10-9 | |
1.4Ω max | 1-2,3-4,5-6,7-8 | ||
LL | 100KHz 0.1V | 5.0uH max | 1-4 (short2,3 & 16,15,14,13) & |
CW/W | 10KHz 0.1V | 120pF max | 1-16(short1,2,3,4 & 16,15,14,13) & |
Operating Temperature Range | -40°C to 85°C |
Standard complied
ITU-T I.430 RoHS compliant
Mechanical
Unit:mm
Schematic
Specifications
1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE
Production Line

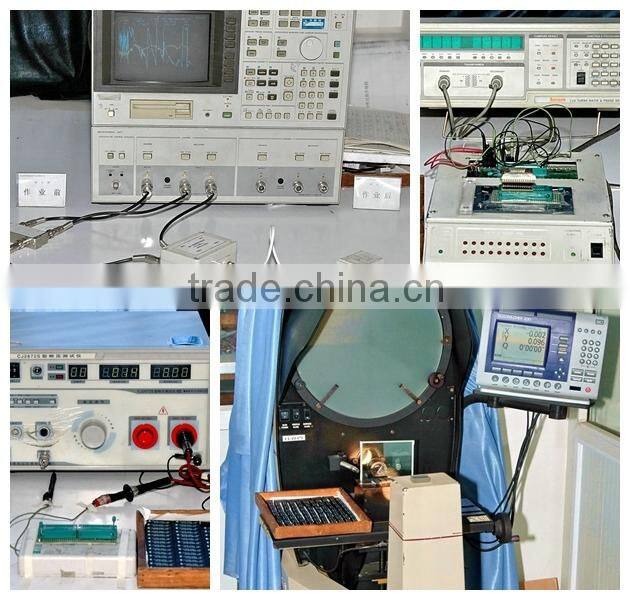

Machine and test equipment:
