50 ohm(unbalanced) to 100 ohm(balanced) Wideband Balun Transformers
Negotiable
/ Piece
10 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- tianjin
- T/T Credit Card
You May Like
-
50 ohm(unbalanced) to 600 ohm(balanced) Wideband Balun Transformers
-
50 ohm(unbalanced) to 120 ohm(balanced) Wideband Balun Transformers
-
50 ohm(unbalanced) to 128 ohm(balanced) Wideband Balun Transformers
-
50 ohm(unbalanced) to 116 ohm(balanced) Wideband Balun Transformers
-
ISDN Transformer
-
Network transformer
Product Details
| Place of Origin | Beijing, China | Brand Name | corelogic | |
| Model Number | CLTTA-1001 | Usage | Other | |
| Phase | Other | Coil Structure | Other | |
| Coil Number | Other |
Product Description
Operation Environment
Temperature:
Operating: -35°C to +70°C
Storage: -55°C to +95°C
Humidity: 0%-100% non-condensing
Technical Parameters
| Model Number | Impedance | Frequency range | Return Loss | Correction Factor | Longitudinal Balance |
| CLTTA-1001A | 50Ω:100Ω | 0.2-50KHz | 20dB | 3.6dB | 60dB |
| CLTTA-1001A-1 | 10-2500KHz | ||||
| CLTTA-1001B | 0.5-50MHz | 50dB | |||
| CLTTA-1001C | 0.5-50MHz |
Simplified Schematic
Applications
SLF/UHF/VLF/LF/MF/HF/VHF
instrumentation
Outline Dimensions
Type A
Type B
Type C

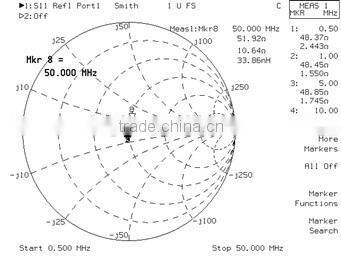

Impedance of S11
