50 Ohm(unbalanced) to 120 Ohm(balanced) Wideband Balun Transformers
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
corelogic
Model Number:
CLTTA-1023
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50 Ohm(unbalanced) to 128 Ohm(balanced) Wideband Balun TransformersNegotiableMOQ: 10 Pieces -
50 Ohm(unbalanced) to 116 Ohm(balanced) Wideband Balun TransformersNegotiableMOQ: 10 Pieces
-
ISDN TransformerNegotiableMOQ: 1000 Units
-
Network TransformerNegotiableMOQ: 1000 Pieces
-
Network TransformerNegotiableMOQ: 1000 Pieces
Place of Origin
Beijing, China
Brand Name
corelogic
Model Number
CLTTA-1023
Usage
Other
Phase
Other
Coil Structure
Other
Coil Number
Other
Operation Environment
Temperature:
Operating: -35°C to +70°C
Storage: -55°C to +95°C
Humidity: 0%-100% non-condensing
Technical Parameters
| Model Number | Impedance | Frequency range | Return Loss | Correction Factor |
Longitudinal Balance |
| CLTTA-1023B | 50Ω:120Ω | 0.5-50MHz | 20dB | 3.6dB | 50dB |
| CLTTA-1023C | 0.5-50MHz |
Simplified Schematic
Applications
SLF/UHF/VLF/LF/MF/HF/VHF
instrumentation
Outline Dimensions
Type B
Type C

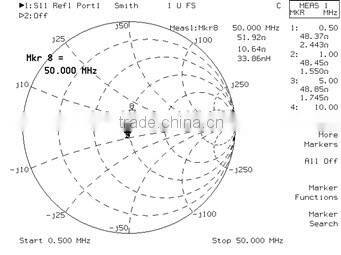

Impedance of S11
