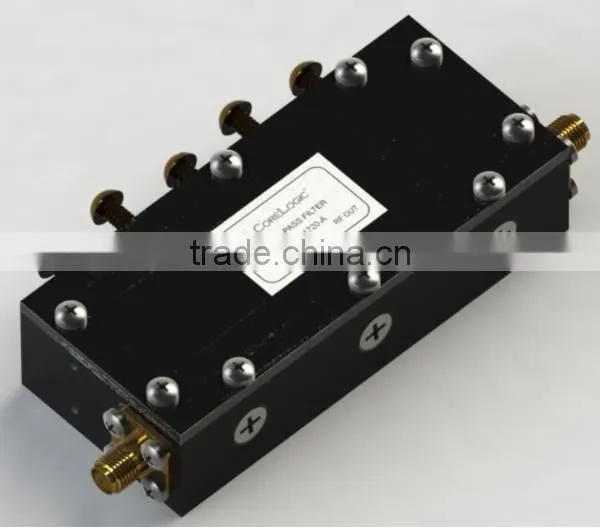

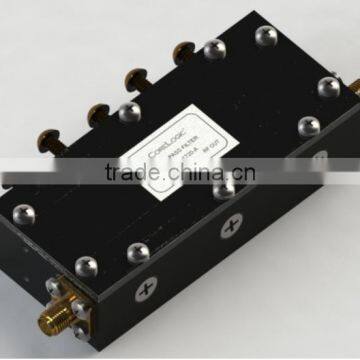

Help CenterCavity Bandpass Filter
Related Products
Product Description
Filter is a kind of the device that allowing a certain part of the frequency of the signal through smoothly, and inhibit the other part of the frequency of the signal. Can pass the frequency range of the signal in the filter, known as the passband; On the other hand, the signal attenuation or completely suppressed was very frequency range is called the band rejection. It is small with firm structure and high stability etc.
Technical Parameters
| Items | Indicators |
||||||
Center Frequency (MHz) |
2482MHz |
||||||
Bandwidth |
20MHz(2472-2492MHz) |
||||||
Insertion Loss |
≤3.0 dB@2482MHz |
||||||
VSWR |
≤1.35@2482MHz | ||||||
Rejection |
≥50dB@ F0±200MHz |
||||||
| Power Capacity | 50W | ||||||
Impedance |
50Ω | ||||||
Connector Type |
SMA-Female | ||||||
Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage : -55°C to +95°C
Humidity: 0%-100% non-condensing
Outline Dimensions
Unit:mm
Production Line
Machine and test equipment:
Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
