Introduction
CLTX-26BS-1 uses 2 stage amplifier, small volume, back with a magnet, widely used in vehicle GPS positioning and timing.
Technical Parameters
| Center frequency | 1575.42±2MHz |
| Impendence | 50Ω |
| LNA Gain | ≥26dB |
| Polarization | Right-handed polarized |
| Noise figure | ≤1.5dB |
| DC Voltage | 3.0~5.0VDC |
| Size | 46×39×13.5mm |
| Cable | RG174 |
| Connector | SMA/BNC/F |
| Working Temp | -35℃~+80℃ |
| Storage Temp | -55℃~+95℃ |

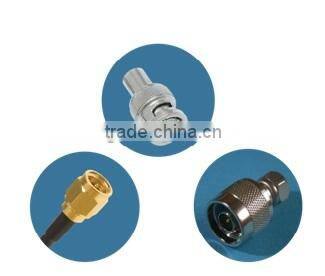

Connector

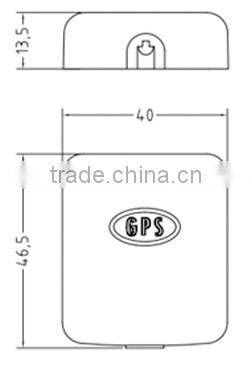

Outling Dimensions
Production Line
Machine and test equipment:

Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
