GPS With 37dB LNA Antena

Beijing Corelogic Communication Co., Ltd.
GPS With 37dB LNA Antena thumbnail-1
GPS With 37dB LNA Antena photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Antenna
Use:
Other
Screen Size:
Other
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Antenna
Use Other
Screen Size Other
Function Other
Place of Origin Beijing, China
Brand Name CoreLogic
Model Number CLTX-37AN-1

Brief introduction

CLTX-37AN-1 uses 3 stage Low Noise Amplifier,double filter. Widely used in GPS positioning and timing for navigation building etc.



GPS Antenna Specification



ItemsIndicators
Frequency Range (MHz) 1575.42±2MHz
GAIN (dBi) ≥37dB
Polarization

Right hand circular

Axis Ratio(dB)

< 3

Front to Back Ratio (dB)

> 10

3dB Beam Width (°) 3dB

110±10

Supply Forms

COAXIAL
Operating Voltage (V/DC)3.0~5.0VDC

DC Current (mA)

≤45

Cable Type

CNT195

Connector Type

N

Impedance (Ω)

50Ω

ANTI-SURGE PERFORMANCE

ACCORDING GB/T 17626.5-1999;IDT IEC 61000-4-5:1995 STANDARD



LNA Specification

Items

Indicators

Frequency Range (MHz)

1575.42±5MHz
GAIN (dBi)

34±2dB

Flatness in Bandwith (dB)≤2
Noise Figure (dB) ≤1.5
VSWR ≤2.0
1dB the dot of export (dBm) ≥0



Operation Environment

Temperature:

Operating: -35°C to +76°C

Storage : -55°C to +95°C

Humidity: 0%-100% non-condensing

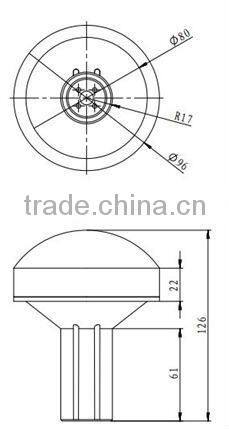

Outline Dimensions

GPS with 37dB LNA Antena

                              Unit:mm

Specifications



1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE



Production Line GPS with 37dB LNA Antena



 Machine and test equipment:

 GPS with 37dB LNA Antena

Design concept



It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.



Environmental Guarantee



Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.







After-sale service



Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).







Other Service



We can produce products in your brand according to your request.







If you need more information about it, please send me inquiry, you can get our reply within one day.
