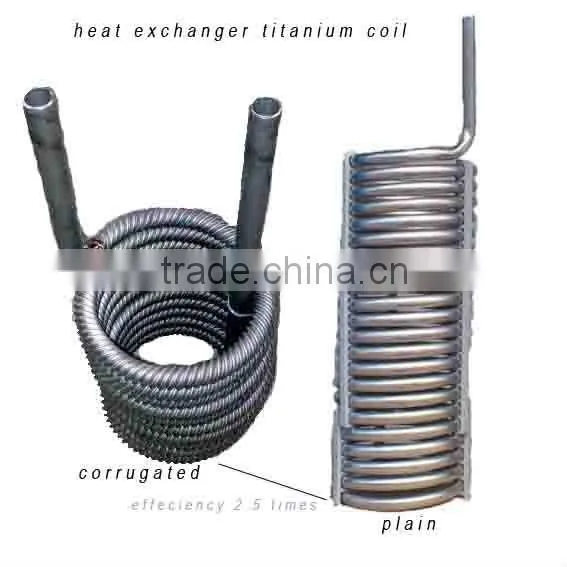

Best Quality Strong Anti-corrosion Corrugated Titanium Tube Coil Can Used for Heat Exchanger Water Storage as Cooling or Heating

US$ 56.5 - 62.5 MOQ: 100 Kilograms

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HXY

Model Number:

TB-10

Foshan Hengxingye Hardware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HXY

Model Number TB-10

Material titanium

Outer Diameter 16mm---25mm

Length 6m

Standard TA1

Application heating cooling coil

Technique Seamless

Grade titanium

Wall Thickness 0.6mm--1.0mm

Inside Diameter 15.4--24.4mm

Specifications

1.green material with RoHs Certification
2.very strict testing for water or gas leakage
rrugated tube for strong power

corrugated tube specification

product detail
item	heat exchanger coil-titanium corrugated tube
tube type	titanium seamless tube
diameter	12.7mm----25mm
power	can be the 2.5 times of normal titanium tube
function	small vol but high effeciency
using	chiller heat exchanger /water box /compressor/heat pump

Remark:1HP=3.5KW 1Mpa=10bar

certification:RoHs

refrigerant:R22 /R134/R407/R41OA .

Product detail
inside: titanium coil
titanium tube material	seamless tube--TA1
titanium tube diameter	12.7mm----30mm(normal use)
titanium tube thickness	0.55mm----3.0mm(normal use)
outside: PVC case
PVC cover material	enviromental protection
PVC tube diameter	OD110mm----OD400mm
PVC tube thickness	2.7mm----15.3mm
connection
gas inlet and outlet	titanium thread and copper nut/tube
water inlet and outlet	plastic piston
testing/others
water pressure	0.25----1.0Mpa(2.5---10bar)
gas pressure	3.5Mpa
PVC temperature	≤45°C
shell leakage	no
tube leakage	no
pack	0.6mm thick gray sponge
corrosive or not	anti-corrosion
use	pool /heat pump/ air conditioner/chillar etc
