Titanium Gas Heating Coils for Heat Pump With Strong Anti-corrosion

US$ 31 - 984 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HXY

Model Number:

Foshan Hengxingye Hardware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HXY

Model Number TC

Specifications

gas heating coils
1.Titanium Tube bending
2. refrigerate and heat titanium has strong anti-corrosion

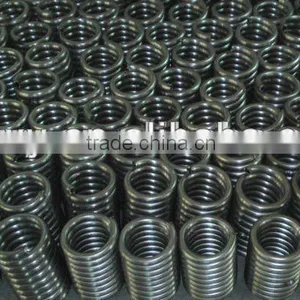

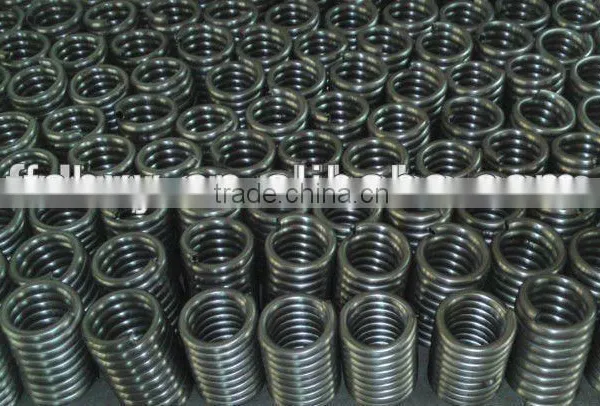

Titanium gas heating coils

1.The use of titanium tubes from bending, strong corrosion resistance.

Chemicals used in electroplating acidic water cooling and heating.

Within the control of steam or chilled water.

So titanium Tube is the best product to refrigerate

2.we used it for doing heat exchanger and cooler. we can design according to your drawing picture.

coaxial titanium heat exchanger
Tube type	seamless titanium tube
inside	19mm plain tube or whorl tube
outside	20mm 25mm 30mm plain tube
thickness	0.55---2.0mm
joint connection	copper nut and titanium thread
Corrosion or not	strong anti-corrosion
using	more used for the vessel sailling boat A/C

Product detail
inside: titanium coil
titanium tube material	seamless tube
titanium tube diameter	12.7mm----30mm(normal use)
titanium tube thickness	0.55mm----3.0mm(normal use)
outside: PVC case
PVC cover material	enviromental protection
PVC tube diameter	OD110mm----OD400mm
PVC tube thickness	2.7mm----15.3mm
connection
gas inlet and outlet	titanium thread and copper nut/tube
water inlet and outlet	plastic piston
testing/others
water pressure	0.25----1.0Mpa(2.5---10bar)
gas pressure	3.5Mpa
PVC temperature	≤45°C
shell leakage	no
tube leakage	no
pack	0.6mm thick gray sponge
corrosive or not	anti-corrosion
use	pool /heat pump/ air conditioner/chillar etc
