Most popular pet bottle blowing machine made by MIC Machinery
- 10 Set / Sets per Month
- shanghai
- T/T
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Bottle | Plastic Processed: | PET |
Blow Moulding Type: | Stretch Blow Moulding | Automatic: | Yes | Place of Origin: | Jiangsu, China |
Brand Name: | EverTop | Model Number: | ET-1 | Voltage: | 220V/380V |
Power(W): | 11kw | Dimension(L*W*H): | 1450*590*1650(mm) | Weight: | 830kg |
Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Most popular pet bottle blowing machine made by MIC Machinery
Specification:
semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate .
Most popular pet bottle blowing machine made by MIC Machinery
Main parameter:
TYPE | ITEM | UNIT | TECHNICAL DATA |
CONTAINER | Product material |
| PET/PC/PP |
| Container volume | L | ≤2 |
| Theoretical Output | Pcs/hr | 800-1000 for 1L bottle |
| Max. bottle height | mm | 360 |
| Max.bottle diameter | mm | 120 |
| Max.moula plate dimension(LxW) | mm | 340 |
| Max.mould thickness of mould | mm | 200 |
| Clamping force | KN | 80 |
| Mould opening stroke | Mm | 150 |
AIR COMPRESSOR | Working pressure | Mpa | 0.8-1.0 |
| Air compressor for blowing | Mpa | 2.0-3.0 |
MAIN MACHINE ELECRICITY | Power | KW | 10 |
| Voltage/Frequency | V/HZ | 380-240-110/50-60 |
MACHINE SIZE AND WEIGHT | Main machine(LxWxH) | M | 1500×600×1750 |
| Main machine weight | KG | 560 |
| Heater(LxWxH) | M | 1800×630×1380 |
| Heater weight | KG | 270 |
SAFETY | SAFETY INTER-LOCKING DEVICE | Auto-emergency alarm |

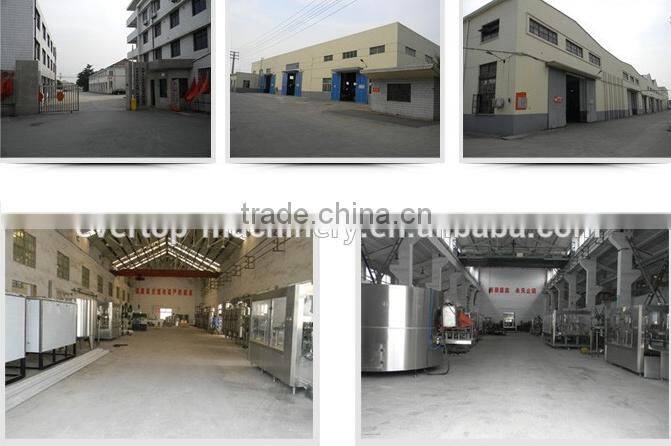

Zhangjiagang Evertop Machinery Co.,Ltd. is located in Sanxing Industrial Zone, Jinfeng Town, the scenic city of Zhangjiagang, Jiangsu Province,which is a specialized beverage packaging enterprise We export to Russia, South Africa, Thailand, Philippines, Pakistan, Malaysia, Brazil, Sudan, Sierra Leone, Egypt, Kenya, Saudi Arabia, Yemen, Oman, the United Arab Emirates, the United States, Canada, and manyother countries, well received by most customers.
We are sincerely providingthe customers the following products:mineral water 3-in-1 filling machine, juice 3-in-1 filling machine, carbonated drink3-in-1 filling machine, automatic blow molding machine, 5 gallon bottle series unit, complete sets of water treatment system, automatic batching, mixingsystem, a variety of sterilization equipment, complete sets of beveragepackaging equipment and other follow-up packaging equipment.
1. The plant layout
To provide customers with pre-project planning workshop, design.
2. Commissioning services
Send experienced engineers and technicians responsible for equipment installation and commissioning, to ensure normal production and customers.
3. Parts
It comes with one year of wearing parts when the device is shipped. In addition, we prepare an adequate equipment spare parts as inventory, customer ever need spare parts repair and maintenance of equipment, can quickly provide.
4. Technical training
To ensure that your technical staff to become familiar with the performance of the equipment, proper operation and maintenance procedures to master the equipment, provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.
Contact Us
- Zhangjiagang Evertop Machinery Co., Ltd.
- Contact nameEvertop Machine
- Phone0086-512-58953998
- AddressSanxing Ind. Zone, Jinfeng Town, Zhangjiagang
