Help CenterThree Roller Mill(1-3 Finess)
Related Products
Specifications
three roller mill(high finess)1, CE & ISO
2, production is 4 time as others
3, more than 20 years experience

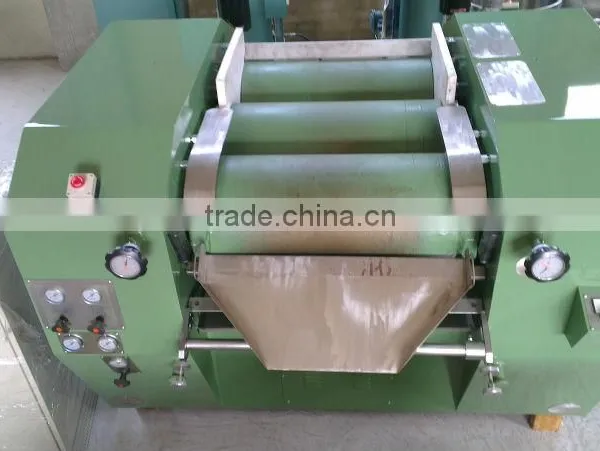

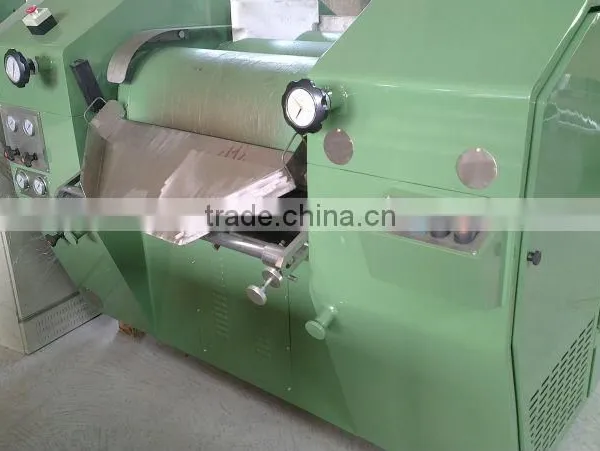

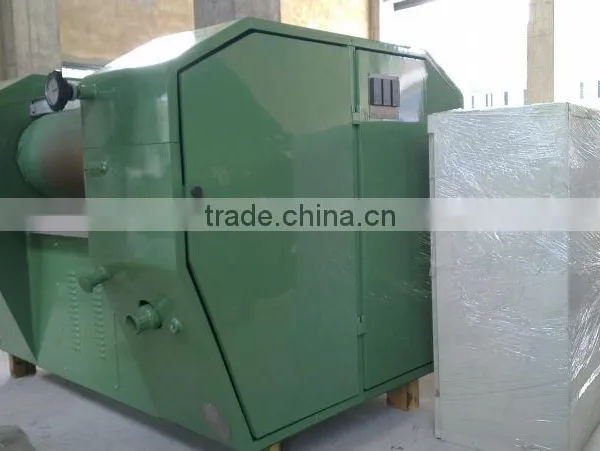

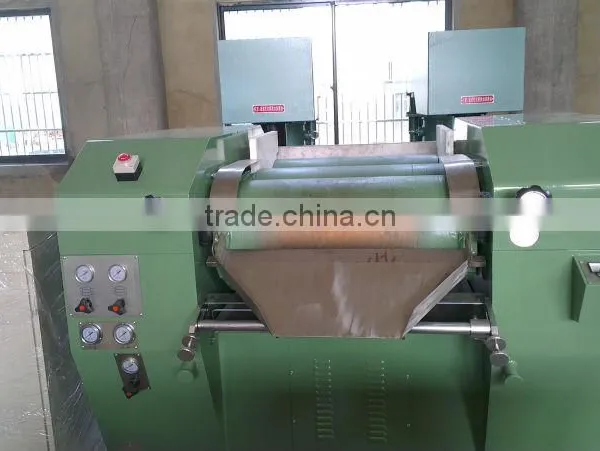

three roller mill(high finess)
Specifications1
1. Suitable for small, middle, large scale productivity.
2. Different configurations as per various technics and capacities.
3. Automatic control through out the material feeding, processing, discharging and packing
4. Automatic quantity measuring, online supervising, computer controlling electromotive valves
Specification2
1.full hydraulic controls
2.for high visicosity paste ,liquid's grinding
3.used field, ink,soap,food industrial
Area: Automatically control pressure in milling cavity ,choose best milling result.
The mechanical sealing and bearing stop is open connected,which resolve the material impact on coupler under high viscosity,so as to make mill work more safety and securely.
Description: The SY400-1300 used for the manufacture of paints and printing inks, artist's colors, coloring crayons, eye makeup, lip stick and skin care products, fine soaps, pigmented coating compounds, plastic pastes, marzipan, chocolate fillings, shellac glazes, processed cheeses, etc
Advantage
- Higher output rates and greater fineness through optimization of overall roller configuration.
- Centrifugally compound cast rollers, with hard surface of great depth.
- Easy and steble operation, more precise and record the producing data.
- Dynamic hydraulic system with optimum setting facilities.
Features
- The welding machine frame structure makes the more steadily
- Very hard and cold molded alloy roller cylinder was used
- The cylinders, gearing wheel and belt pulley are dynamic balance designed, so the machine operates with the lowest noise
| roller diameter | mm | 150 | 200 | 260 | 400 | 400 more length |
| length of roller working surface | mm | 300 | 600 | 650 | 800 | 1000 |
| diatance from discharge hole to ground | mm | 740 | 650 | 680 | 730 | 730 |
| low speed roll | r/min | 26 | 55 | 44 | 32 | 32 |
| medium speed roll | r/min | 80 | 167 | 133 | 148 | 148 |
| fast speed roll | r/min | 0-240 | 0-400 | 0-400 | 0-400 | 0-400 |
| main motor power | kw | 5.5 | 11-15 | 18.5-22 | 30 | 37 |
| pressure of hydraulic system | Mpa | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 |
| pressure power | Kw | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 |
| machine weight | kg | 950 | 1500 | 2400 | 5000 | 5500 |
| overall dimension | mm | 1030x900x1100x650 | 1380x910x1080x700 | 1670x1110x1200x900 | 1980x1550x1350x1100 | 2180x1550x1350x1100 |
Factory and Company:
Working process:
ZILI ROLLERS

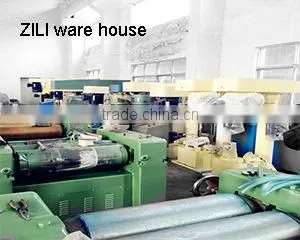

ZILI WAREHOUSE:
carbon or steel stand
offer maintance, installation and traning
warranty:3 years
CE AND MAINLY CUSTOMERS:
