Introduction of Full Automatic Slitting Machine(HY-1400) :

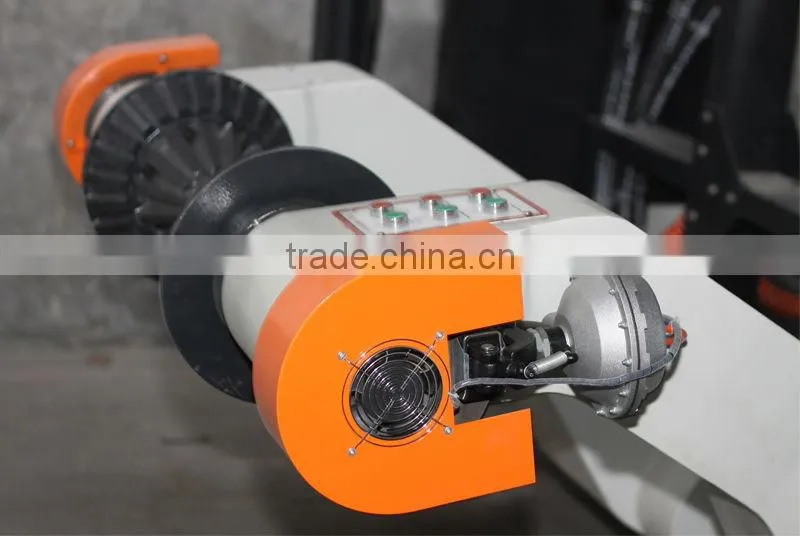

Speed reducer:
Add a cooling fan with butterfly brake, prolong the service life of brake pads. Brake block replacement is more convenient, quick, at the same time, adding the automatic brake proximity switch.
Hydraulic system:
Shaft ten independent research and develop hydraulic control oil circuit board base paper frame, equipped with famous brand magnetic valve, throttle valve, making hydraulic opening pressure is big and the noise is small, easy to operate, fast and save time.
Breaking system
It adopts Japanese SMC’ proportional valve and programmable controlling system of Faket’s PLC to achieve full auto breaking. It resolved the deviation because of the manual operation and makes the paper’s tension stabilized.
Packaging: Wooden Cases
| Model | HY-1400 |
| Paper cutting mode | Upper knife rotates, knife below fixed |
| Fitting paper range | 45-550GSM |
| Max diameter of web | 2000MM |
| Max width of web | 1400MM |
| Paper cutting length | 450-1600MM |
| Paper cutting precision | ±0.3MM |
| Highest metre | 300M/MIN |
| Height of closing paper platform | 1.3M(customized) |
| dimensions | 12M*4M*2.35M |
| Designing weight | 12t |
| Power design | AC380V/220V(50-60HZ) |
