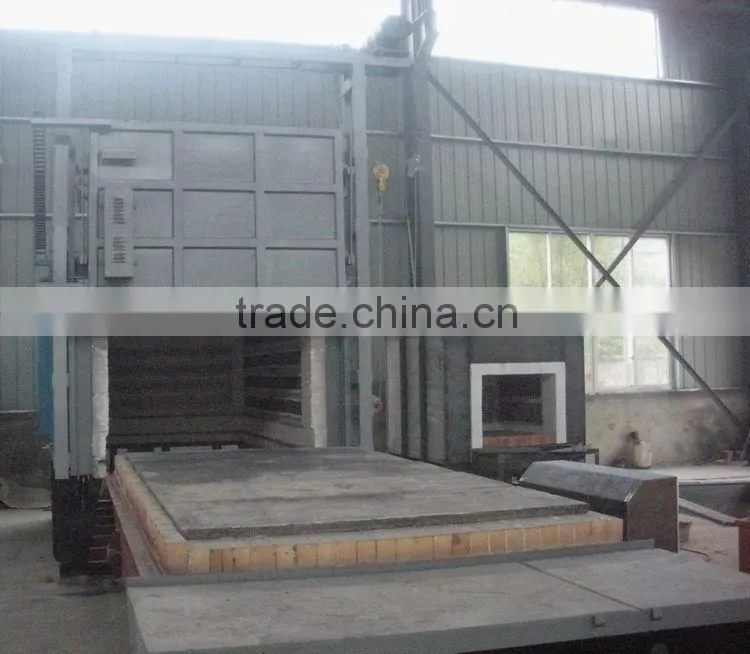

Help Center2000kg Max Load Capacity Electrical Tiltable Bogie Hearth Furnace
Related Products
-
RT2-105-9 Tiltable Bogie Hearth Furnace With Large Chamber SizeUS$ 25,000 - 65,000MOQ: 1 Set -
RT2-105-9 Tiltable Bogie Hearth Heat Treatment Furnace With Large Chamber SizeUS$ 25,000 - 65,000MOQ: 1 Set
-
RT2-105-9 Heat Treatment Tiltable Bogie Hearth FurnaceUS$ 25,000 - 65,000MOQ: 1 Set
-
RT2-105-9 Tiltable Bottom Car Furnace With Max 2000kg Load CapacityUS$ 25,000 - 65,000MOQ: 1 Set
-
High Frequency Electric Metal Melting Induction Furnace With the Capacity of 250KgUS$ 10,000 - 200,000MOQ: 1 Set
It is heat treatment furnace, dealing with metal workpiece in periodicity works.Suitable for large and
medium-sized metal workpiece for quenching, it can also be used to heat treatment in medium
temperature condition.
Max. load capacity |
2000Kg |
Structure of furnace |
The furnace body is rectangular cuboid, welding by channel steel frame and steel plate.Equipped with an electric of bogie and rail on the bottom. |
Insulation materials |
Furnaces shall be lined with adiabatic high purity ceramic fiber felt (High-density block fold); the bogie hearth on the bottom shall be lined with high alumina bricks. |
Furnace door open/close way |
Electric & manual(With the brake function) |
The bogie hearth of top material |
High temperature resistant silicon carbide plate. |
The bottom of bogie hearth furnace |
Use Q235B thick steel plate and skeleton of structural steel. |
Chamber Max. temperature |
950℃ |
Furnace work temperature |
400-900℃ (Arbitrary adjustable) |
furnace temperature uniformity |
≤±10℃ |
Temperature control precision |
±3℃ |
(1). Price terms: FOB QingdaoPort.
(2). Payment Terms:40% deposit by T/T,60% the balance to be paid by T/T before delivery.
(3).Delivery time: 40 working days after the receipt of the prepayment.
(4).Packing: Use 20 ft container shipment.
(5).Warranty: free Warranty 1 year.
