1350 Degree Electric Metal Quenching Furnace with capacity 700kg, Vacuum 4*0.001Pa
Manufacturer Directly Sale, OEM Service is Availabe
700Kg electric metal quenching Furnaces up to 1350.C with vacuum 4*0.001Pa
1.SiC heating element
2.Vacuum:4*0.001Pa
3.Capacity:700Kg
4.700*700*1200mm
Description of Product:

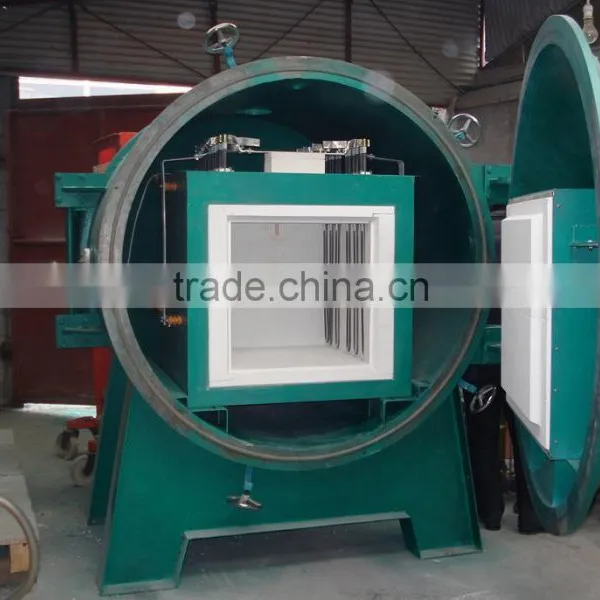

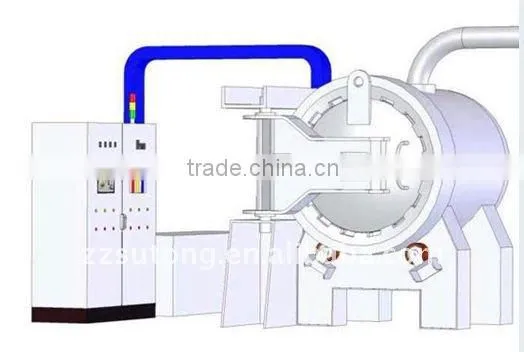

ST-CVTQ series of single chamber high pressure gas quenching furnace consists of furnace body, vacuum system, water cooling system, gas inflation system, gas cooling system, electric control system and furnace outer material car etc. It is used for high pressure gas quenching of materials like high-speed steel, tool & mould steel, high temperature alloy, martensitic stainless steel, titanium alloy ,etc., and also for annealing magnetic material. It has special compacted inner furnace structure, with high-efficiency heat exchanger; it uses inside 360-degree nozzle all around cooling method and the highest gas quenching pressure can reach up to 1MPa. It is configured with optimization designed gas quenching system and electric control system and there is little deformation of components.
Main Specifications and type:
Heating elements |
SiC heater(silicon carbide ) |
Furnace structure |
Double shell with water cooling system |
Furnace temperature uniformity |
±5°C |
Loading Capacity |
50~1500Kg |
Type |
ST-CVTQ-223 |
ST-CVTQ-335 |
ST-CVTQ-447 |
ST-CVTQ-669 |
ST-CVTQ-7712 |
ST-CVTQ-8812 |
ST-CVDQ-9912 |
ST-CVDQ-101015 |
Power |
30Kw |
57Kw |
75Kw |
140Kw |
200Kw |
250Kw |
300Kw |
350Kw |
Loading Capacity |
50Kg |
100Kg |
200Kg |
500Kg |
700Kg |
800Kg |
1000Kg |
1500Kg |
|
Effective heating zone (W*H*L) |
200*200*300mm |
300*300*500mm |
450*400*670mm |
600*600*900mm |
700*700*1200mm |
800*800*1200mm |
900*900*1200mm |
1000*1000*1500mm |
Utmost vacuum degree |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
Highest temperature |
1350°C |
1350°C |
1350°C |
1350°C |
1350°C |
1400°C |
1400°C |
1400°C |
Gas quenching pressure |
2Bar |
2Bar |
2Bar |
2Bar |
2Bar,4Bar,6Bar |
2Bar,4Bar,6Bar |
2Bar,4Bar,6Bar,10Bar |
2Bar,4Bar,6Bar,10Bar |
Furnace temp uniformity |
±5°C |
±5°C |
±5°C |
±5°C |
±5°C |
±5°C |
±5°C |
±5°C |
Pressure increasing rate |
0.65Pa/h |
0.65Pa/h |
0.65Pa/h |
0.65Pa/h |
0.67Pa/h |
0.67Pa/h |
0.68Pa/h |
0.68Pa/h |
We can design and produce according to the customer's' specific requirements of technical parameters.
Applications:
1.Crystallize;
2.Sintering or Roasting or Forging or calcining;
3.Ashing;
4.Heat treating or Preheating;
5.Quench or Hardening or Austemper
6.Annealing or Tempering or Normalizing
lting or smelting
8.Synthesis and degradation or pyrolysis or decomposing
Warranty:
Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
