Help CenterST High Pressure Gas Cooling Molde Steel Heat Treatment Furnaces
Related Products
-
1300 Degree C Heat Treatment Annealing Furnace With 900*900*1200mmUS$ 6,300 - 12,000MOQ: 1 Set -
ST-1300CVA Series Vacuum Annealing FurnaceUS$ 1,200 - 6,600MOQ: 1 Set
-
1300C Single Chamber High Pressure Gas Quening Furnace300*300*500mmUS$ 6,800 - 13,000MOQ: 1 Set
-
ST-CVDQ High Vacuum Gas Cooling Mold Steel Quenching FurnaceUS$ 13,400 - 26,900MOQ: 1 Set
-
ST-1300C Horizontal Type Electric Annealing FurnaceUS$ 1,500 - 18,000MOQ: 1 Set

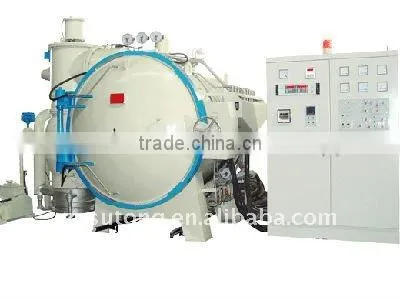

ST Gas quenching furnace used for high pressure gas quenching of materials
1.SiC heater
2.Ultimate vacuum degree: about 2Pa
3.Capacity:50~1500kg
ST Gas quenching furnace used for high pressure gas quenching of materials consists of furnace body, vacuum system, water cooling system, gas inflation system, gas cooling system, electric control system and furnace outer material car etc. It is used for high pressure gas quenching of materials like high-speed steel, tool & mould steel, high temperature alloy, martensitic stainless steel, titanium alloy ,etc., and also for annealing magnetic material. It has special compacted inner furnace structure, with high-efficiency heat exchanger; it uses inside 360-degree nozzle all around cooling method and the highest gas quenching pressure can reach up to 1MPa. It is configured with optimization designed gas quenching system and electric control system and there is little deformation of components
Main speicification:
Type |
ST-CVDQ -223 |
ST-CVDQ -335 |
ST-CVDQ -447 |
ST-CVDQ -669 |
ST-CVDQ -7712 |
ST-CVDQ -8812 |
ST-CVDQ -9912 |
ST-CVDQ -101015 |
Power |
30Kw |
57Kw |
75Kw |
140Kw |
200Kw |
250Kw |
300Kw |
350Kw |
Loading Capacity |
50Kg |
100Kg |
200Kg |
500Kg |
700Kg |
800Kg |
1000Kg |
1500Kg |
|
Effective heating zone (W*H*L) |
200*200*300mm |
300*300*500mm |
450*400*670mm |
600*600*900mm |
700*700*1200mm |
800*800*1200mm |
900*900*1200mm |
1000*1000*1500mm |
Utmost vacuum degree |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
2*0.1Pa 4*0.001Pa |
Highest temperature |
1350°C |
1350°C |
1350°C |
1350°C |
1350°C |
1400°C |
1400°C |
1400°C |
Gas quenching pressure |
2Bar |
2Bar |
2Bar |
2Bar |
2,4,6Bar |
2,4,6Bar |
2,4, 6,10Bar |
2,4, 6,10Bar |
Furnace temp uniformity |
±5°C |
±5°C |
±5°C |
±5°C |
±5°C |
±5°C |
±5°C |
±5°C |
Pressure increasing rate |
0.65Pa/h |
0.65Pa/h |
0.65Pa/h |
0.65Pa/h |
0.67Pa/h |
0.67Pa/h |
0.68Pa/h |
0.68Pa/h |
Note:
We can design and produce according to the users' specific requirements of technical parameters.
Application:
1.Vacuum Gas Quenching: tool steel, alloy steel, stainless steel, copper alloy etc.
1.Vacuum Brazing: brazing of nickel, copper and silver based material
Spare Parts:
Rapid fuse PCS 1
Pipe Seal SETS 1
Vacuum Grease PCS 1
Insulating Ceramic SETS 1
Heater SETS 1
Vacuum Seal SETS 1
Pirani Gauge PCS 2
Thermocouple PCS 1
