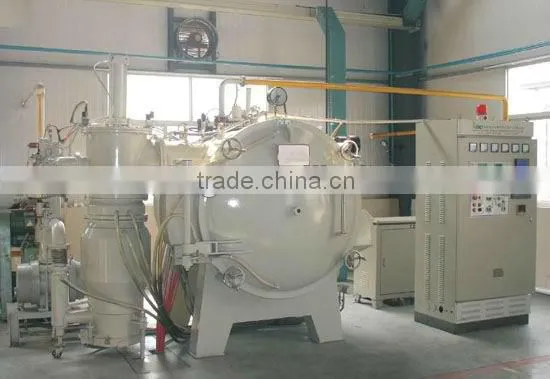

ST-CVDQ High Vacuum Gas Cooling Mold Steel Quenching Furnace
1.Heating element : Graphite tube
2.Vacuum:4.0×0.001Pa
3.Capacity:500Kg
4.Chamber size : 600*600*900mm
Vacuum Gas Cooling Mold Steel Quenching Furnace is used for heat treatment of High speed steel, alloy Tool and mould steel, Electrical magnetic materials, Non-ferrous metal, Stainless steel,Bright annealed of products, etc. It can also be used for solid solution ageing,vacuum brazing and magnetic materials' sintering.
Main specifications:
Working Temperature |
800~1300°C |
Maximum Temperature |
1300°C |
Heating elements |
Graphite tube |
Furnace structure |
Double shell with gas cooling |
Utmost vacuum degree |
4.0*0.001Pa |
Pressure increasing rate |
0.6Pa/h |
Furnace temperature uniformity |
±5°C |
Loading Capacity |
500kg |
Main product models
Type |
Effective heating zone (W*H*L) |
Loading Capacity |
CVA-446 |
400*400*600mm |
200Kg |
CVA-557 |
500*500*700mm |
300Kg |
CVA-669 |
600*600*900mm |
500Kg |
CVA-7712 |
700*700*1200mm |
700Kg |
CVA-8812 |
800*800*1200mm |
800Kg |
CVA-9912 |
900*900*1200mm |
1000Kg |
2.Matching supply with furnace :
Items |
QTY |
ST-CVDQ8812 single chamber gas cooling vacuum furnace |
1 set |
Vacuum pump unit |
1 set |
Electrical cabinet |
1 set |
Charging car |
1set |
Charging tray |
1 piece |
Gas holder |
1 set |
Note:
We can design and produce according to the users' specific requirements of technical parameters.
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
