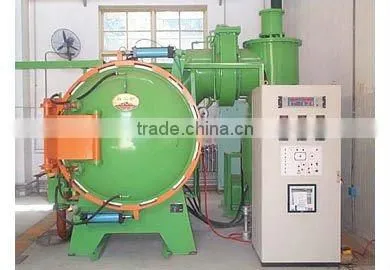

800*800*1200mm 1300C Horizontal Type Annealing Furnace
1.SiC heating element
2.Vacuum:4.0×0.001Pa
3.Capacity:800Kg
4.800*800*1200mm
800*800*1200mm 1300C Horizontal Type Annealing Furnace is used for in High speed steel, alloy Tool and mould steel, Electrical magnetic materials, Non-ferrous metal, Stainless steel,Bright annealed of products, etc. It can also be used for solid solution ageing,vacuum brazing and magnetic materials' sintering.
Main specifications:
Working Temperature |
800~1300°C |
Maximum Temperature |
1300°C |
Heating elements |
SiC heater(silicon carbide ) |
Furnace structure |
Double shell with water cooling |
Utmost vacuum degree |
4.0*0.001Pa |
Pressure increasing rate |
0.6Pa/h |
Furnace temperature uniformity |
±5°C |
Loading Capacity |
200~1000Kg |
Main product models:
Type |
Effective heating zone (W*H*L) |
Loading Capacity |
CVA-446 |
400*400*600mm |
200Kg |
CVA-557 |
500*500*700mm |
300Kg |
CVA-669 |
600*600*900mm |
500Kg |
CVA-7712 |
700*700*1200mm |
700Kg |
CVA-8812 |
800*800*1200mm |
800Kg |
CVA-9912 |
900*900*1200mm |
1000Kg |
Note:
We can design and produce according to the users' specific requirements of technical parameters.
Applications:
1.Gravimetric analysis;
2.Quantitative analysis;
3.Sintering or Roasting or Forging or calcining;
4.Heat treating or Preheating;
5.Quenching or Hardening or Austempering
6.Annealing or Tempering or Normalizing
7.Stress Relieving
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
