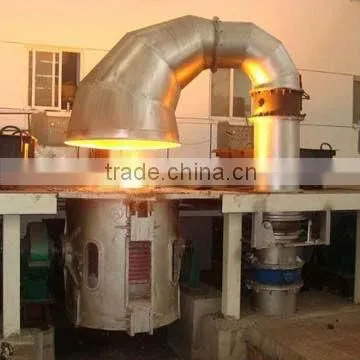

Saving Energy 1650.C 1MT Volume Iron Melting Induction Furnace
Product description of the high-capacity steel melting induction furnace :
1.Applications: used for melting stainless steel, alloy steel, carbon steel.
2.Features: fast speed of melting, saving energy, less burnt loss, pure molten liquid.
3.The aluminum frame is adopted to small capacity melting furnace with reasonable structure and small capacity, convenient installation and simple maintenance, low maintenance cost.

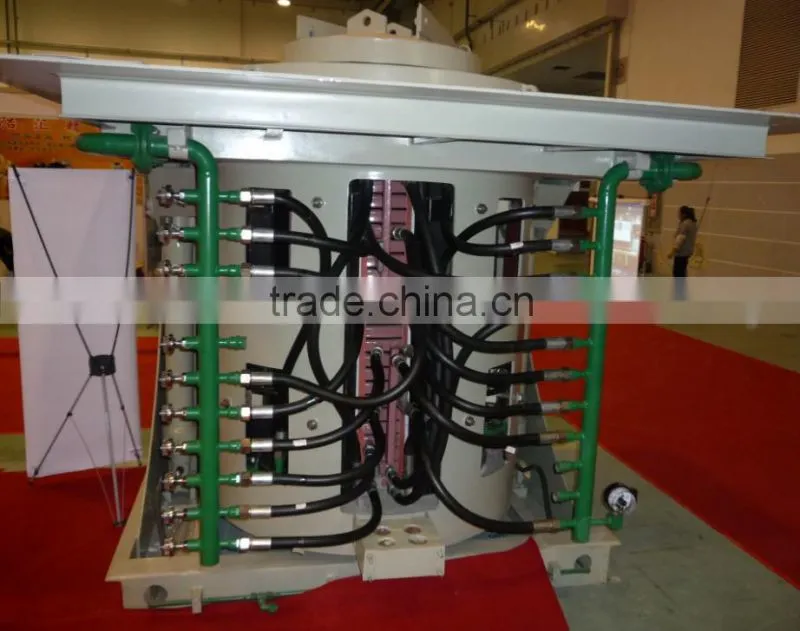

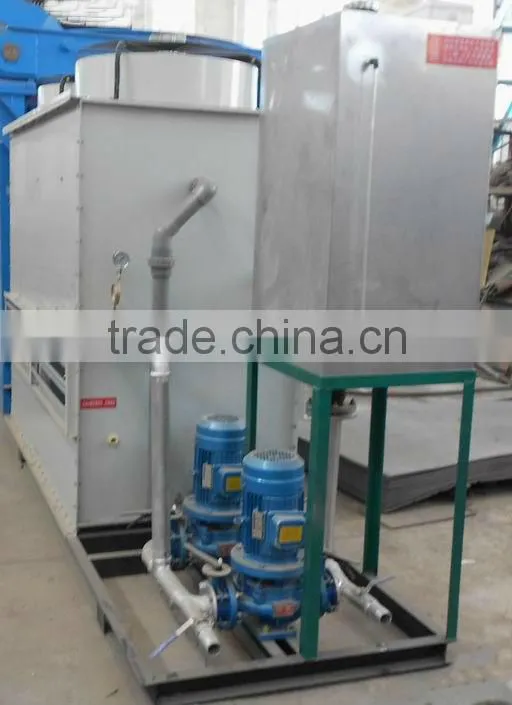

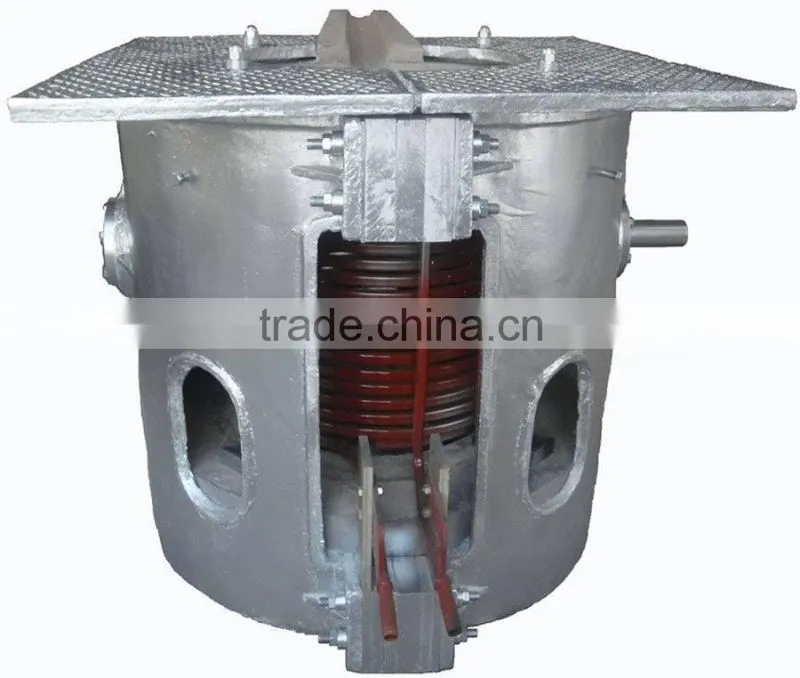

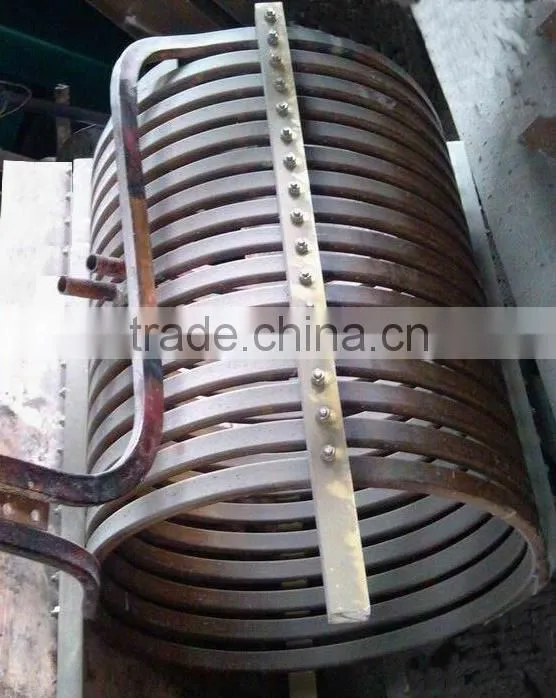

4. The induction coils of fast melting furnace are double paralleled winded with prolonged coil to make sure the half capacity of furnace molten liquid can be heated by full load power output which will improve overall efficiency. Cooling system is equipped along with the induction coil prolong the lining life.
5.The inner wall of induction coil of large capacity electric furnace is cast with imported high temperature resistant insulation material to prevent of furnace lining leakage.
The main technical parameter of steel melting induction furnace :
Type |
Capacity (t) |
Medium frequency Power (kw) |
Input voltage (V) |
Frequency (Hz) |
Melting rate (t/h) |
Power consumption(KWh/t) |
Transformer rated capacity(KVA) |
GW-0.25 |
0.25 |
200 |
380 |
1000 |
0.3 |
700 |
250 |
GW-0.35 |
0.35 |
250 |
380 |
1000 |
0.42 |
700 |
315 |
GW-0.5 |
0.5 |
350 |
380 |
1000 |
0.55 |
670 |
400 |
GW-0.75 |
0.75 |
450 |
380 |
1000 |
0.82 |
670 |
500 |
GW-1 |
1 |
700 |
380 |
1000 |
1.2 |
670 |
800 |
GW-1.5 |
1.5 |
900 |
660 |
500 |
1.8 |
610 |
1000 |
GW-2 |
2 |
1100 |
660 |
500 |
2.5 |
610 |
1250 |
GW-3 |
3 |
2000 |
660 |
500 |
3.6 |
610 |
2000 |
GW-5 |
5 |
3000 |
950 |
300 |
5.5 |
560 |
3150 |
GW-10 |
10 |
4000 |
950 |
300 |
12 |
560 |
4000 |
GW-15 |
15 |
5000 |
950 |
300 |
18 |
560 |
6300 |

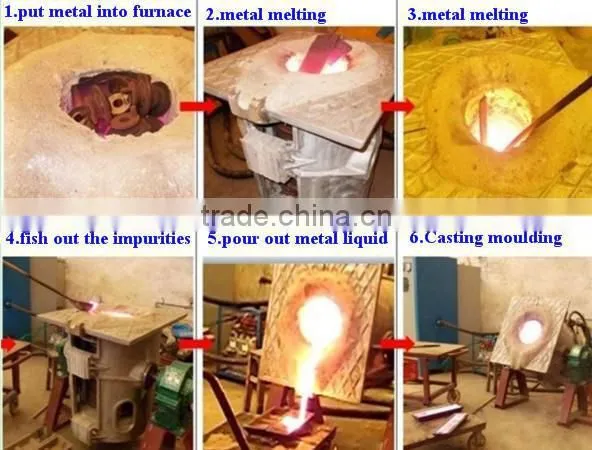

Operating principle is introduced as follows:
the transportation of our product:
About the delivery:
15 working days within 15 days after receiving the remittance
Normal packing:
Thick plywood wooden cases Thick plywood wooden case or container
Plastic paper inside, Polyfoam filled, Wooden box outside.
About the warranty:
We provide 12 month warranty for free,we have maintenance center overseas,we can also send our engineer to your address if any needs.
