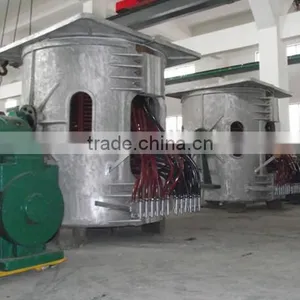

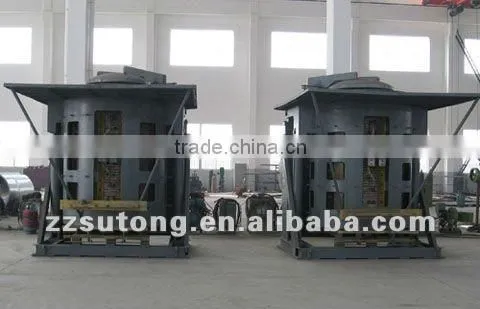

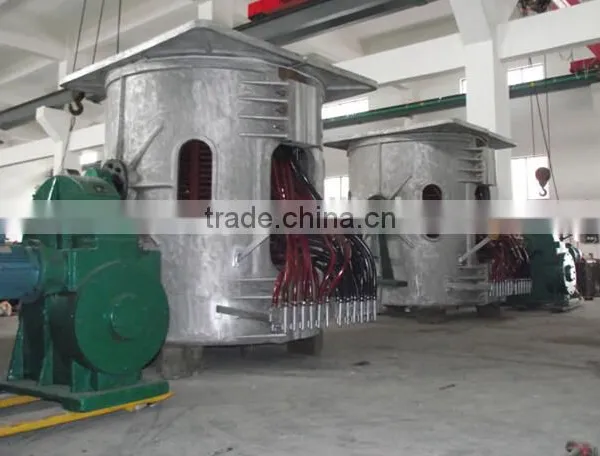

GW-2 steel scrap melting furnace for metal casting foundry brief introduction :

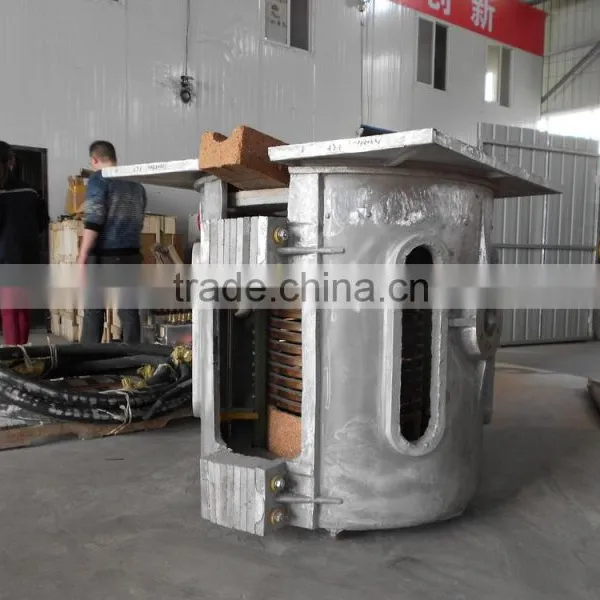

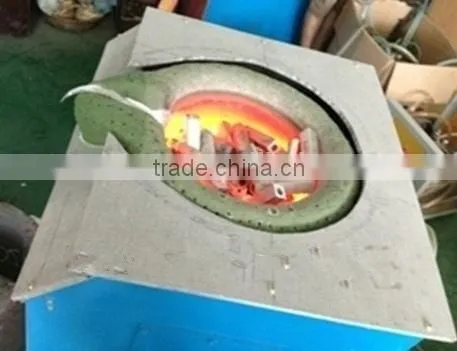

1.The aluminum frame is adopted to small capacity melting furnace with reasonable structure and small capacity, convenient installation and simple maintenance, low maintenance cost.
2. The induction coils of fast melting furnace are double paralleled winded with prolonged coil to make sure the half capacity of furnace molten liquid can be heated by full load power output which will improve overall efficiency. Cooling system is equipped along with the induction coil prolong the lining life.
3.The inner wall of induction coil of large capacity electric furnace is cast with imported high temperature resistant insulation material to prevent of furnace lining leakage.

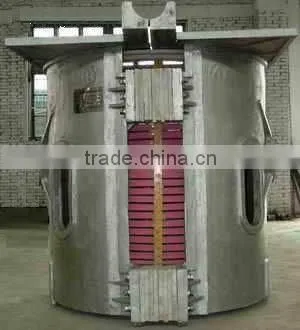

Furnace body :
Capacitor :

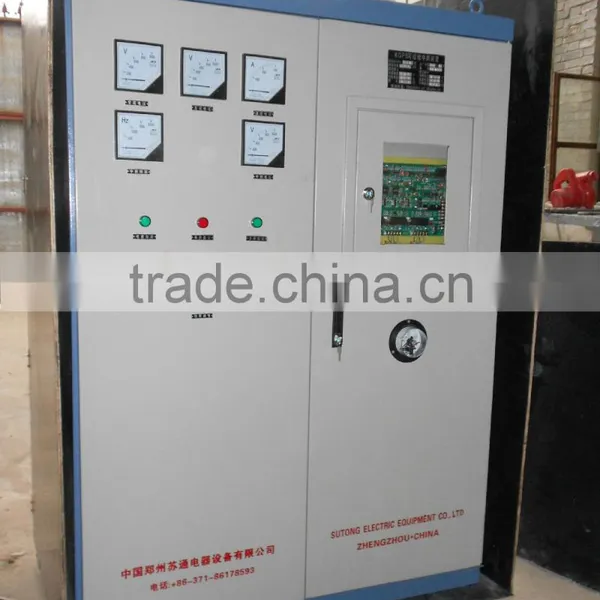

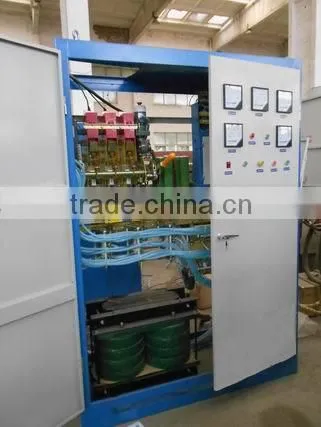

Power control cabinet :

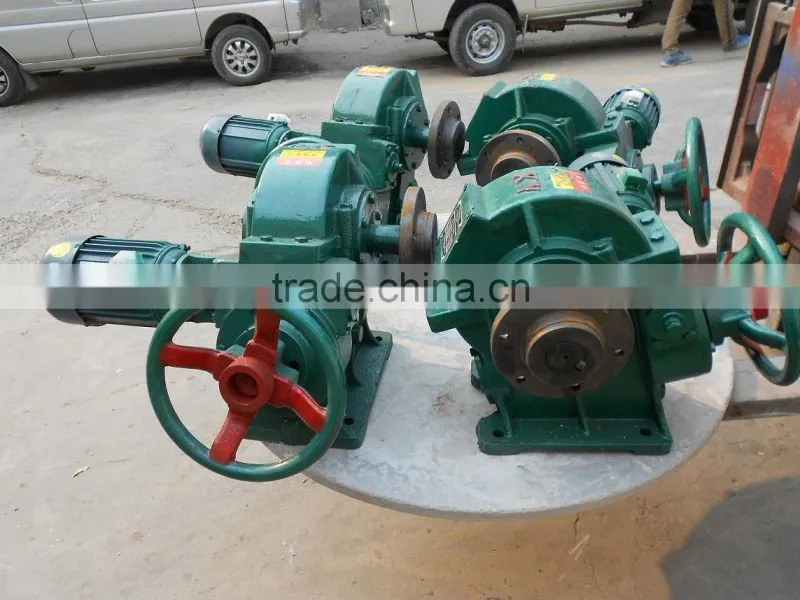

Pouring system:
The function of melting furnace :
The characteres of melting furnace:
Model |
Loading capacity(kg) |
IF power (kw) |
supply voltage(V) |
IF-FRE (Hz) |
Melting Rate(kg/h) |
Power consumption (KWh/kg) |
Rated power of transformer(KVA) |
GW-0.05 |
50 |
45 |
380/400 |
1000 |
45 |
0.56 |
63 |
GW-0.1 |
100 |
85 |
380/400 |
1000 |
85 |
0.56 |
100 |
GW-0.15 |
150 |
135 |
380/400 |
1000 |
125 |
0.55 |
160 |
GW-0.25 |
250 |
200 |
380/400 |
1000 |
200 |
0.55 |
250 |
GW-0.35 |
350 |
250 |
380/400 |
1000 |
300 |
0.67 |
315 |
GW-0.5 |
500 |
350 |
380/400 |
1000 |
350 |
0.67 |
400 |
GW-0.75 |
750 |
450 |
380/400 |
1000 |
500 |
0.67 |
500 |
GW-1 |
1000 |
700 |
380/400 |
1000 |
800 |
0.67 |
800 |
GW-1.5 |
1500 |
900 |
660 |
500 |
1200 |
0.61 |
1000 |
GW-2 |
2000 |
1100 |
660 |
500 |
1600 |
0.61 |
1250 |
GW-3 |
3000 |
1800 |
660 |
500 |
2400 |
0.61 |
2000 |
GW-4 |
4000 |
2300 |
660 |
500 |
3200 |
0.6 |
2500 |
GW-5 |
5000 |
3000 |
950 |
300 |
4500 |
0.6 |
3150 |
GW-6 |
6000 |
3300 |
950 |
300 |
5400 |
0.6 |
3500 |
GW-10 |
10000 |
3900 |
950 |
300 |
9000 |
0.56 |
4000 |
GW-15 |
15000 |
5000 |
950 |
300 |
13500 |
0.56 |
6300 |
GW-20 |
20000 |
8000 |
1000 |
200 |
18000 |
0.5 |
8000 |
For more information , pls email to us , more detailed information will be supplied to you .
Classic quality , Classic service !!!
"Vera Zuo" is waiting for your order.
Warranty :1years!!
Delivery: fast !
