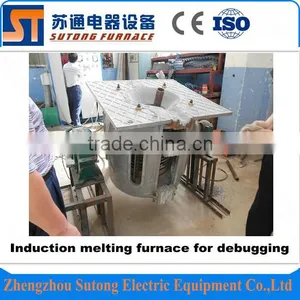

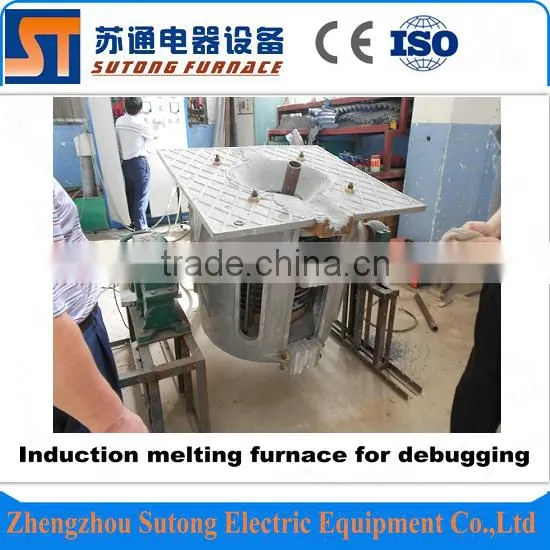

Factory price 150kg Medium frequency electric iron induction melting heating furnace
150kg electric medium frequency iron melting furnace introduction:
1.We can offer you the induction melting furnace capacity from 0-40t
2.It can be customised according to your requirement
3.At the same time ,we can supply you OEM service .
150kg electric medium frequency iron melting furnace usage:
This intermediate frequency induction furnace used for melting ferrous metal,non-ferrous metal such
as copper,aluminum,etc.It is used for bending pipe,quenching and all kinds of metal bar's diathermy.
150kg electric medium frequency iron melting furnace parameters :
| Product name | 150kg electric iron melting furnace |
| Rated IF power | 160KW |
| Into line voltage | 380V |
| Furnace frequency | 1000Hz |
| Melting rate | 0.2T/H |
| Power consumption | 680KWH/T |
| Water cycle flow | 5T/H |
| Induction coil voltage | 1000V |
| Rated temperature | 1650C |
150kg electric medium frequency iron melting furnace including :

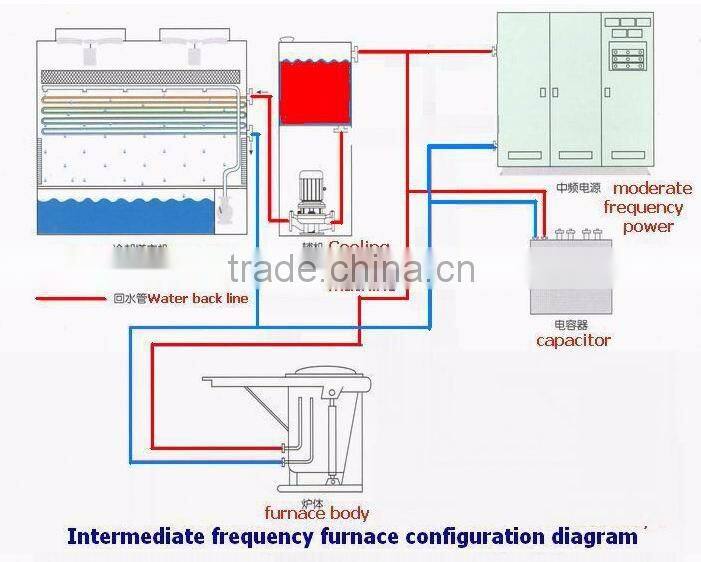

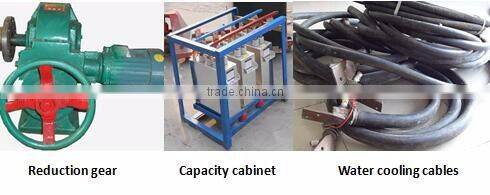

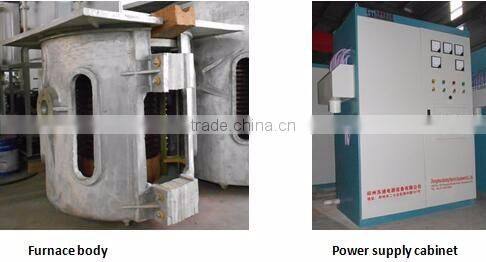

This equipment including:furnace body,power supply,capacitor ,reduction gear,water-cooling cables ,

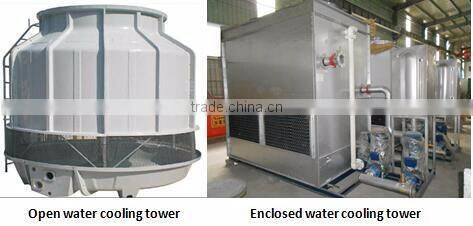

We also can offer you open water cooling tower and enclosed water cooling tower .if you need .
150kg electric medium frequency iron melting furnace advantages:
A.Easy operation:
A full time operator specially for power supply isn't needed.There is only one switch for turning on or
off and one power adjustment knob.After started the only thing need to do is rotating power adjustment
knob to largest location,others are controlled by the device .
B.Safety protection functions
1.The main circuit and short circuit protection.
2.SCR overvoltage protection
3.Main circuit phase fault protection
4.The main circuit phase loss protection
5.Low water pressure protection
6.SCR overcurrent protection
C.Highly reliable electrical control board
In the operation,the 3-phase current is balanced,Due to the advanced design,3-phase power supply's
sequence could be connected randomly.Moreover there is no limit to connect to capacitor cabinet and
furnace.All these works can be judged to be adapted automatically by itself.
It makes the installation and maintenance very easily .
Customer visiting our factory :
The supply of technical information:
1.Middle Frequency Furnace Operation manual
2.Middle Frequency Furnace Series Drawing
3.Middle Frequency Furnace Foundation drawing
4.Induction melting furnace catalogue
5.Electrical control Schematic drawing
Technical Support and after sale service
1.Installation and training services on-site will be provided according to customers' requirement
2.Prompt technical consultation and support will be offered.
3.Provide consumable parts with favorable price
4.A whole year warranty and lifetime maintenance
Quality control of iron induction melting furnace
To ensure that customers use our induction furnace with no worries, hereby we warrant:
1. We strictly select good material to ensure the reliable quality.
2. Not only in the selection of materials,but also in every production procedures
3. The Technical and specialized support from us will be available.
4. The upgraded products information will be timely supplied.
