Home > Products > Constant Current Plastic Serie > Dimmable Constant current LED driver for 300mA 12W

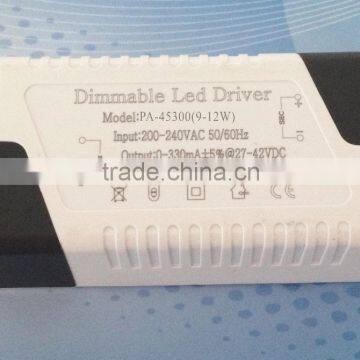

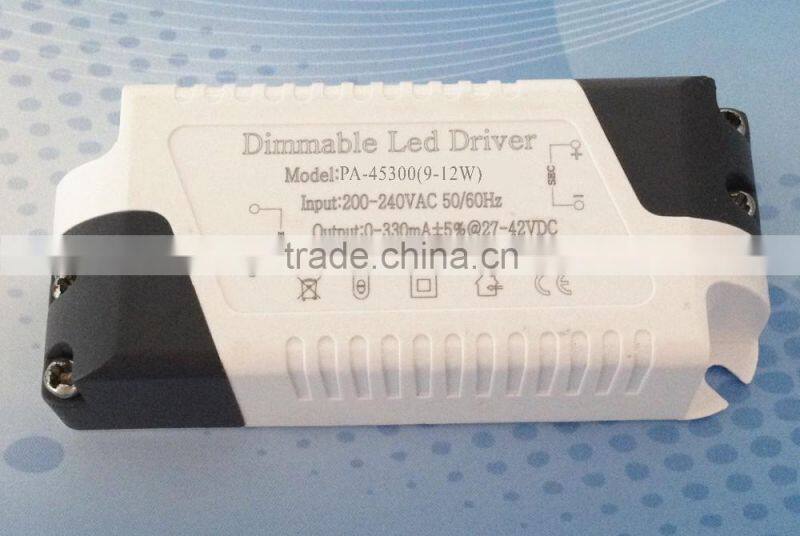

Dimmable Constant current LED driver for 300mA 12W
- 300000 Piece / Pieces per Month
- Guangzhou ShenZhen ZhuHai
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | PT Power | Model Number: | PA-45300 |
Output Power: | Other, 9-12W | Output Type: | Single | Input Voltage: | Other, AC200-240V |
Output Voltage: | DC27-42V | Output Frequency: | 50/60Hz | Output Current: | 300mA±5% |
Product Description
- 1. Model: 9-12W LED driver constant current model
- 2. Average life span: 50000hours
- 3. Waterproof level: IP20 level
- 4. Transform efficiency: more than 88%
- 5. Enter the time withstand 300VAC surge for 5 seconds.
- 6. The Voltage design (Voltage current mode).
- 7. Certification: CE
- 8. Warranty: 3 years
- 9.The use of the AC input.
- 10.Characteristics: high efficiency, low consumption, energy saving , short circuit; overload, over voltage protection, heat protection. Suitable for LED lighting and moving sign applications.

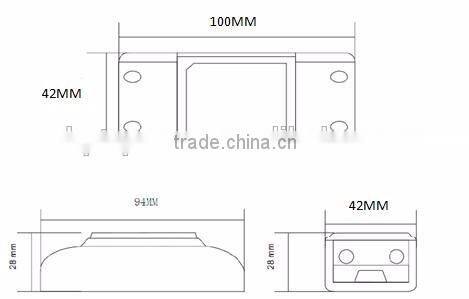

Outer packing (unit:mm)
1.Carton size: 32.5*28.5*21cm.
2.Qty: 100pcs packed in one carton.
3.Carton sealing was "H" shaped sealing.
4.The net weight of packing: 7.5kg.
Warmly Reminder | ||||||||
1.Try to avoid the minefields, high-pressure area to install; | ||||||||
2.Ensure that the correct connection, in order to avoid short-circuit damage to components and trigger fires; | ||||||||
3.Connect the power supply is installed in a well ventilated place to ensure appropriate environmental temperature; | ||||||||
4.Prohibit live wiring, check to confirm wiring is correct, check the no short-circuit, then power; | ||||||||
5. If any problem occurs, do not make unauthorized repairs. If you have questions, please contact the supplier. |

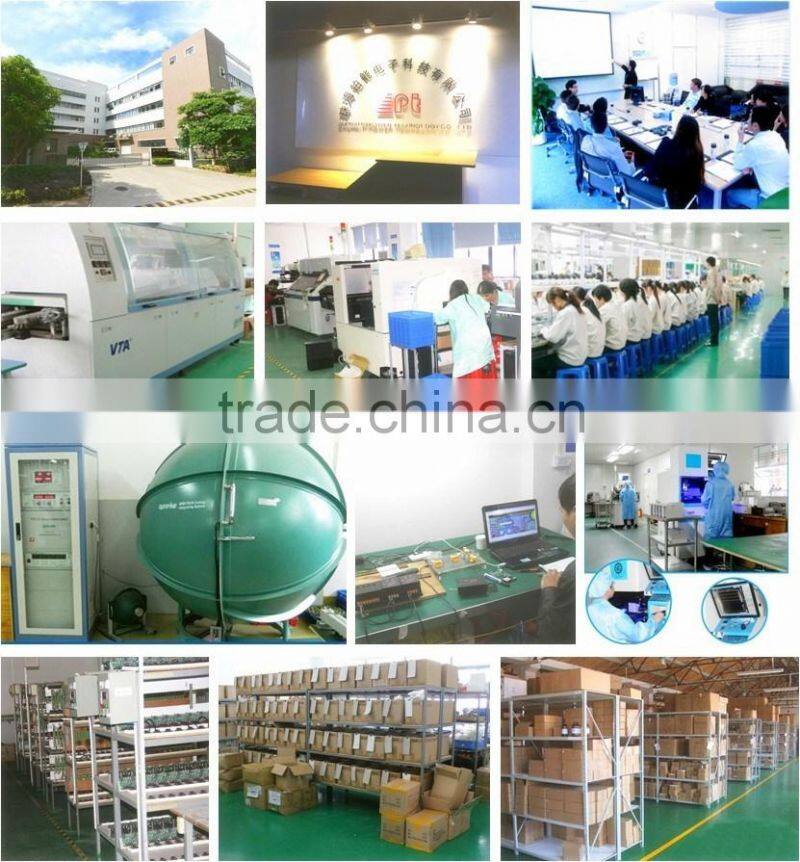

Founded in 2004, Zhuhai PT Power Technology Co,. Ltd is committed to manufacturing LED switching power supplies and LED drivers, which are mainly designed with constant voltage and constant current models. Included Waterproof series, Non-Waterproof series and Rainproof series, Dimmable series, etc. Our products have been used for LED street light, LED panel light, LED strips, LED modules, LED flood light, and LED down light, etc. During the passed decade and more, we have expanded our business, and have experienced professionally in manufacturing different types of LED switching power supplies and LED drivers from 6W to 480W. All of our products were met with a great satisfaction among our customers. We provide high quality products for very suitable prices. We are pleased to get your inquiry and we will come back to you ASAP. For further details, please log on our website () or visit our factory with face-to face meeting. Thank you!
1. How about the delivery time of products?
A: sample 3-7 days, bulk orders for more than 5 days.
2.Whether to accept small orders or not?
A: Yes, the minimum order quantity is more than 20pcs.
3. After sales service?
A: Provide two years of quality warranty.
4. Reply to the buyer's inquiries and provide timely quotation? How long?
A: working hours are very timely
(8.30 a.m. - 12:00 p.m.: 1.30 - 5:30)
5.Payment methods?
A: payment to delivery (30% deposit).L/C, T/T
6.Whether to provide OEM/ODM services? OEM/ODM orders / projects to complete the required time?
A: You can provide.
7.What are the certifications?
A:CCC, CE, ROHS, TUV, FC, SAA and other certification.
