Hot sale 1200C Electric Laboratory vacuum tube furnace use high quality quartz tube
1200C Laboratory vacuum tube furnace introduction:
1.We can supply you laboratory vacuum tube furnace max temperature from 1200C to 1700C.
2.The chamber size from Dia 40*300mm to 80*500mm,it also can be customised.
3.At the same time,We can offer you the OEM service .
1200C Laboratory vacuum tube furnace features:
a). 1200C series tube muffle furnace,heating element embedded in the chamber wall.When heating,it can
ensure uniform temperature in the furnace.
b). Tube furnace chamber is using advanced lightweight Alumina material molding, the weight reduce 40%
compared with others .Heat preservation effect is good,temperature increase speed increased fast.
c). Use double deck ventilation cooling structure, muffle furnace work in high temperature, and the furnace
shell surface keep low temperature, avoid scald the operating personnel, safety is greatly increased.

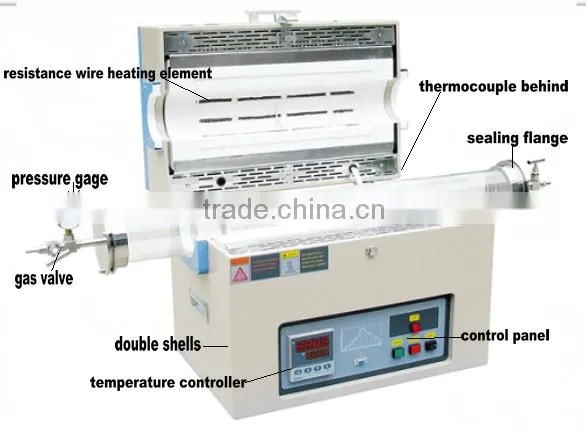

1200C Laboratory vacuum tube furnace structure:

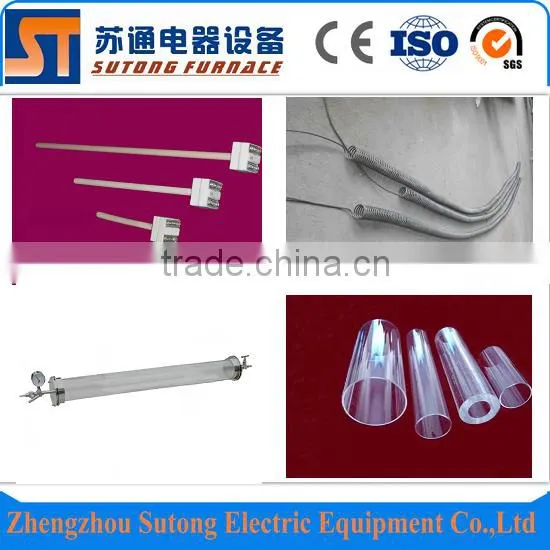

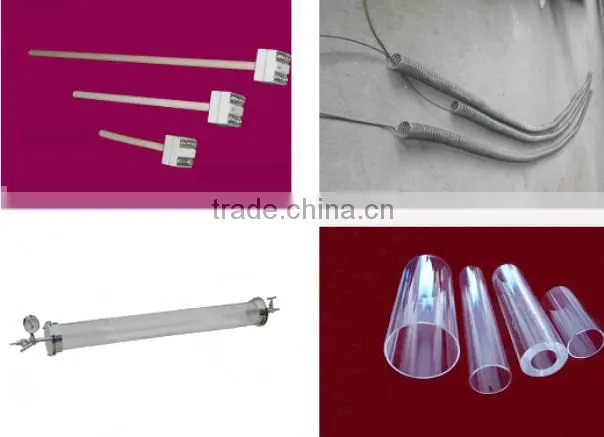

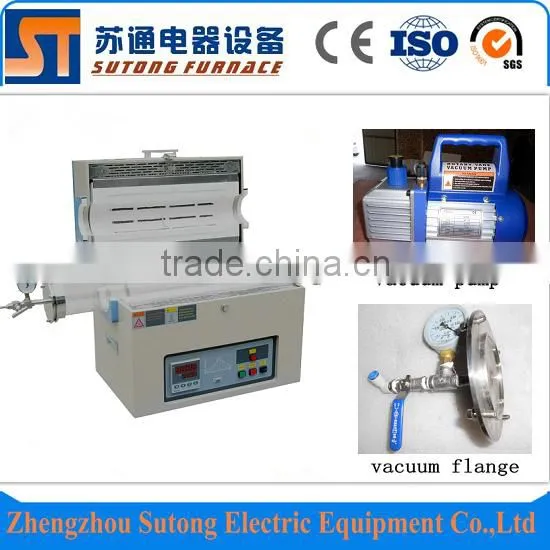

1200C Laboratory vacuum tube furnace standard accessory:
Tube plug 4pcs,thermocouple 1pc,quartz tube 1pc,vacuum pump 1set,sealing flange 1set,vacuum gauge 1pc
1200C Laboratory vacuum tube furnace applications:
ST-1200RG series tube muffle furnace mainly used in chemical analysis, physical decomposition and synthesis
superhard materials(such as ceramic),Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes,medical and health,petroleum chemical industry,mining enterprise,quality and technology supervision agencies, and other units laboratory, laboratory can use such equipment.
1200C Laboratory vacuum tube furnace parameters:
| Product name and model | ST-1200RG-1 Quartz Tube Furnace |
| Heating tube size(OD×L) | Φ 50 x300 mm (2.0 "x12") |
| Chamber insulation materials | lightweight aluminum oxide Ceramic fiber |
| Maximum Temperature | 1200°C (Working time Not more than 3 hours.) |
| Working Temperature | 400-1100°C (justierbar, continuously Work) |
| Temperature controller way | 30 segments programmable and PID auto control |
| Heating Rate | 1--15°C/min (justierbar) |
| Temperature accuracy | +/-1°c |
| Sensor of measuring Temperature | K type thermocouple |
| Heating elements | Fe/Cr/Al Alloy resistance wire |
| Ultimate vacuum | 0.1MPa |
| Vacuum pump specifications Model | TW-0.5A;pnmping rate:0.5L/s;Power:120W |
| Furnace shell structure | Double ventilation cooling structure |
| Cooling way | Fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110-240 V 50/60Hz (User Choose any) |
| Rated power | 2.5KW |
1200C series Laboratory vacuum tube furnace parameters :
| model | Heating zone |
Work power | Vacuum pump specifications |
| ST-1200RG-1 | Φ50x300 mm |
AC, 1-phase, 110-240V, 50/60HZ. |
TW-0.5A;0.5L/s;120W;110/220V |
| ST-1200RG-2 | Φ50x400 mm | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-3 | Φ60x300 mm | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-4 | Φ60x400 mm | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-5 | Φ80x300 mm | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-6 | Φ80x400 mm | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-7 | Φ100x400 mm | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-8 | Φ150x400 mm | TW-1A;1L/s;120W;110/220V | |
| ST-1200RG-9 | Φ200x400 mm | TW-1A;1L/s;120W;110/220V | |
| ST-1200RG-10 | Φ250x400 mm) | TW-1A;1L/s;120W;110/220V |
Any specific requirements,please inform us,we can design for you specially.

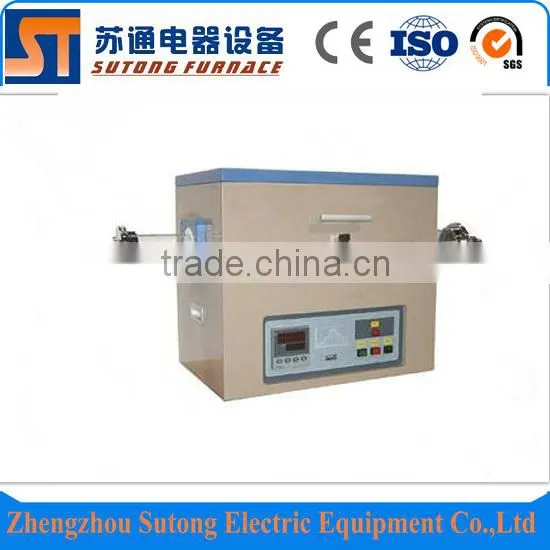

1200C Laboratory vacuum tube furnace details pictures :
Carton Fair pictures
Packaging pictures:
