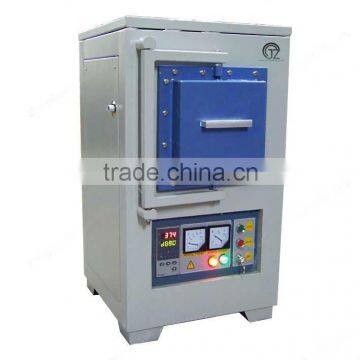

ST-1200RVA-8 vacuum atmosphere Furnace with inert gas
Sample Specifications:
Inside Chamber Size:400x400x400mm(16"x16"x16")
Standard Working Temperature:1100.C ( continuous )
Maximum Working Temperature:1200.C ( < 3 hrs)
Furnace Atmosphere: Nitrogen, Argon and other inert gases
Heating Element :Fe-Cr-Al-Mo alloy resistance wire
Thermocouple:K type
Detailed Product Description:
|
ST-1200RVA-8 vacuum atmosphere Furnace with inert gas can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other Inert gas.It’s an ideal furnace for sintering, reducing with inert-atmosphere in labs of university, Research Institution and industrial company. | |
Inside Chamber Size: |
450x450x500mm(18"x18"x20") |
Standard Working Temperature: |
1100oC ( continuous ) |
Maximum Working Temperature: |
1200oC ( < 3 hrs) |
Furnace Atmosphere: |
Nitrogen, Argon and other inert gases |
Temperature Control: |
30 steps programmable and PID automatic control |
Heating Rate: |
0~ 10.C/ min (suggestion: =< 10.C ) |
Temperature Accuracy: |
+/- 1 .C |
Furnace structure: |
double shell with fan cooling |
Heating Element: |
Fe-Cr-Al-Mo alloy resistance wire |
Thermocouple: |
K type |
Working Voltage: |
AC 220V Three Phases 60/50 Hz (or according to your requirement) |
Standard Sizes:
Model |
Chamber size(WxHXYmm) |
Max. Temperature |
ST-1200RVA-1 |
150x150x150mm(6"x6"x6") |
1200.C |
ST-1200RVA-2 |
150x150x200mm(6"x6"x8") |
1200.C |
ST-1200RVA-3 |
200x200x200mm(8"x8"x8") |
1200.C |
ST-1200RVA-4 |
200x200x300mm(8"x8"x12") |
1200.C |
ST-1200RVA-5 |
250x250x300mm(10"x10"x12") |
1200.C |
ST-1200RVA-6 |
300x300x400mm(12"x12"x16") |
1200.C |
ST-1200RVA-7 |
350x350x400mm(14"x14"x16") |
1200.C |
ST-1200RVA-8 |
400x400x400mm(18"x18"x20") |
1200.C |
ST-1200RVA-9 |
500x500x500mm(20"x20"x20") |
1200.C |
ST-1200RVA-10 |
600x600x600mm(24"x24"x24") |
1200.C |
Applications:
1.Gravimetric analysis;
2.Sintering or Roasting or Forging or calcining;
3.Quantitative analysis;
4.Heat treating or Preheating;
5.Quenching or Hardening or Austempering
6.Annealing or Tempering or Normalizing
7.Stress Relieving
8.Temperature measurement
