Specifications
1.Stainless steel bag filter2.Easy to operate & low maintenance
3.Large-area, heavy-duty baskets
4.SS 316 L, SS 316 & SS 304

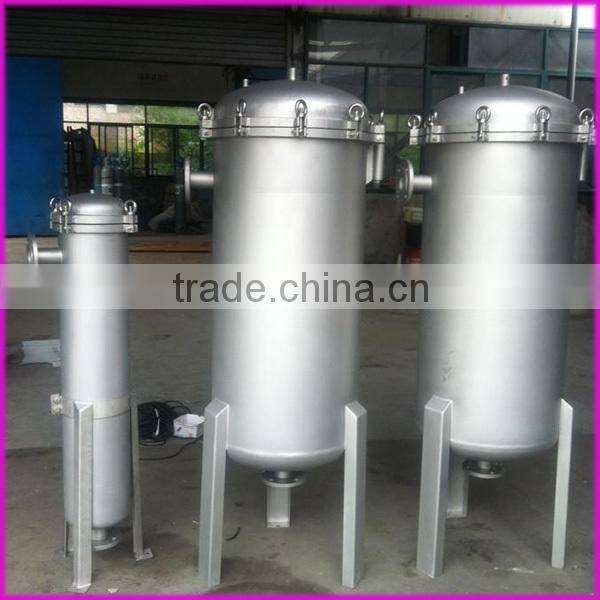

Stainless steel filter housing
Bag filter systems are designed for high flow rates and high sediment holding capacity.
The filter liquid enters through the top of the bag and is filtered from the inside to the
outside of the bag.
This reverse filtration allows bigger sediment particles to settle in the base of the bag.
While smaller sediment particles filter through the side walls extending the life of the
filter bag.The filter bags are locked in place with a locking ring and pressure is applied
to the locking ring with a wing nut for a tight seal to prevent bypass. Bag filters allow
for quick bag filter changes to keep down time to a minimum. There are also two pressure
gauge entry’s so the pressure differential can be monitored for optimal bag usage
and replacement.Different types of filter bags are available for specific filter application.
Bag filters have multiple uses for filtering large volumes of low and high viscosity fluids.
A Bag filter consists of three parts, filter housing (including lid), internal stainless steel
mesh basket and filter bag.The stainless steel mesh bag support basket allows for a
greater differential pressure drop between inside and outside of the filter bag and helps
support the bag as well as prevents filter bag damage.
Features & Benefits
Easy to operate & low maintenance
Low pressure drop
Low down time between filter bag replacement
Quick lock flange to avoid bypassing
Suitable for PP Collar, Rigid Ring
Large-area, heavy-duty baskets (300 micron)
All lids and mesh baskets are O-Ring sealed
All housings made from SS 316 L, SS 316 & SS 304
Housings are electro-polished or bead blasted both inside and outside to prevent dirt and
scale build up.
Quick opening lid – swing bolt design (larger bag filters have swivel arm design for easy maintenance)
Maximum operating pressure stainless steel 10 bar (150 PSI)
