Specifications
1.Single cartridge filter housing2.Easy to operate
3.Large-area, heavy-duty baskets
4.SS 316 & SS 304

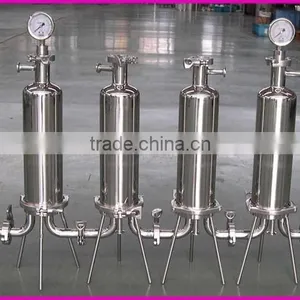

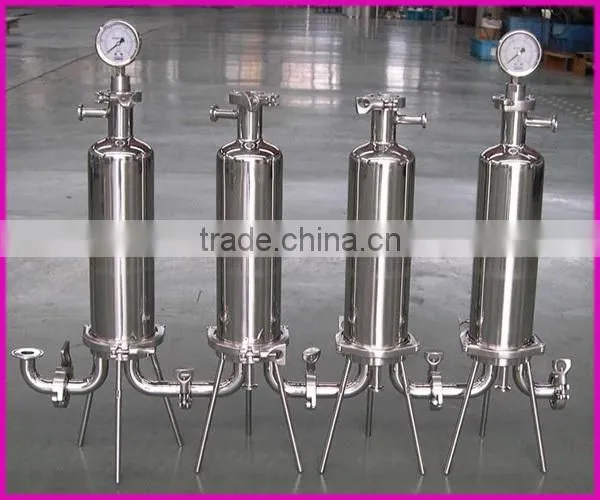

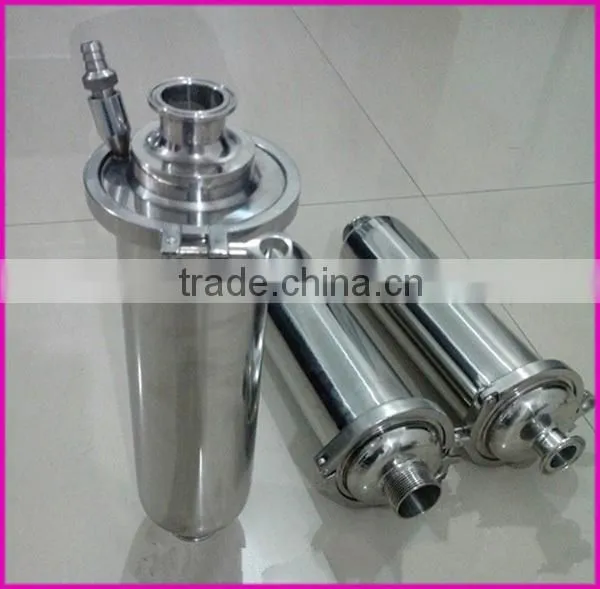

Single Cartridge Filter Housing
Single cartridge sanitary housing are available in Incline or T-style configurations
and offered in lengths from 5 through 40 inches. Sanitary clamp closures are a proven
design suited for high purity beverage, chemical and pharmaceutical Applications. They
are manufactured in 304 or 316L Stainless Steel with a type cartridge adaptors, our 226
style cartridge adaptors allowing a positive locking tab seal. This gives flexibility in one
housing to use different cartridge lengths and Maximize filter performance and cost.
Contact with the process fluid and are standard with food grade silicone gaskets. 3/4"
sanitary gauge port tops with 1/2" sanitary vent and drain port s standard with solid cap,
silicone gasket and clamp.
Operating Parameters
Max Operate pressure: 1.0 (MPa)
Max Operate temperature: 110 Degree
Pressure tolerance on weld: 0.85
Corrosion by acid: 0
| Material: | High Quality Stainless Steel 304 or 316L |
| Design Pressure: | 150 PSI (10 Bar) |
| Work Temperature: | 110 Degree |
| Cartridge Quantity | 1 Round |
| Cartridge Length | 5" , 10" , 20" , 30" , 40" |
| Cartridge Adaptor | DOE, 222, 226 |
| Inlet/Outlet: | 1" , Tri-Clamp |
| Gasket Material | SILICONE, EPDM, PTFE, VITON Etc |
| Surface Finish: | Mirror Polish, Electrical Polish, Acid Washing, Sand Blast Etc |
| Configuration: |
CIP Spray Ball, Manhole, Liquid Level, Sampling Socket Temperature Gauge, Pressure Gauge, Adjusting Leg, Ladder etc. |
| Applications: | Food & Beverage, Wine Industry, Pharmaceutic, Chemical Industry etc |
|
Technical Parameters: |
1. This apparatus was manufactured and tested under the standard of JB4735-1997, This apparatus meet GMP standard 2. All Wled-seam are welded, Double weld-seam protect 3. Maximum corrosion resistance 4. Sanitary Filter Housing, No Dead Corner Internal and Outside surface Mirror Polishing or Electrical Polish Attachment Ra< 0.4um 5. Holding 24 Hours Under Pressure: 6.5 MPA, No Leakage 6. Quality Guarantee Period: One Year |
