Help CenterHoned Tube Used for Hydraulic Cylinder
Related Products
-
Din 2391 St52 Hydraulic Cylinder Honed Seamless TubeUS$ 520 - 610MOQ: 10 Tons -
China Joyoung Seamless Steel PipeUS$ 499 - 799MOQ: 5 Tons
-
Chemical Fertilizer Seamless Steel PipeUS$ 499 - 799MOQ: 5 Tons
-
Honed Seamless Steel Tube for CylindersUS$ 800 - 1,200MOQ: 5 Tons
-
Honed Hydraulic Cylinder PipeUS$ 1,000 - 1,000MOQ: 18 Metric Tons
Shandong Liaocheng Joyoung steel pipe manufacturing Co., Ltd. is located in Liaocheng, known as “water city“,the west of Shandong province.The company is one of the least professional steel pipe manufacturing enterprise with a set of producing hot rolled seamless steel pipes,cold draw seamless steel pipes andprecision cold rolled seamless steel pipe.
Founded in 2006, the company has a registered capital of 5 million yuan .The company produces and sells 50000 tons of various seamless steel pipes and realizes the output value of 2 billion yuan .The company is mainly engaged in the research, development and manufacture of seamless steel pipes, precision cold rolled seamless steel pipe and cold drawn steel pipes, with the annual productivity of 70,000 tons.
Advanced production technology ,perfect testing system ,strict quality control process ensure the reliability and stability of our product quality .The product outside diameter
from 21to 108 mm and the wall thickness is from2 to 25mm .The products passed the certification of American Petroleum Institute, and obtained the logo use licenses of API 5L .The company has successively passed the certification of ISO9001 Quality Management System, the certification of OHSAS 18001 Occupation Health Safety Management System and the certification of ISO 14001 Environmental Management System.
Shandong Liaocheng Joyoung steel pipe manufacturing Co., Ltd. sincerely welcomes all friends for sincere cooperation and create a bright future.

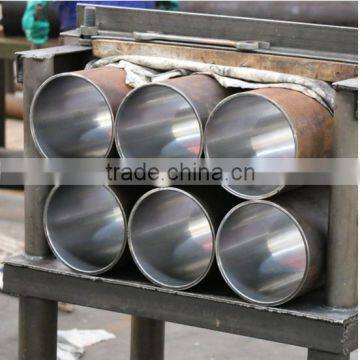

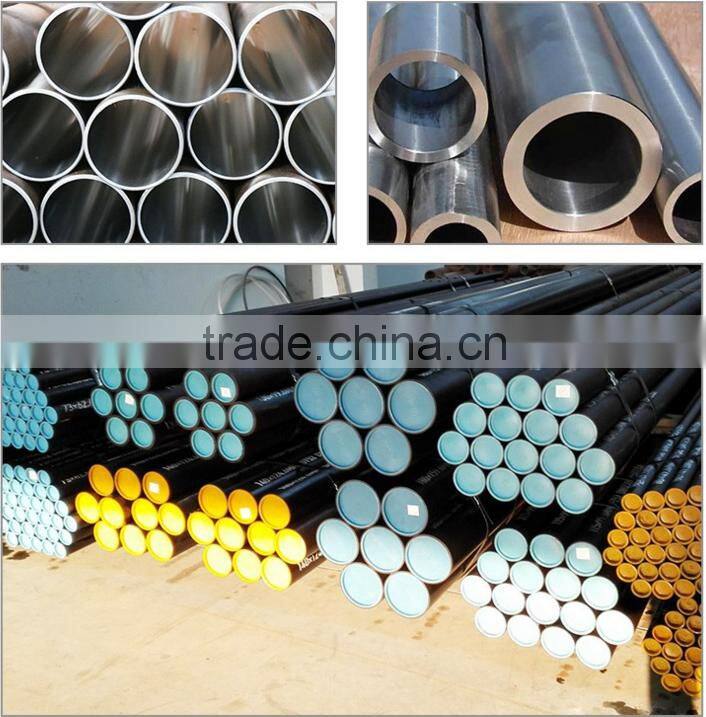

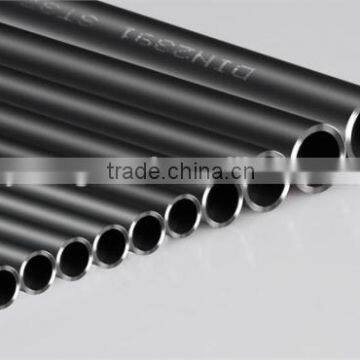

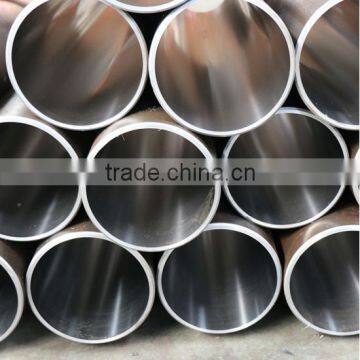

honed tube used for Hydraulic cylinder
1. CHEMICAL COMPOSITION (%)
Grade Elements |
C(max) |
Si(max) |
Mn |
P |
S(max) |
ST35 |
0.17 |
0.35 |
≥0.40 |
0.025 |
0.025 |
ST42 |
0.21 |
0.35 |
≥0.40 |
0.025 |
0.025 |
ST52 |
0.22 |
0.55 |
≤1.60 |
0.025 |
0.025 |
2. MECHANICAL PROPERTIES of ST52 hydraulic cylinder tube
Elongation(Min) Y.S (Min.) UTS (Min.)
≥15 470 N/MM2 580 N/MM2
3.Dimension tolerance:
Size of I.D |
I.D Tolerance |
Tolerance of wall thickness |
||
H8 |
H9 |
H10 |
±5% |
|
30 |
+0.033 |
+0.052 |
+0.084 |
|
>30-50 |
+0.039 |
+0.062 |
+0.100 |
|
>50-80 |
+0.046 |
+0.074 |
+0.120 |
|
>80-120 |
+0.054 |
+0.087 |
+0.140 |
|
>120-180 |
+0.063 |
+0.100 |
+0.160 |
|
>180-250 |
+0.072 |
+0.115 |
+0.185 |
|
>250-315 |
+0.081 |
+0.130 |
+0.210 |
|
>315-400 |
+0.089 |
+0.140 |
+0.230 |
|
