DTEC XXQ-3505 Portable Gas-filled X-ray Flaw Detector,Directional Filming
- 100 Set / Sets per Month
- Beijing Air Port Tianjin Sea Port
- T/T Credit Card
- ultrasonic flaw detector
- FOGSINS-NFS Series Fiber Optic Gyro North Seeker NFS Series (Type A, Type B, Type C, Type D) Fiber Optic Gyro North Seeker
- Gravity Metal Separator Industrial Plastic Granule Metal Detection Separator
- KM001 POWER-Z USB Digital Tester Type-C Voltage Current Detector
- Portable digital ultrasonic flaw detector Metal leak detector meter
- NDT Portable Digital Ultrasonic Testing Ultrasonic Flaw Detector
Product Details
Place of Origin: | Beijing, China | Brand Name: | DTEC | Model Number: | XXQ-3505 |
Product Description

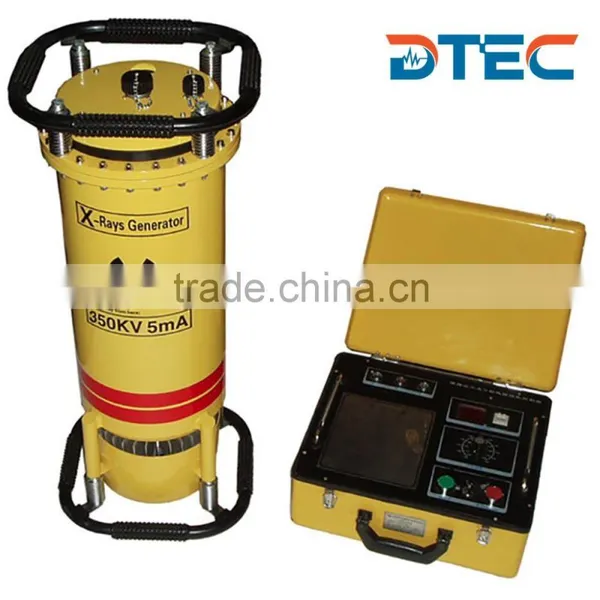

XXQ-3505 Portable Gas-filled X-ray Flaw Detector comes with 350kv output tube voltage, 5mA maximum tube current;it is suitable for directional filming the material of thin iron plate, aluminum, rubber and so on, which can get picture with good quality and clarity.
Equipment Structure:
Each model of X-ray equipment is composed of the controller, X-ray generator, power cable, connecting cable and cable accessories.

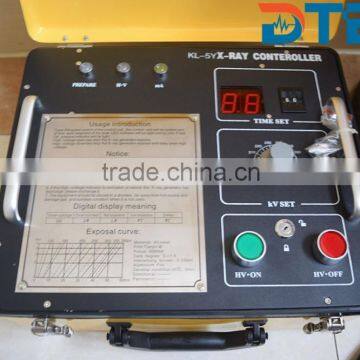

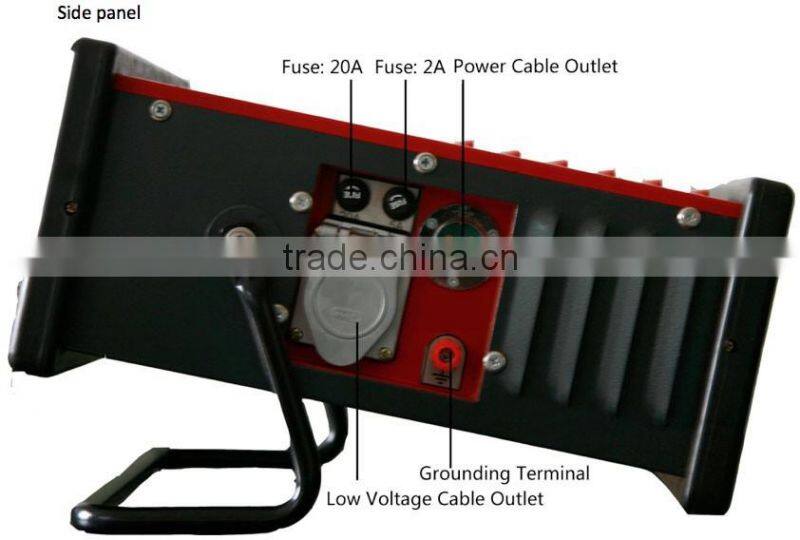

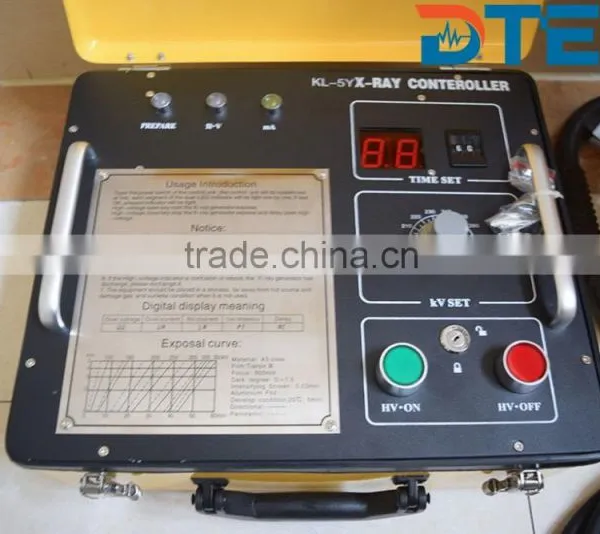

- Controller
The controller includes the parts as below internally:
A. kV control board;
B. mA control board;
C. Microprocessor control board;
D. Protective circuit board;
E. SCR Voltage-regulation modules;
F. LC filter;
G. Primary and secondary SCR inverter system;
H. Cooling fan;

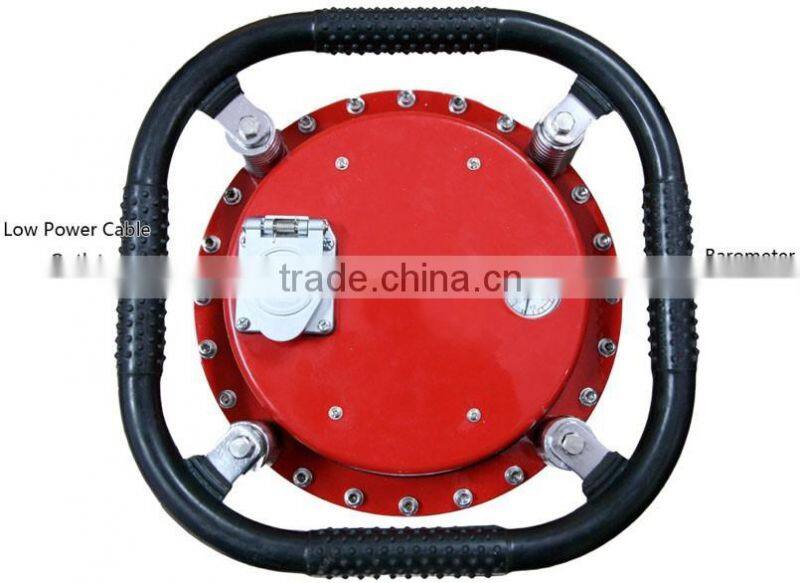

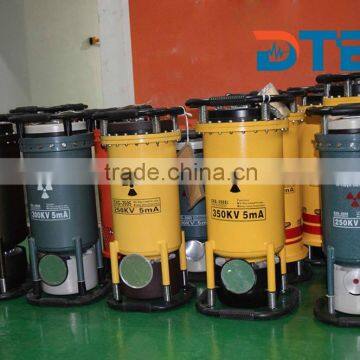

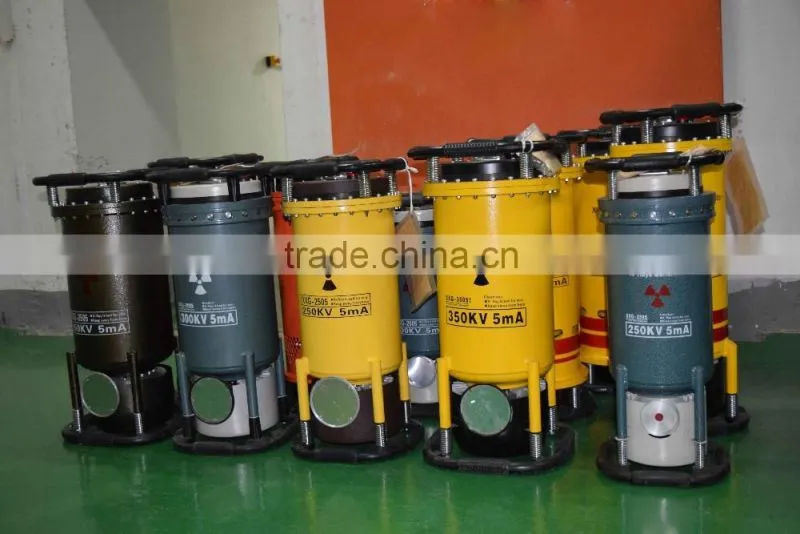

- X-ray Generator

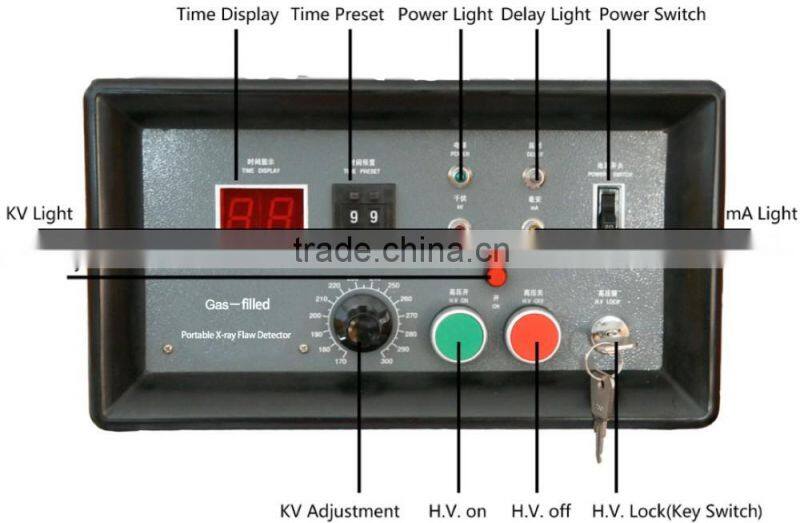

Main Panel
The X-ray generator is of the module type. The X-ray tube, HV transformer and insulated gas (SF6) are encapsulated in an aluminum shell of sylindrical shape. The fan and heat radiator are mounted on one end of the X-ray generator. When the warning lamp lighting on, it means the X-ray NDT equipment is under the stand-by condition and X-ray will be produced (The warning lamp keeps lighting on in the whole course of producing the X-ray). The schematic drawing of the controller refers to the Drawings.
The X-ray generator mainly includes the parts as below

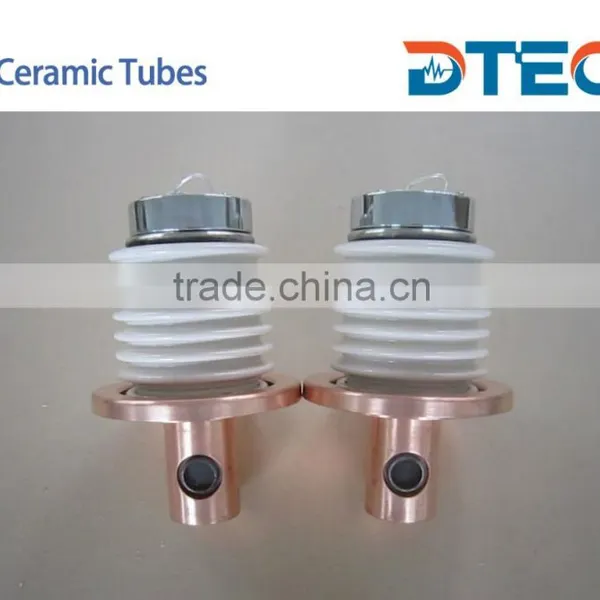

A. X-ray tube;
B. HV transformer;
C. Temperature relay;
D. Pressure meter for gas;
E. Socket for connecting cable;
F. Warning lamp;
G. Cooling fan for the X-ray tube;
H. Charge and discharge valves for gas.
- Automatically Checking the software and hardware after starting the machine;
- Excellent anti-jamming performance, which is suitable for field operation without power supply, due to the motor support;
- Adjustable of exposure parameters with keys (easy operation);
- Function of delaying to open HV, convenient for operator to keep away from dangerous field;
- Adjustable of high voltage slowly for protecting X-ray generator;
- Automatically controlling according to 1:1 working and rest operating mode, the longest continuous exposure period is 5 minutes;
- Complete protecting system included: over KV, low mA, over mA, over temperature and optical-sound alarming;
- Convenient for repairing and maintenance;
- Much more Substance for structure designing, much more convenient for local operation;
- Time can be changed for±0.3 according to the power supply net to make the exposure more precise.
Model | 100KV | 160KV | 200KV | 250KV | 300KV | 350KV | |||||||
Power Supply | AC220V±10% 50MHz | ||||||||||||
Max. Tube Current | 5 mA | ||||||||||||
Power (kW) | >1.0 | >1.5 | >2.0 | >2.5 | >3.0 | >3.5 | |||||||
Tube Voltage (kV) | 40-100 | 60-160 | 80-200 | 130-250 | 150-300 | 200-350 | |||||||
Focal Spot (mm) | XXQ | 1.0x1.0 | 1.5x1.5 | 1.5x1.5 | 2.0x2.0 | 2.5x2.5 | 2.5x2.5 | ||||||
XXG | 2.0x2.0 | 1.5x1.5 | 1.5x1.5 | 2.5x2.5 | 2.5x2.5 | ||||||||
XXH | 1.0x1.5 | 1.0x2.0 | 1.0x2.0 | 1.0x2.4 | 1.0x2.5 | 1.0x2.5 | |||||||
XXHA | 1.0x3.5 | 1.0x3.5 | 1.0x5.0 | 1.0x6.0 | 1.0x6.0 | ||||||||
Generator (KG) | XXQ | 10 | 15 | 23 | 35 | 43 | 44 | ||||||
XXG | 14 | 25 | 31 | 37 | 38 | ||||||||
XXH/XXHA | 11 | 15 | 22 | 31 | 41 | 44 | |||||||
Controller Weight | 13KG | ||||||||||||
Radiation Angle | XXQ | 40° | |||||||||||
XXG | 40° | ||||||||||||
XXH | 360°x25° | ||||||||||||
XXHA | 360°x40° | ||||||||||||
Max. Penetration (mm) (A3Steel) | XXQ | 8 | 20 | 29 | 39 | 49 | 59 | ||||||
XXG | 20 | 29 | 39 | 49 | 59 | ||||||||
XXH | 6 | 18 | 26 | 36 | 46 | 55 | |||||||
XXHA | 15 | 24 | 34 | 40 | 50 | ||||||||
Insulation | SF6 Gas | ||||||||||||
Environmental Temperature | -25℃-40℃ | ||||||||||||
Relative Humidity | No more than 85% | ||||||||||||
Working Conditions of X-ray Photography | 1. Focus to Film: 600mm 2. Exposure time: 5 min. 3. Film: TianJin, Model III, intensified by double lead foil. 4. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min. blackness ≥ 1.5 | ||||||||||||
Safe Working Pressure for Gas | 0.35 ~ 0.50 MPA (Operation will be prohibited in the case less than 0.35 MPA) |

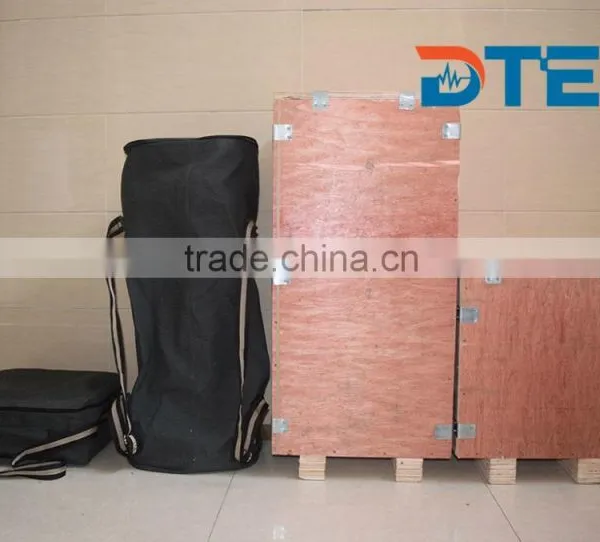

Standard Packing List:
Items | Qty. | Note |
X-ray Generator | 1 Pcs. |
|
Controller | 1 Set | |

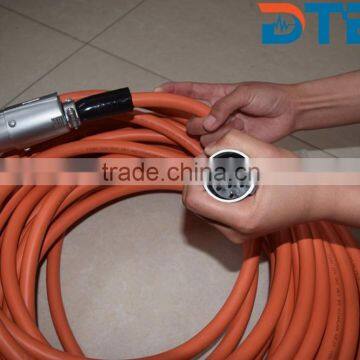

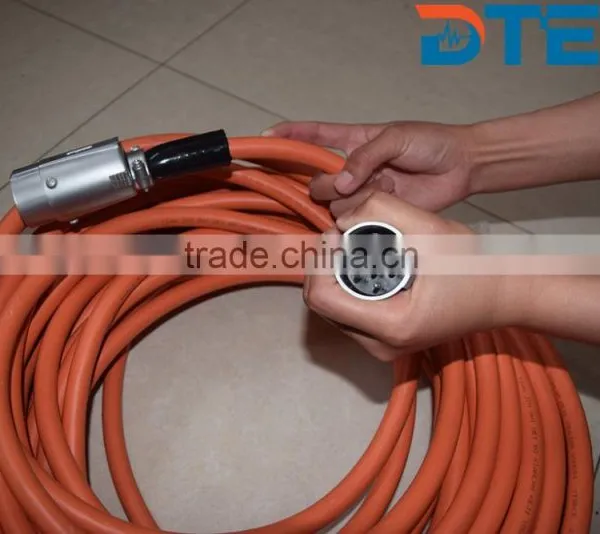

Connecting Cable | 1 Pcs. | 10 Cores, 25M |
Power Cable | 1 Pcs. | 2 Cores, 10M |
Grounding Wire | 1 Pcs. | 5M |
Fuse | 5 Pcs. | 20A |
Fuse | 5 Pcs. | 3A |
Alarm Lamp | 1 Pcs. | |
Film dark cassettes | 5 Pcs. | |
Intensifying Screen | 5 Pcs. | |
Wire Penetrameter | 1 Set | IQI |
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
