Help CenterDTEC DMT-III Magnetic Flaw Detector,Multi-functional,A,D,E,O Four Types of Selectable Probe
Related Products
-
DTEC DJX-A Magnetic Flaw Detector,A,D,,O Three Types of Selectable Probe Quality ChoiceUS$ 280 - 480MOQ: 1 Set -
DTEC DMY12-220 Magnetic Yoke Flaw Detector,DC and AC Power Supply,Dual Use.magnetization Mode of Detection,MT NDT EquipmentUS$ 300 - 450MOQ: 1 Set
-
DTEC DMY220 Magnetic Yoke Flaw Detector,AC Power Supply,magnetization Mode of Detection.MT NDT EquipmentUS$ 300 - 450MOQ: 1 Set
-
DTEC DMY12 Magnetic Yoke Flaw Detector,DC Power Supply,magnetization Mode of Detection.MT NDT EquipmentUS$ 300 - 450MOQ: 1 Set
-
DTEC DFY220 Florescent(UV) Yoke Flaw Detector,AC Power Supply,UV Fluorescent Inspection.MT NDT Equipment Quality ChoiceUS$ 300 - 480MOQ: 1 Set

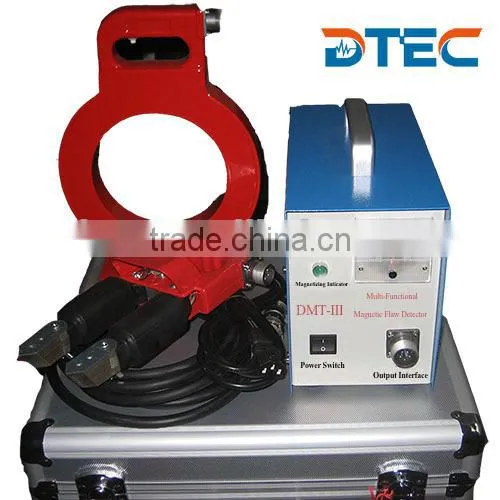

DMT-III Multi-functional Magnetic Flaw Detector is a new designed magnetic flaw positioning equipment,which is researched, developed and manufactured by ourselves combining the advantages of its counterparts from both home and abroad. It adopts Magnetization mode of extra magnetic field, which makes the equipment small in size and light in weight. Highly Integrated Circuit System makes the equipment function the unity of several separate equipment. This type is suitable for A,D,E,O four types of probes.
- A type probe: Widely used due to its turning joint;
It is also called horseshoe-shaped magnetic yoke probe or fillet weld probe, turning joint angular magnetic head, which is fitted with a working lamp and is especially suitable for flaw detection on specimens with abnormal face and complicated shape.
Polar Distance: 20-160mm;
Lifting Power: AC≥4.5KG,DC≥18KG;
Weight : 2KG;
Equipment made by this probe is called horseshoe-shaped magnetic yoke flaw detector or fillet weld flaw detector;
- D type probe: High magnetic inductivity and great magnetization strength;
It is called electromagnetic yoke probe with various turning joints and great magnetization strength.
Polar Distance:60-220mm;
Lifting Power: AC≥5KG,DC≥18KG;
Weight: 2.5KG;
Equipment independently made by this probe is named electromagnetic yoke flaw detector.
- E type probe: Fast detection speed and high testing quality;
It is also called crossing magnetic yoke probe or rotating-field probe, which can comprehensively detect the flaw by complex magnetization at a time. Crack detection speed can be increased by using roller and working lamp.
Polar Distance: 110mm;
Lifting Power: AC≥12KG;
Weight:3KG;
Equipment independently made by this probe is named rotating-field flaw detector, which uses two crossing magnetic yokes adopts AC move-phase technology to produce a synthetic rotating field that varies with time to comprehensively detect the flaw by complex magnetization at a time.
- O type probe: Suitable for sectional flaw detection or demagnetization on complicated specimens including axles, bars, pipes and vanes.
It is also called ring probe with an internal diameter of 150mm and center field ≥1800e.
Weight:2.5KG;
Equipment independently made by this probe is named ring flaw detector. It is designed on the principle of forming a strong magnetic field by energizing a coil.
Model |
DMT-III |
DMT-V |
DJX-A |
Suitable Probes |
A,D,E,O |
A,D,E,O |
A,D,O |
Power Supply |
220V±10% 50Hz 5A |
220V±10% 50Hz 5A |
220V±10% 50Hz 5A |
Output |
AC 36Vx2 15A |
AC 0-38V 0-15A |
|
Detection Speed (Demagnetizing Time) |
≥6M/Min |
4 Seconds |
≥6M/Min |
Probe Working Temperature |
≤60℃
|
≤60℃ |
≤60℃ |
Packing Weight (Exclude Probe) |
8KG |
8KG |
7KG |
Working Extent |
When long time’s continuous work:
Magnetizing Time≤3 Seconds;
Slot Time≥5 Seconds. |
||
Standard Packing List:
Items |
Qty. |
Notes
|
Main Unit |
1 |
|
Probe |
1 |
Type A,D or O |
Power Cable |
1 |
|
Output Cable |
1 |
|
Fuse |
2 |
5A |
High Brightness Lamp |
1 |
10W/12V |
Manual Book, Quality Certificate |
Each 1 |
Optional Accessories:
- A Type Probe
Polar Distance: 20-160mm;
Lifting Power: AC≥4.5KG,DC≥18KG;
Weight : 2.5KG;
- D Type Probe:
Polar Distance:60-220mm;
Lifting Power: AC≥5KG,DC≥18KG;
Weight: 2.5KG;
- E Type Probe:
Polar Distance: 110mm;
Lifting Power: AC≥12KG;
Weight:3KG;
- O Type Probe:
Internal Diameter:150mm;
Center Field ≥1800e;
Weight:2.5KG;
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
