Product Description

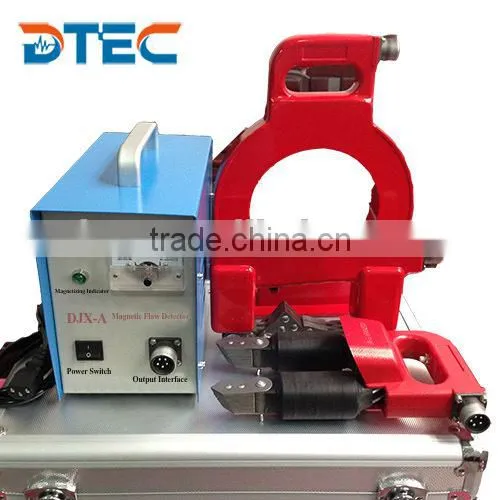

DJX-A Magnetic Flaw Detector is also a new designed magnetic flaw positioning equipment,which is researched, developed and manufactured by ourselves combining the advantages of its counterparts from both home and abroad. It adopts Magnetization mode of extra magnetic field, which makes the equipment small in size and light in weight. Packaging with Aluminum Alloy instrument case, This type is suitable for A,D,O three types of probes.



DTEC Advantages

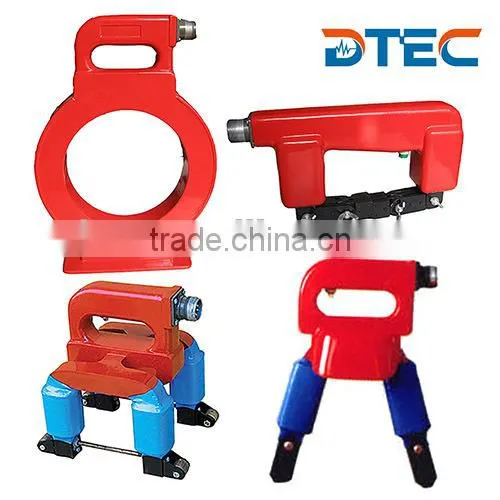

  •  A type probe: Widely used due to its turning joint;

DTEC DJX-A Magnetic Flaw Detector,A,D,,O three types of selectable probe


It is also called horseshoe-shaped magnetic yoke probe or fillet weld probe, turning joint angular magnetic head, which is fitted with a working lamp and is especially suitable for flaw detection on specimens with abnormal face and complicated shape.
Polar Distance: 20-160mm;
Lifting Power: AC≥4.5KG,DC≥18KG;
Weight : 2KG;
Equipment made by this probe is called horseshoe-shaped magnetic yoke flaw detector or fillet weld flaw detector;

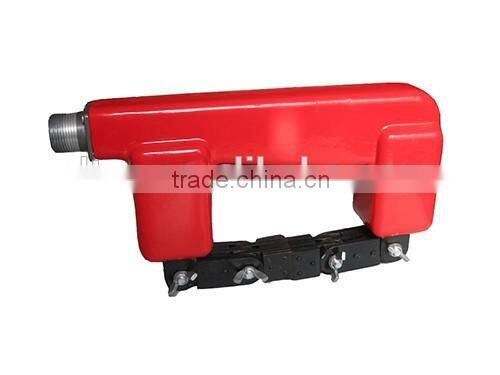

  • D type probe: High magnetic inductivity and great magnetization strength;

DTEC DJX-A Magnetic Flaw Detector,A,D,,O three types of selectable probe


It is called electromagnetic yoke probe with various turning joints and great magnetization strength.
Polar Distance:60-220mm;
Lifting Power: AC≥5KG,DC≥18KG;
Weight: 2.5KG;
Equipment independently made by this probe is named electromagnetic yoke flaw detector.

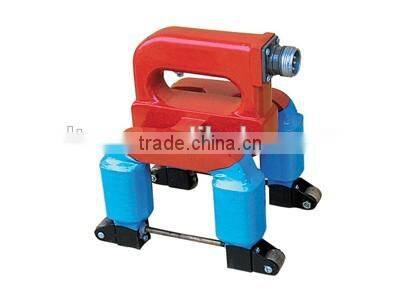

  • E type probe: Fast detection speed and high testing quality;

DTEC DJX-A Magnetic Flaw Detector,A,D,,O three types of selectable probe


It is also called crossing magnetic yoke probe or rotating-field probe, which can comprehensively detect the flaw by complex magnetization at a time. Crack detection speed can be increased by using roller and working lamp.
Polar Distance: 110mm;
Lifting Power: AC≥12KG;
Weight:3KG;
Equipment independently made by this probe is named rotating-field flaw detector, which uses two crossing magnetic yokes adopts AC move-phase technology to produce a synthetic rotating field that varies with time to comprehensively detect the flaw by complex magnetization at a time.

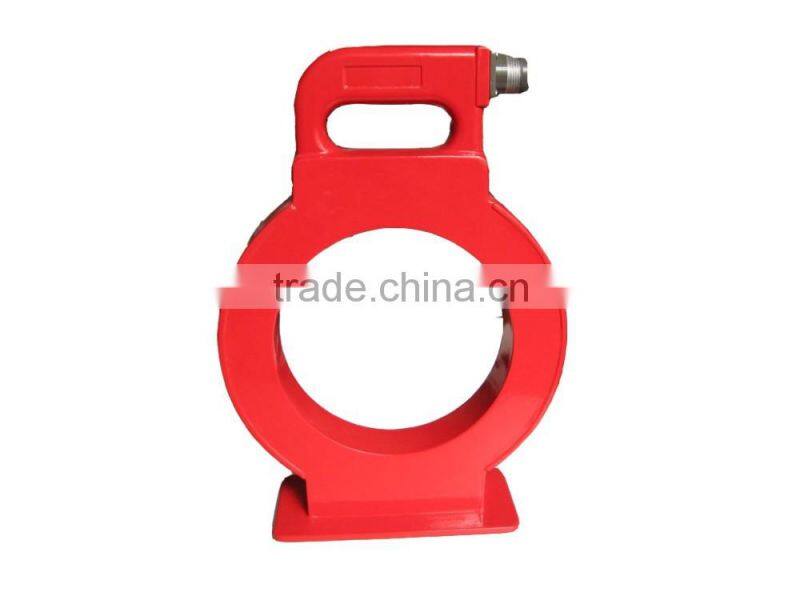

  • O type probe: Suitable for sectional flaw detection or demagnetization on complicated specimens including axles, bars, pipes and vanes.

DTEC DJX-A Magnetic Flaw Detector,A,D,,O three types of selectable probe
It is also called ring probe with an internal diameter of 150mm and center field ≥1800e.
Weight:2.5KG;
Equipment independently made by this probe is named ring flaw detector. It is designed on the principle of forming a strong magnetic field by energizing a coil.





Specification





Model
DMT-III
DMT-V
DJX-A
Suitable Probes
A,D,E,O
A,D,E,O
A,D,O
Power Supply
220V±10% 50Hz 5A
220V±10% 50Hz 5A
220V±10% 50Hz 5A
Output
AC 36Vx2 15A
AC 0-38V 0-15A


Detection Speed (Demagnetizing Time)

≥6M/Min
4 Seconds

≥6M/Min
Probe Working Temperature
≤60℃

≤60℃

≤60℃
Packing Weight       (Exclude Probe)
8KG
8KG
7KG
Working Extent
When long time’s continuous work:
Magnetizing Time≤3 Seconds;

Slot Time≥5 Seconds.

Packing List & Accs



  Standard Packing List:



Items
Qty.
 Notes
Main Unit
1

Probe
1
Type A,D or O
Power Cable
1

Output Cable
1

Fuse
2
5A
High Brightness Lamp
1
10W/12V
Manual Book, Quality Certificate
Each 1




Optional Accessories:

  • A Type Probe




Polar Distance: 20-160mm;
Lifting Power: AC≥4.5KG,DC≥18KG;
Weight : 2.5KG;
DTEC DJX-A Magnetic Flaw Detector,A,D,,O three types of selectable probe


  • D Type Probe:


Polar Distance:60-220mm;
Lifting Power: AC≥5KG,DC≥18KG;
Weight: 2.5KG;
DTEC DJX-A Magnetic Flaw Detector,A,D,,O three types of selectable probe



  • O Type Probe:


Internal Diameter:150mm;
Center Field ≥1800e;
Weight:2.5KG;
DTEC DJX-A Magnetic Flaw Detector,A,D,,O three types of selectable probe

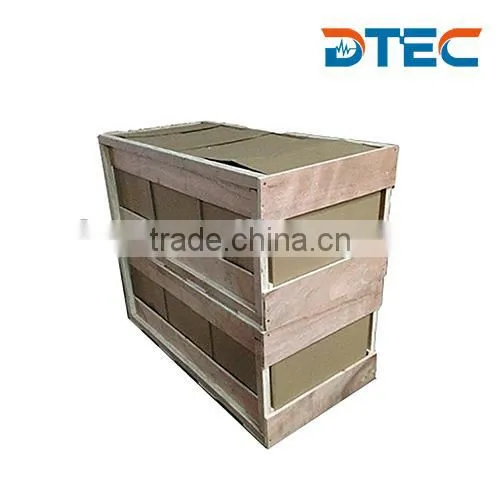

Packaging & Shipping

Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.

DTEC DJX-A Magnetic Flaw Detector,A,D,,O three types of selectable probe
