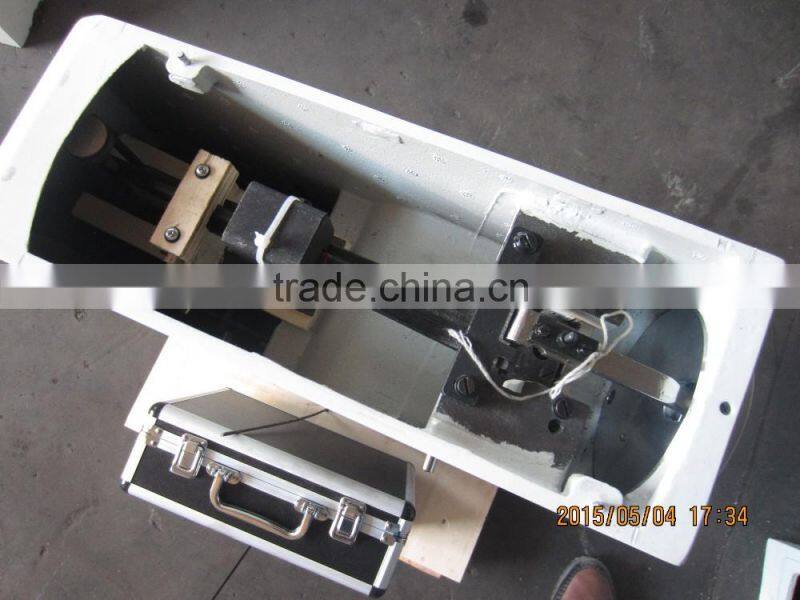

Help CenterDTEC HR-150A Manual Rockwell Hardness HRC ,Qualified With ISO,ASTM Certificate
Related Products
-
DTEC HBS-3000 Digital Brinell Hardness Tester,built-in Printer Full Automatic Testing,durable and Reliable Performance,CE,ASTM.US$ 3,200 - 4,000MOQ: 1 Set -
DTEC HBE-3000 Electronic Brinell Hardness Tester Full Auto Operation,Electronic Loading,Durable Reliable Performance,CE ASTMUS$ 2,000 - 2,500MOQ: 1 Set
-
DTEC HR-45M Motorized Superficial Rockwell Hardness Tester,Superficial Scales of HRN/HRT,Automatic Loading,ISO,ASTM CertificateUS$ 900 - 1,200MOQ: 1 Set
-
DTEC DHB-3000E Electronic Brinell Hardness Tester Full Auto Operation,Electronic Loading High Repeatability & Stability,CE ASTMUS$ 1,500 - 2,300MOQ: 1 Set
-
DTEC DHB-3000D Digital Brinell Hardness Tester,built-in Printer Full Automatic Testing,durable and Reliable Performance,EN,ASTM.US$ 4,500 - 5,000MOQ: 1 Set

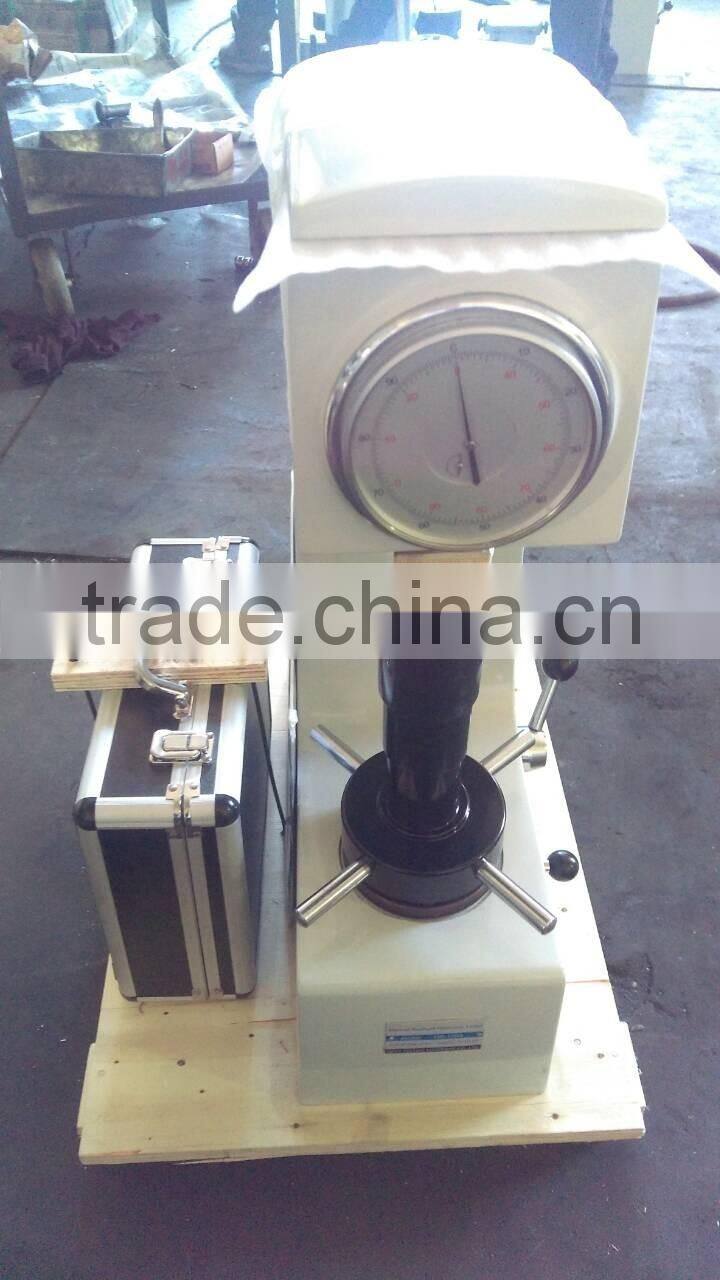

HR-150A double handle type is another fundamental model of all rockwell types,it is favored by most customers mainly because of its mechanical and manual testing mode,which is durable and stable.
Without electrical power supply,and with simple designed appearance and single handle,it is very easy to operate,as well as economical and practical performance and wide using scope.
There is no parameter distinguish between single and double handle type,it only depends on the user's operation habit and personal hobby.
Using Scopes:
- Rockwell Hardness Testing of Ferrous Metal,Non-ferrous Metalt and Non-metallic Material.
- Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy,bearing steel, carburized steel sheet, etc.
Rockwell hardness scale |
Hardness symbol
|
Indenter type |
Initial l force Fo (kg) |
main force F1 (kg) |
Total force F(KG) |
Constant |
Scope of application |
Examples of application |
A |
HRA |
diamond cone indenter |
10 |
50 |
60 |
100 |
20-88HRA |
Hard metal and hard alloy |
B |
HRB |
1.5875mmball indenter |
10 |
90 |
100 |
130 |
20-100HRB |
Nonferrous metal and soft metal |
C |
HRC |
diamond cone indenter |
10 |
140 |
150 |
100 |
20-70HRC |
heat treatment steel |
D |
HRD |
diamond cone indenter |
10 |
90 |
100 |
100 |
40-77HRD |
Surface hardened steel |
F |
HRF |
1.5875mmball indenter |
10 |
50 |
60 |
130 |
60-100HRF |
Nonferrous metal |
G |
HRG |
1.5875mmball indenter |
10 |
140 |
150 |
130 |
30-94HRG |
iron, copper nickel, zinc alloy |
- A scale: It is suitable for testing the metal more than 70HRC, such as tungsten carbide, hard alloy as well as the hard sheet material and the hardening material on the surface layer.
- B scale: It is suitable for testing non-ferrous metals and alloys, annealing steel or soft or medium hardness of materials.
- C scale: It is suitable for testing the carbon steel, tool steel and alloy steel.
- High testing efficiency,with high accuracy hydraulic buffer,durable and reliable loading;
- Direct dial readings,with scales of HRA,HRB and HRC;
- Suitable for optional Rockwell scales:HRD,HRE,HRF,HRG,HRH,HRK;
- Mechanical and manual testing mode,easy and simple operation,without electrical power supply;
- Quality certified with GB/T230.1/.2 National Standard,ISO 6508-2,ASTM E18.
Model |
HR-150A |
Initial Testing Force |
10kgf(98.07N) |
| Hardness Resolution | 0.5HR |
Testing Force |
60kgf(588.4N) 100kgf(980.7N) 150kgf(1471N) |
Rockwell Scale |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK |
Testing Range |
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 |
HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 | |
DataDisplay mode |
Dial |
| Operate Mode | Double Handle |
Carried Standard |
GB/T230.1/.2 National Standard,ISO 6508-2,ASTM E18 |
Max Height of Specimens |
170mm |
Max depth of specimens |
135mm |
Dimension (cm) |
65*40*81(L*W*H) |
Packing Weight |
80KG
|
Standard Packing List:
Items |
Qty |
Items |
Qty |
Diamond Rockwell Indentor |
1 |
Dia.1/16'' ball indentor |
1 |
Block (HRC high and low value 2pcs each,HRB 1pcs) |
5 |

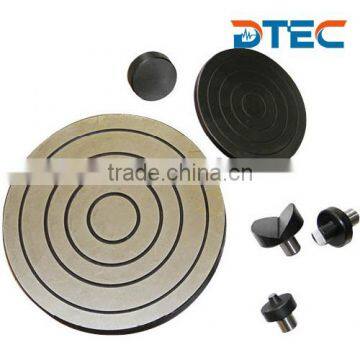

Big,Medium and V shaped Testing Platform |
1 each |
Weight(A,B,C) |
1 each |
Dustproof Cover |
1 |

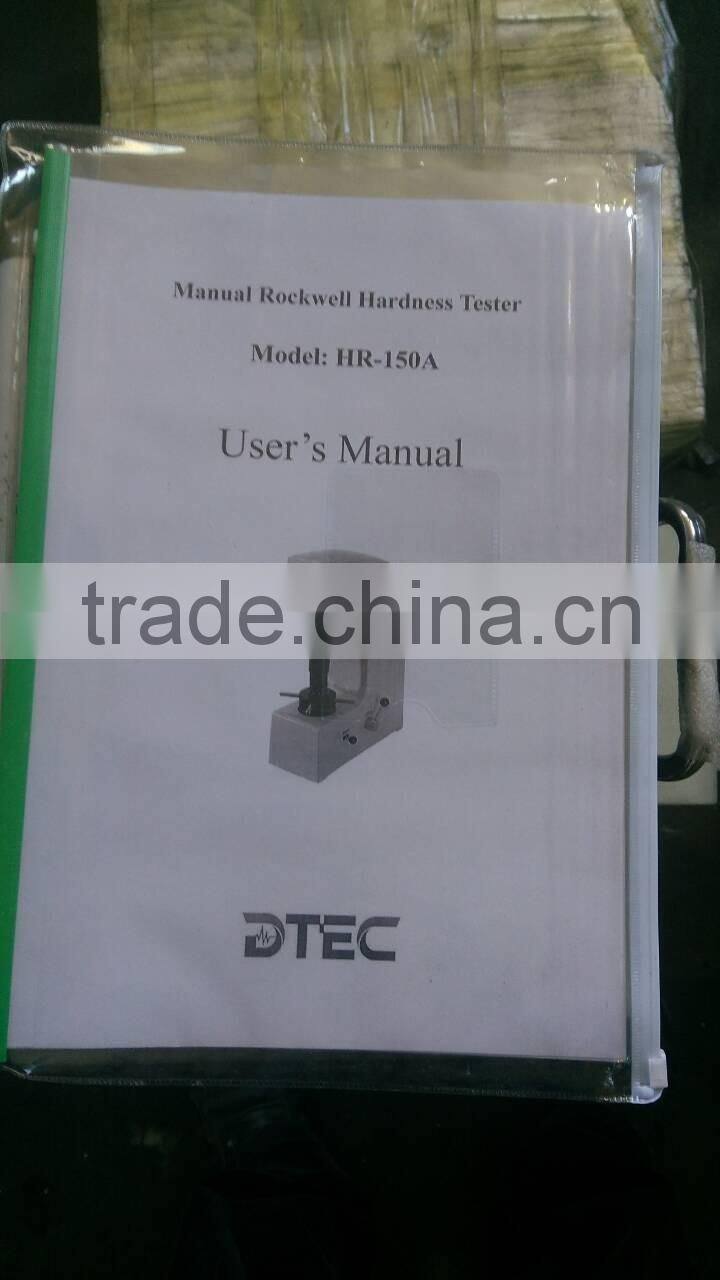

User’s Manual Book |
1 |
Quality Certificate |
1 |
Optional Accessories for Rockwell Hardness Tester:
Rockwell Hardness Block:
Rockwell Hardness Indenter(Good Quality Diamond):
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
