Small 3d Sculpture Machine HD-1200Y
- Qingdao
- Money Gram Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | hongdaboke | |
| Model Number | HD-1200Y | Voltage | AC220V/50Hz | |
| Power(W) | 2KW | Dimension(L*W*H) | 1200*200*200mm | |
| Weight | 800KG | Certification | CE,ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

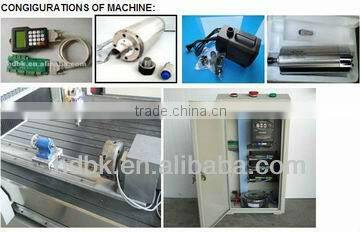

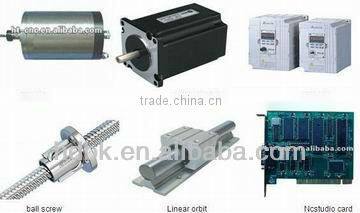

Specifications
3d sculpture machine:1.vacuum suction table
2.2.2/3.0kw water cooled main axis
3.step drive motor
Small 3d sculpture machine HD-1200Y
Equipment Features:
1. We can make cylinder-carving machine with all specifications to meet users.
2. Two-way position rail high precision.
3. Water-cool main axle with 2.2kw frequency conversion great power and long life.
Technical -parameters:
Model | HD-1200Y | Option |
X Y working area | 1200×200mm | 1500/3000mm |
Z working area | 200mm |
|
Table size | 1710×5300mm |
|
Max feeding | 4m-5.5m/min |
|
Work-holding | by suction |
|
Processor | 0.005mm |
|
Interface | USB |
|
Command | G code*.u00*.mmg*.plt |
|
Surroundings for software | Windows98/2000/XP |
|
Power(not include the spindle) | 1.5KW |
|
Power | AC220V/50Hz |
|
Main axle power rate | 2.2/3.0KW |
|
Main axle rotating speed | 0-24000rpm/min |
|
Work Mode | Stepper | |
In addition, we have woodworking engraver, relief engraver, cylinder craft wood engraver, special mould engraver, stone engraver, advertising machines, laser engraving/cutting machines and so on.
we can make carving machines with all specifications to meet user's requirements.
Thank you for your visiting the product of HongDa BoKe!
