Specifications
Cylinder craft wood engraver for wooden desk legs/stair1.Whole steel structure
2.Imported orbit
3.Germany ballscrew
4.2.2KW
Cylinder craft wood engraver for wooden desk legs/stair
Features:
1.Supply various cylinder engraver,meet your different processing requirements.
2.Adopt imported linear square guide,ensure higher positioning accuracy.
3.Handle controlling,not occupying computer resource,one computer can control several equipments.
4.Own functions of restoring from power off,continuation from break point,repeat engraving,support nine coordinate positioning,friendly designing.
5.Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut etc.
Technical-parameters:
Model |
HD-1200Y |
XY working area |
1200x200mm |
Z working area |
200mm |
Table size |
1710x530mm |
Max feeding |
4m-5.5m/min |
Work-holding |
2m-3m/min |
Resolution |
0.005mm |
Interface |
USB |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
Windows98/2000/xp |
Power(not include the spindle) |
500W |
Working voltage |
AC220V/50Hz |
spindle power rate |
2.2KW |
spindle rotating speed |
0-24000rpm/min |
Drive motor |
stepper |
Components | |
Spindle |
Water cooling spindle |
Inverter |
Fuling inverter |
Controlling system |
DSP handle or Ncstudio computer control |
Motor and drive |
Leadshine stepper motor and driver |
Guide rail |
Taiwan Hiwin linear rail |

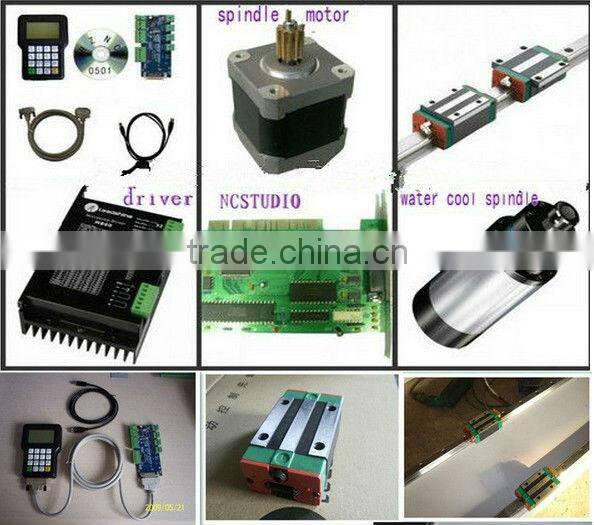

Configuration:
Application:
Stereo 3D technology,furmiture stereo feet and the cylinder, the human body,figure of Buddha,the goddess of mercy,sculpture,handicrafts,stair handrail,cylinder Musical Instruments.
What industries and materials are suitble?
1) Wood, bamboo products, acrylic plate, plastic, plexiglass, ceramic tile, marble, jade, crystal, shell and other non-metallic materials and a variety of metal materials.
2) It specifically for cylindrical, conical body parts such as rotary engraving on patterns, characters, relief. Materials related to aluminum sculpture, steel, plastic, timber.

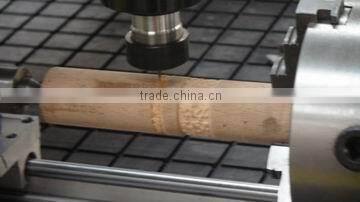

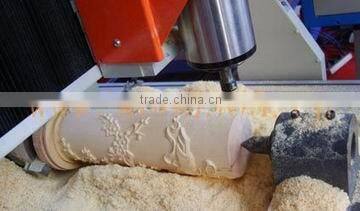

Samples:
Thank you for your visiting Hongda Boke!
