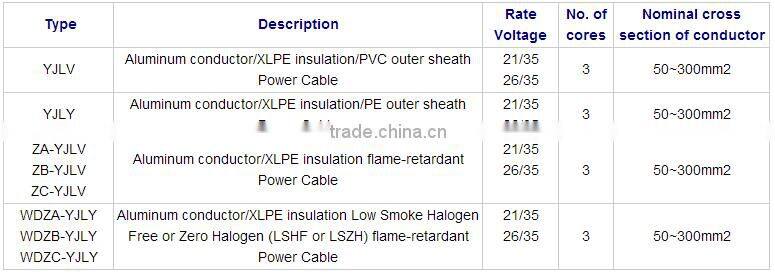

Al conductor XLPE insulation electric cable armed
Construction:
Circular stranded compacted plain aluminum conductor, extruded layer of cross-linkable semi-conducting screen, cross-linked polyethylene (XLPE) insulation, cross-linked extruded semi-conducting insulation screen, copper tape metallic screen, three cores assembled together with non-hygroscopic polypropylene filler, wrapped with binder tape, extruded black polyvinyl chloride (PVC) inner cover, armoured by round galvanized steel tape, binder tape, PVC or PE over sheath.
Application
1) The cable can be used for power transmission and distribution line.
2) The cable can be laid indoors, outdoors, in tunnel or in cable trench or dust and directly in the ground in switching stations, between stations and underground to overhead conversion.
3) Permissible continuous loading operating temperature is 90℃
4) The ambient temperature under installation shall not lower than 0℃
5) Permission short circuit temperature shall be 250℃.
6) The bending radius of cable shall not less than 15 times of the diameter of cable.
Standards
1) International Standard: IEC 60502-2
2) China Standard: GB/T 12706.2
3) Other Standards can also be produced as request
Hebei Wanfang Wire & Cable Group Co., Ltd. established in 2004. Our main and advantage products include 35KV or lower XLPE insulated power cable, 1 and 3 KV PVC insulated power cable, 10 KV or lower aerial cable, pre-branch cable, control cable, computer cable, ACSR, AAC, building cable.
Wooden drum, Iron drum, Iron-Wooden drum or as your request.
1. Q: Are you manufacturer or trading company?
A: We are Group company with 40000m² total building size, big production capacity.
2. Q:Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
3. Q:What is your MOQ?
A: You are advised to confirm it with us directly as it’s based on different cable type.
Usually it’s 500 meters for Medium Voltage Cables.
10000 meters for electrical wire.
4. Q:How can I get your price list?
A: Please leave your contact way such as Email/MSN/Skype/Trademanager to us. We will contact to you and send our quotation sheet to you.
5. Q: Required mainly certificates?
A: Our products are certified by ISO9001/ISO14001/CCC/TUV etc.
