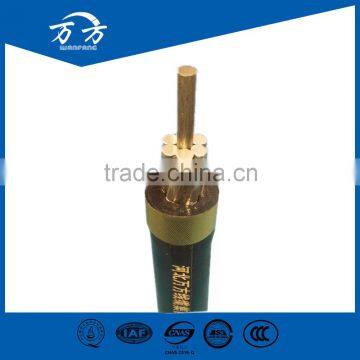

  XLPE Insulated Aluminum Conductor Overhead Cable 70mm2 electric cable

Type: JKLYJ 10KV 1*70 mm2  ( XLPE Insulated Aluminum Conductor Overhead Cable 70mm2 electric cable )

Rated Working Temperature:0ºC to 90ºC

Laying Temperature:≥-10ºC

Bending Radius:Single Core ≥20 D; Multiple Core  ≥ 15D



Construction:

Conductor: Aluminum conductor. The conductor is concentrically stranded, with successive layers in opposite lay, but such that the outermost layer shall be in the right hand spiral (Z).

Insulation: PVC/PE/XLPE covered

Application

1. Apply                                                                                                                                                                            Insulated overhead cable can be used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.

2. Standards

   International Standard:  IEC61089


   China Standard: GB/T 12527

   Other Standards can also be produced as request

1.  Hebei Wanfang Wire & Cable Group Co., Ltd. established in 2004. Our main and advantage products include 35KV or lower XLPE insulated power cable, 1 and 3 KV PVC insulated power cable, 10 KV or lower aerial cable, pre-branch cable, control cable, computer cable, ACSR, AAC, building cable.

2. ISO 9001, ISO 14001, OHSAS 18001 Certificates.

3. Registered Capital: 218,000,000 RMB

4. Total building size: 40,000 m2

5. Total No. of employee: 316

  Wooden drum, wooden-steel drum, Steel drum or as your request.

  Delivery port: Tianjin/Qingdao/Shanghai

  Delivery time: 15 days or as to the qty

  Payment term: T/T,L/C

1.   Q: Are you manufacturer or trading company?

     A: We are Group company with 40000m² total building size, big production   capacity.

2. Q:Can you provide Type Test Reports?
    A: Yes we can provide type test reports issued by Chinese laboratories.

3. Q:What is your MOQ?
    A: You are advised to confirm it with us directly as it’s based on different cable type.
     Usually it’s 500 meters for Medium Voltage Cables.

     10000 meters for electrical wire.

4. Q:How can I get your price list?

    A: Please leave your contact way such as Email/MSN/Skype/Trademanager to us. We will contact to you and send our quotation sheet to you.

5.   Q: Required mainly certificates?

     A: Our products are certified by ISO9001/ISO14001/CCC/TUV etc.
