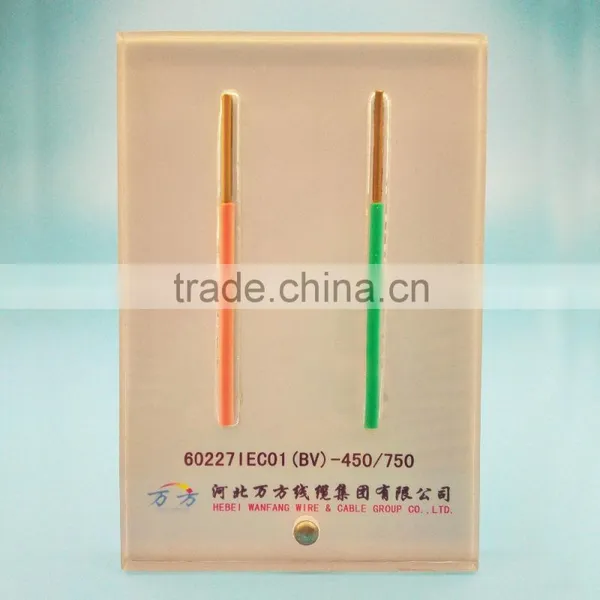

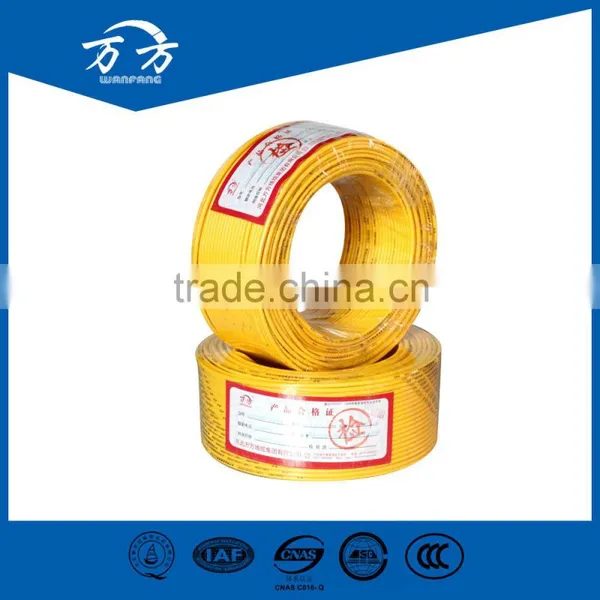

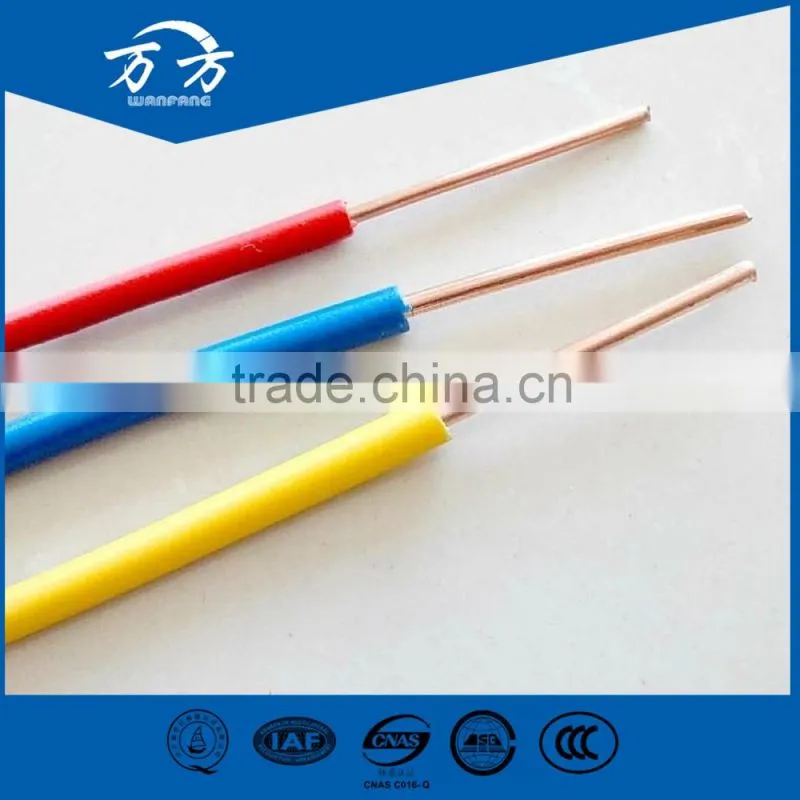

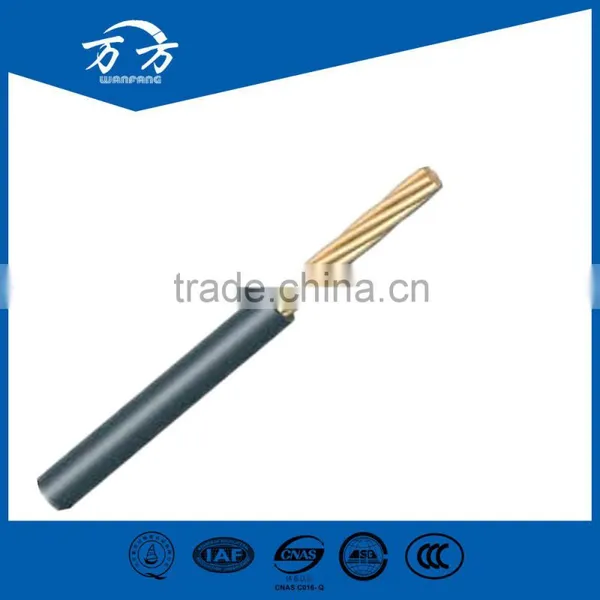

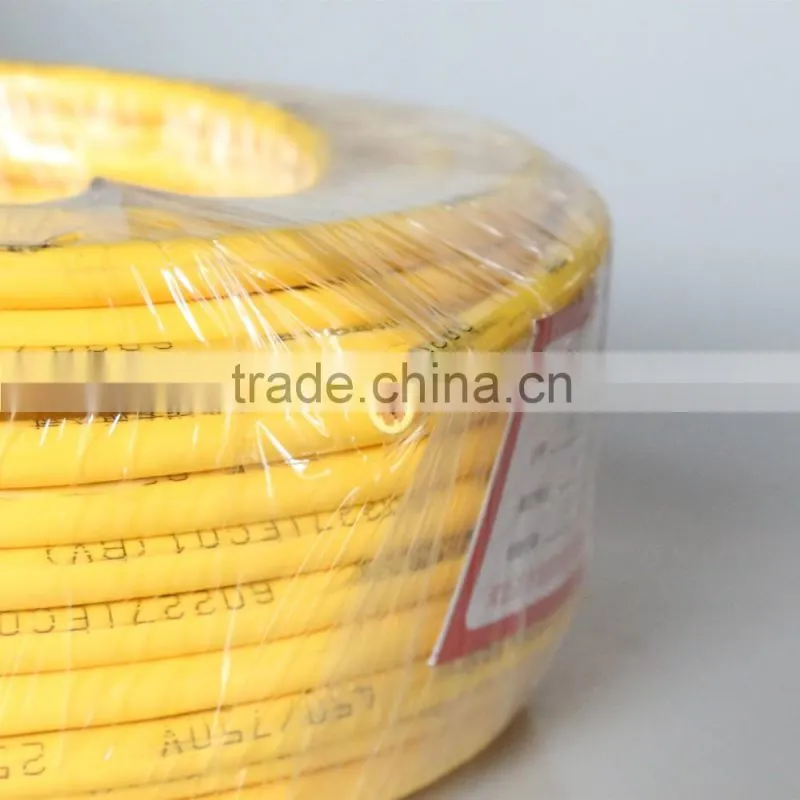

PVC Insulated Copper Conductor 1.5 sq mm electrical wire
Application
The product is applied to AC rated voltage 450/750V and below power plant laid(fixed)wiring. It's widely used in low voltage power lines,normal electrical equipment, instrumentation and telecommunication equipments.
Technical data
Rated voltage: 0.6/1KV
Highest working temperature of conductor: 90°C
Laying temperature:above 0°C
Minimum bending radius:6D
Specification
Nominal |
Conductor |
Nominal |
Max overall |
Condcutor |
Min insulated |
Weight |
||
Cu |
Al |
Cu |
Al |
|||||
1.5 |
1/1.38 |
0.7 |
3.3 |
12.1 |
- |
0.011 |
19.2 |
- |
1.5 |
7/0.52 |
0.7 |
3.5 |
12.1 |
- |
0.010 |
20.6 |
- |
2.5 |
1/1.78 |
0.8 |
3.9 |
7.41 |
11.8 |
0.010 |
30.8 |
15.0 |
4 |
1/2.25 |
0.8 |
4.4 |
4.61 |
7.39 |
0.0085 |
45.5 |
21.0 |
6 |
1/2.76 |
0.8 |
4.9 |
3.08 |
4.91 |
0.0070 |
65.0 |
29.0 |
10 |
7/1.35 |
1.0 |
7.0 |
1.83 |
3.08 |
0.0065 |
110.0 |
52.0 |
16 |
7/1.70 |
1.0 |
8.0 |
1.15 |
1.91 |
0.0050 |
170.0 |
70.0 |
25 |
7/2.14 |
1.2 |
10.0 |
0.727 |
1.20 |
0.0050 |
270.0 |
110.0 |
35 |
7/2.52 |
1.2 |
11.5 |
0.524 |
0.868 |
0.0040 |
364.0 |
150.0 |
50 |
19/1.78 |
1.4 |
13.0 |
0.387 |
0.641 |
0.0045 |
500.0 |
200.0 |
70 |
19/2.14 |
1.4 |
15.0 |
0.268 |
0.443 |
0.0035 |
688.0 |
269.0 |
95 |
19/2.52 |
1.6 |
17.5 |
0.193 |
0.320 |
0.0035 |
953.0 |
360.0 |
120 |
37/2.03 |
1.6 |
19.0 |
0.153 |
0.253 |
0.0032 |
1168.0 |
449.0 |
1. Hebei Wanfang Wire & Cable Group Co., Ltd. established in 2004. Our main and advantage products include 35KV or lower XLPE insulated power cable, 1 and 3 KV PVC insulated power cable, 10 KV or lower aerial cable, pre-branch cable, control cable, computer cable, ACSR, AAC, building cable.
2. ISO 9001, ISO 14001, OHSAS 18001 Certificates.
3. Registered Capital: 218,000,000 RMB
4. Total building size: 40,000 m2
5. Total No. of employee: 316
Wooden drum, wooden-steel drum, Steel drum or as your request.
Delivery port: Tianjin/Qingdao/Shanghai
Delivery time: 15 days or as to the qty
Payment term: T/T,L/C
1. Q: Are you manufacturer or trading company?
A: We are Group company with 40000m² total building size, big production capacity.
2. Q:Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
3. Q:What is your MOQ?
A: You are advised to confirm it with us directly as it’s based on different cable type.
Usually it’s 500 meters for Medium Voltage Cables.
10000 meters for electrical wire.
4. Q:How can I get your price list?
A: Please leave your contact way such as Email/MSN/Skype/Trademanager to us. We will contact to you and send our quotation sheet to you.
5. Q: Required mainly certificates?
A: Our products are certified by ISO9001/ISO14001/CCC/TUV etc.
