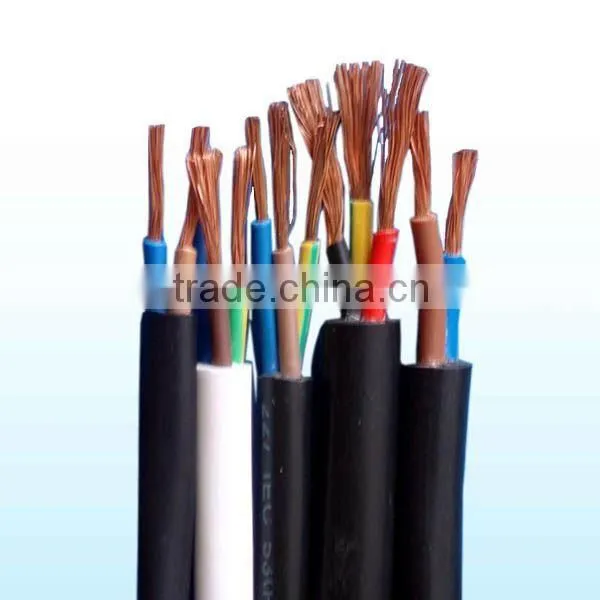

H05V3V3H6-F / H05V3V3D3H6-F of different electric wire sizes
Application and Description
This kind of flat cables are used in crews of elevators for people and have burdens, and conducting very swift
and hard parts of machines.H05V3V3H6-F type cables having no strechter carrier elements are adviced to
use in elevator instalations max. swift not pass 4.0 m/s.These cables freely hanging height is max. 45m and
movement limit is max 80m. For the H05V3V3D3H6-F, at the swifts between 4.0/s to 6.3m/s, it's adviced to
use the cables having strechter carrier elements. H05V3V3D3H6-F type cables freely hanging height is max.
80m movement limit is max. 150m.
Standard and Approval
UNE – EN 50214, HD 359 S3, IEC 60332-1, CSA C22.2 N° 49, DIN VDE 0281 part 404, UL 62

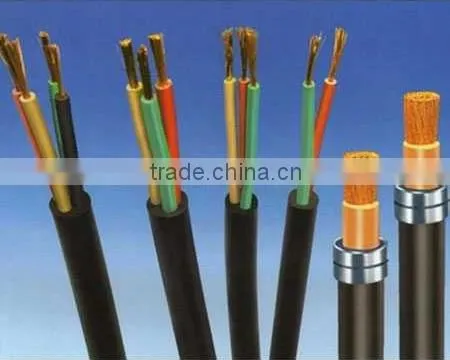

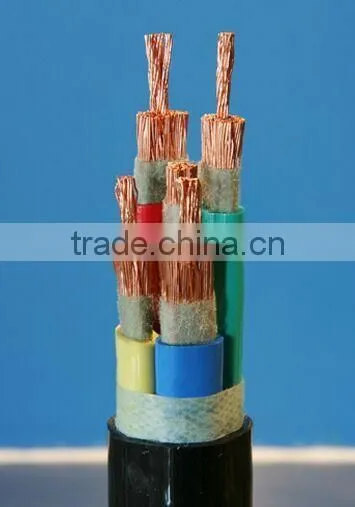

Cable Construction
- Bare copper strand conductor
- acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6
- PVC T15 core insulation
- Color coded to VDE 0293-308, >6 wires black with white numerals with green/yellow wire
- Black PVC TM 4 sheath
Technical Characteristics
- Working voltage: 300/500V
- Test voltage: 2000V
- Flexing temperature: - 35 °C - +70 °C
- Flame retardant: IEC 60332 -1
- Insulation resistance: 350 MΩ x km
Cable Parameter
AWG |
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Weight kg/Km |
||
H05V3V3H6-F | ||||||
18(24/32) |
12 x 0.75 |
33.7 x 4.3 |
79 |
251 |
||
18(24/32) |
16 x 0.75 |
44.5 x 4.3 |
105 |
333 |
||
18(24/32) |
18 x 0.75 |
49.2 x 4.3 |
118 |
371 |
||
18(24/32) |
20 x 0.75 |
55.0 x 4.3 |
131 |
415 |
||
18(24/32) |
24 x 0.75 |
65.7 x 4.3 |
157 |
496 |
||
17(32/32) |
12 x 1 |
35.0 x 4.4 |
105 |
285 |
||
17(32/32) |
16 x 1 |
51.0 x 4.4 |
157 |
422 |
||
17(32/32) |
20 x 1 |
57.0 x 4.4 |
175 |
472 |
||
17(32/32) |
24 x 1 |
68.0 x 4.4 |
210 |
565 |
||
H05V3V3D3H6-F | ||||||
18(24/32) |
20 x 0.75 |
61.8 x 4.2 |
131 |
462 |
||
18(24/32) |
24 x 0.75 |
72.4 x 4.2 |
157 |
546 |
||
17(32/32) |
12 x 1 |
41.8 x 4.3 |
105 |
330 |
||
17(32/32) |
14 x 1 |
47.8 x 4.3 |
122 |
382 |
||
17(32/32) |
18 x 1 |
57.8 x 4.3 |
157 |
470 |
||
17(32/32) |
22 x 1 |
69.8 x 4.3 |
192 |
572 |
||
17(32/32) |
24 x 1 |
74.8 x 4.3 |
210 |
617 |
||
Any other questions, feel free to contact us.
