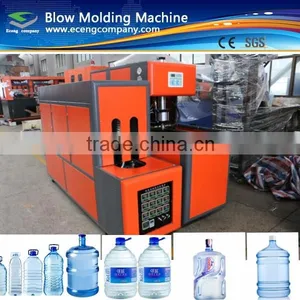

Semi-auto 5 gallon bottle blowing machine 220/240 2 phases
Properties
Controlled by KBS blowding machine computer. Operate consistently and simply•Energy-saving and environmentally friendly design. Mechanical units are compact and rational
•Malfunction alert and diagnostic units allow easy maintenance
•Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc
•Oven can be made according the different preform requirements of customers
Technical Parameter
Main machine |
Model Type |
Parameter |
Product Spec |
Max. product volume(L/cav) |
20L |
Max. preform neck size(mm) |
200 |
|
Max. product diameter(mm) |
400 |
|
Max. product height(mm) |
600 |
|
Cavities |
1 |
|
Blow machine |
Die force (KN) |
150 |
Die stroke (mm) |
340 |
|
Max. mould size(mm) |
420*500 |
|
Mould thickness |
Adjustable |
|
Mould spacing(mm) |
Adjustable | |
Max. pulling stroke(mm) |
500 |
|
Operation pressure(Mpa) |
0.8-1.0 |
|
Operation air consumption (1tr/min) |
560 |
|
Blow pressure(Mpa) |
1.2-2.8 |
|
Blow air consumption (1tr/min) |
300 |
|
Output(pcs/h) |
600-900 |
|
Machine size(LxWxH)(m) |
2.1*0.77*1.96 |
|
Machine weight(KG) |
1000 |
|
Oven |
Temperature grade(rate) |
8 |
Heating time(S) |
90-200 |
|
Voltage(V) |
220 or as your request |
|
Frequency(HZ) |
50/60 |
|
Total power(KW) |
15-40 |
|
Oven Size (L*W*H) |
2.37*0,68*1.65 |
|
Oven weight (KG) |
380 |

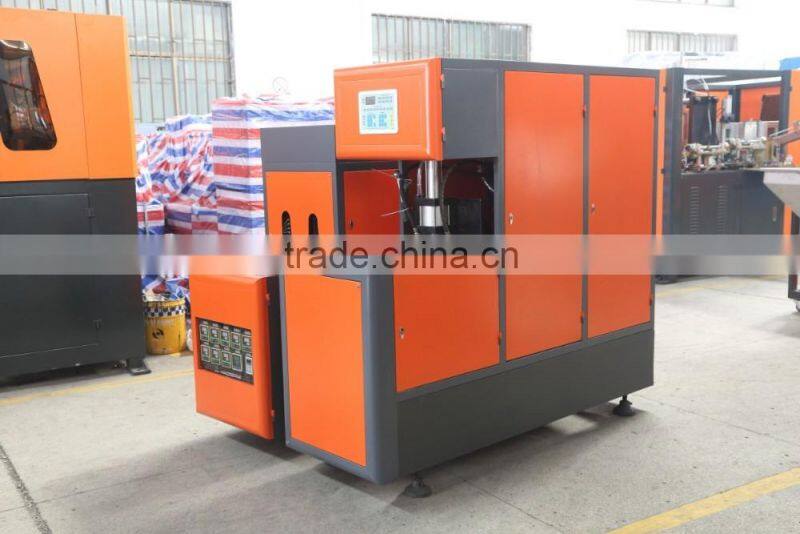

Machine Pictures
Factory
