Low price 5 liter water bottle molding machine 300-500bph
Technical Parameter
Main machine (blowert + oven) |
Model type |
Tech data |
Product Spec |
Max. product volume(L/cav) |
5 |
Max. preform neck size(mm) |
150 |
|
Max. product diameter(mm) |
200 |
|
Max. product height (mm) |
400 |
|
Cavities |
1 |
|
Blow molding part |
Die force (KN) |
120 |
Die stroke (mm) |
320 |
|
Max. mould size(mm) |
390*350 |
|
Mould thickness |
Adjustable |
|
Mould spacing(mm) |
500 |
|
Max. pulling stroke(mm) |
400 |
|
Operation pressure(Mpa) |
0.8-1.0 |
|
|
Operation air pressure consumption (1tr/min) |
350 |
|
Blow pressure(Mpa) |
1.2-2.8 |
|
Blow air pressure consumption (1tr/min) |
300 |
|
Output(pcs/h) |
1000-1800 |
|
Machine size(LxWxH)(m) |
1.56*0.7*1.9 |
|
Machine weight(KG) |
700 |
|
Oven |
Temperature grade(rate) |
8 |
Heating time(S) |
90-200 |
|
Voltage(V) |
220 or as your request |
|
Frequency(HZ) |
50/60 |
|
Total power(KW) |
16 |
|
Oven Size (LxWxH) |
1.45*0.65*1.15 |
|
Oven weight (KG) |
330 |

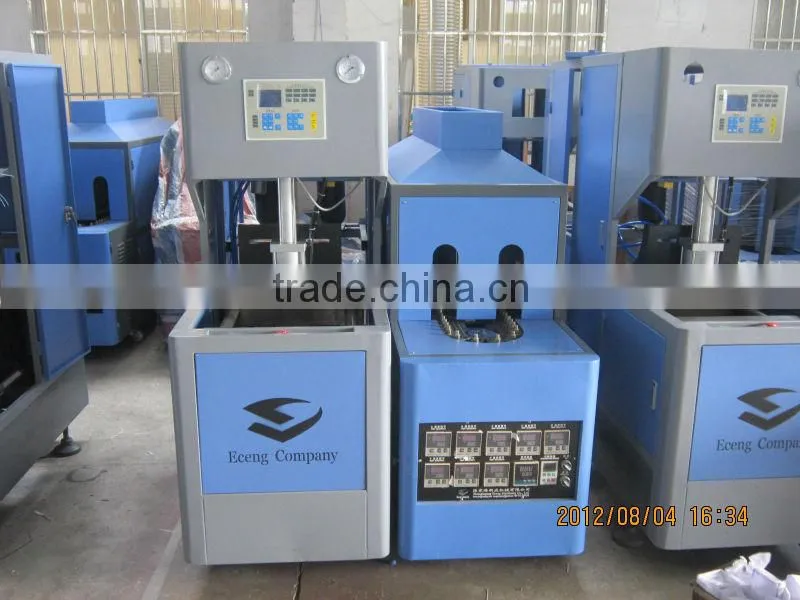

Machine Pictures
Properties
•Controlled by KBS blowding machine computer. Operate consistently and simply
•Pneumatic elements from AIRTAC (German) and SMC (Japan)
•Energy-saving and environmentally friendly design. Mechanical units are compact and rational
•Malfunction alert and diagnostic units allow easy maintenance
•Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc
•Oven can be made according the different preform requirements of customers
packaging & shipping

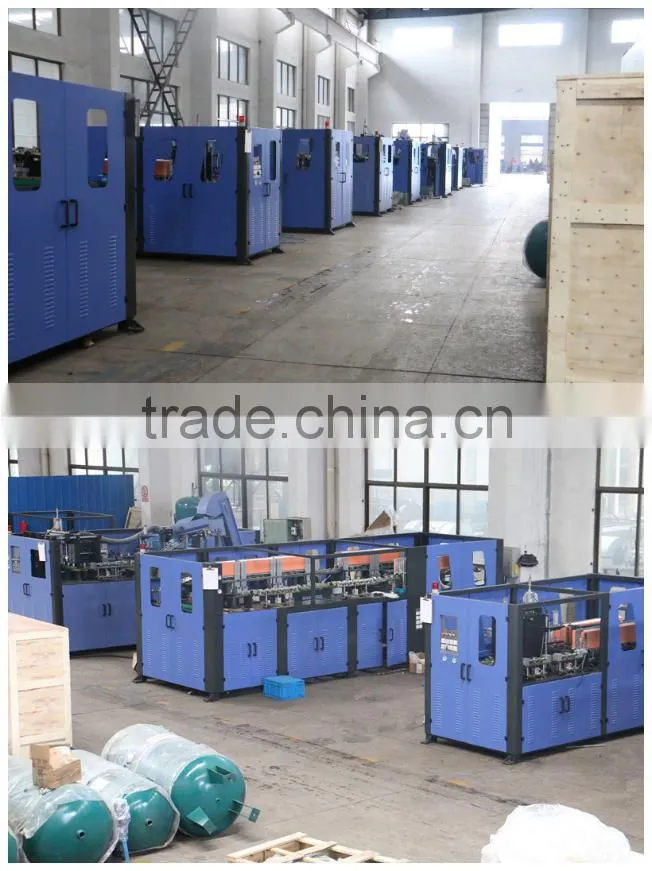

Factory
Contact person:Judy Wang
