5 Gallons PET Bottle Making Machine
US$ 10,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Bottle
Plastic Processed
PET
Blow Moulding Type
Stretch Blow Moulding
Automatic
Yes
Place of Origin
Jiangsu, China
Brand Name
Eceng
Model Number
YCQ
Specifications
5 gallons plasticbottle making machine1-6 cavity
imported component
OEM manufacturer
Perfect after sale service
5 gallons plastic bottle making machine
Featuers of plastic bottle making machine
- Automatic perform input and ready bottle output system.
- Machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.
- Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.
- The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.
- Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.
- Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and diagnose.
- Storing more than 7 kinds specification for making bottle.
- Adopt latest international air pneumatic.
- In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.
Technical Parameter of plastic bottle making machine
| TYPE | ITEM | YCQ-1L-2 | YCQ-1L-3 | YCQ-1L-4 | YCQ-1L-6 | YCQ-2L-2 | YCQ-2L-3 |
| CONTAINER | Number of cavity | 2 cavities | 3 cavities | 4 cavities | 6 cavities | 2 cavities | 3 cavities |
| Theoretical output | 2600-3200 pcs/hr | 3200-3800 pcs/hr | 5500-6000 pcs/hr | 7000-8000 pcs/hr | 2300-2600 pcs/hr | 2800-3200 pcs/hr | |
| ntainer volume | 1L | 1L | 1L | 1L | 2L | 2L | |
| Max.neck diameter | 65mm | 65mm | 65mm | 28-30mm | 80mm | 80mm | |
| ntainer diameter | 65mm | 65mm | 65mm | 60mm | 105mm | 105mm | |
| ntainer height | 230mm | 230mm | 230mm | 260mm | 300-330mm | 300-330mm | |
| ELECTRICAL SYSTEM | Number of lamp | 21pcs | 28pcs | 35pcs | 56pcs | 27pcs | 36pcs |
| Max.heating power | 21kw | 28kw | 35kw | 34kw | 27kw | 36kw | |
| Installation power | 26kw | 32kw | 40kw | 44kw | 32kw | 41kw | |
| Actual power consumption | 14kw | 18kw | 22kw | 24kw | 18kw | 22kw | |
| AIR SYSTEM | Operatating pressure | 7-9kg/cm² | 7-9kg/cm² | 7-9kg/cm² | 7-8kg/cm² | 7-9kg/cm² | 7-9kg/c m² |
| Low pressure consuming | 1000Ltr/min | 1200Ltr/min | 1600Ltr/min | 1600Ltr/min | 1200Ltr/min | 1400Ltr/min | |
| Blowing pressure | 25-35kg/c m² | 25-35kg/c m² | 25-35kg/c m² | 25-35kg/c m² | 25-35kg/c m² | 25-35kg/c m² | |
| High pressure consuming | 1500-2000 Ltr/min | 2000-2200 Ltr/min | 2200-2500 Ltr/min | 2000-2200 Ltr/min | 2000-2500 Ltr/min | 2000-3000 Ltr/min | |
| CHILLER WATER | Operating pressure | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² |
| Temperatuer | 10ºC | 10ºC | 10ºC | 10ºC | 10ºC | 10ºC | |
| Consuming | 5600kcal/hr | 5600kcal/hr | 5600kcal/hr | 8000kcal/hr | 5600kcal/hr | 7600kcal/hr | |
| Flow rater | 30Ltr/min | 30Ltr/min | 30Ltr/min | 88Ltr/min | 30Ltr/min | 45Ltr/min | |
| MACHINE | Machine dimension | 2.3x1.5x1.7(m) | 2.7x1.5x1.7(m) | 3.0x1.5x1.7(m) | 5.2x2.0x2.0(m) | 2.4x1.5x1.7(m) | 2.7x1.5x1.7(m) |
| Machine weight | 1.8ton | 2.5ton | 2.8ton | 5.0ton | 2.0ton | 2.6ton |
Plastic bottle making machineParts
Pneumatic part |
valve |
SMC |
cylinder | ||
Electric part |
PLC |
SIEMENS |
Operating system |
SIEMENS |
|
Relay |
OMRON |
|
Infrared thermometer |
America raytek |
|
servo motor |
Schneider |

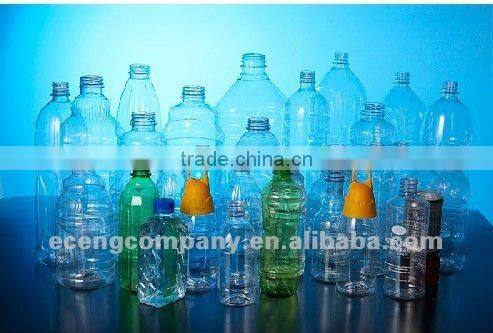

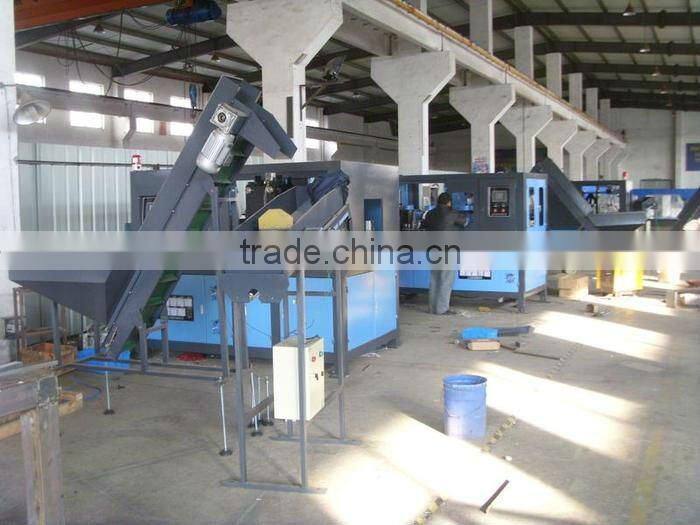

plastic bottle making machine pictures
Product picture
