PET Plastic Blow Molding Machine

Name: PET Plastic Blow Molding Machine
Brand: Eceng
SKU: 121504095
Availability: InStock

US$ 5,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Bottle

Plastic Processed:

PET

Zhangjiagang Eceng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Bottle

Plastic Processed PET

Blow Moulding Type Stretch Blow Moulding

Automatic Yes

Place of Origin Jiangsu, China

Brand Name Eceng

Model Number YCQ-1L-2

Weight 2.5 tons

Specifications

PET plastic blow molding machine
2 cavity
2400-2700pcs/hr
Easy to operation&maintain
Perfect after-service

PET plastic blow molding machine

Model type: YCQ-1L-2

Product max volume:1L

Suitable for blowing bottles between 150ML-1000ML

Output:2400-2700pcs/hr

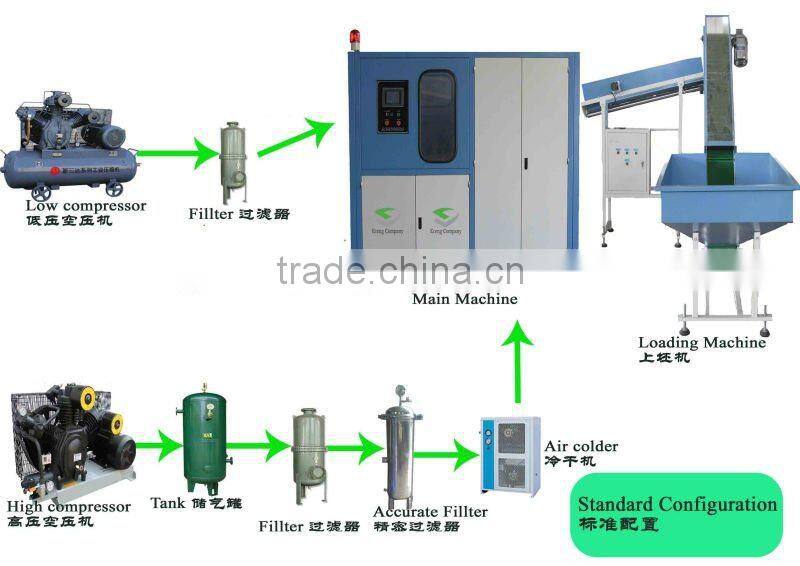

Necessary auxiliary devices:High pressure air compressor, Air filt, Accurate filt, Low ressure air compressor, colod dryer

Item		YCQ-1L-2
Bottle type specification	Cavity	2
	Theory output	2400-2700
	Max.volume	1L
	Bottle mouth maximum overall diameter	80mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Maximum heating power	24KW
	All electric machine installation	27KW
	Actual consumption	8.1KW
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1000L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	1500Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10°C
	Consumption	5000kcal/hr
	Forzen water flow	30L/min
Machine specification	Size of the machine	2.25x1.6x1.7
Machine specification	Weight of the machine	2.5ton

Machine parts

Name	Brand	Original
Blowing cylinder	FESTO	Germany
Mould closing and opening cylinder	FESTO	Germany
valve	FESTO	Germany
Revolve cylinder	SMC	Japan
PLC	MITSUBISHI	Japan
HMI SCRENN	WINVIEW 506L	Taiwan
Switch	OMRON	Japan
