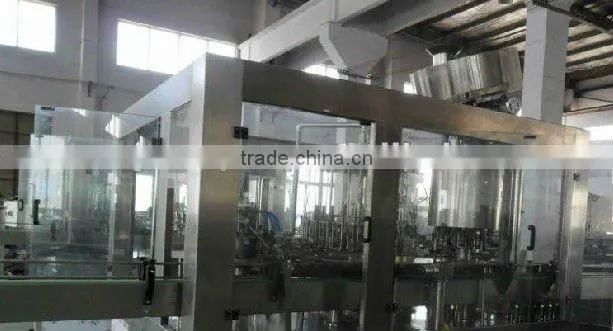

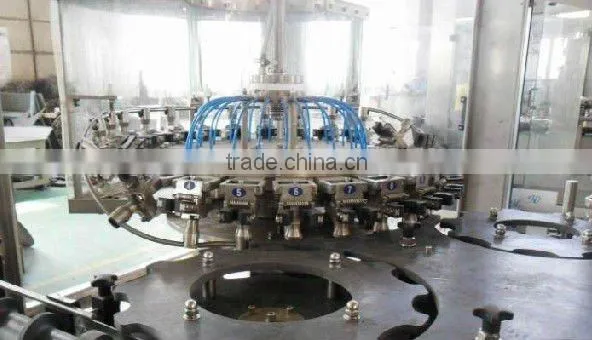

Help CenterCarbonated Soft Drink Filling Machine
Related Products
-
Water Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set -
Juice or Tea Beverage Hot Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set
-
Juice Washing Filling and Capping MachineUS$ 10,000 - 150,000MOQ: 1 Set
-
3-in-1 Monobloc Whiskey and Vodka Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set
-
Water Filling Machine CGF18-18-6US$ 10,000 - 150,000MOQ: 1 Set
Specifications
1. 2000-22000b/h for 500ml2. 0.25-2L PET bottle
3. Carbonated Drinks
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. The cylinder drive the valve the movements is accurate and reliable. High-throughput, high-precision filling valve, filling fast and accurate. Equipped the CIP loop and control procedures, the equipment is easy to clean.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Using the programmable controller as control centers; using pressure transmitter, electromagnetic measurement to maintain the balance of liquid surface so as to ensure the stability of liquid.
7. New designing filling valve, return gas and filling liquid are separate to ensure the filling materials is clean.
8. The machine adopt advanced magnetic clutch screw lid and the torsion torque is adjustable, so screwing is safe and reliable.
| |||||||
Model |
CGFD16126 |
CGFD18186 |
CGFD24248 |
CGFD32328 |
CGFD404010 |
CGFD484812 |
CGFD606015 |
Waher/Filler/Capper heads |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
48-48-12 |
60-60-15 |
Bottle diameter(mm) |
Φ=50-100 H=170 330-2500ml |
Φ50-Φ110 |
H=160-340 |
||||
Production capacity (BPH) |
2000-4000 |
4000-7000 |
8000-10000 |
10000-12500 |
12500-15000 |
16000-20000 |
20000-24000 |
Filling temperature |
0-5 |
||||||
Filler type |
Balanced pressure filler |
||||||
Spraying pressure |
0.2-0.25 |
0.2-0.25 |
|||||
Filling pressure |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
||||
Motor power(kw) |
1.5+0.12+ 0.45 |
2.2+0.55+ 0.45 |
3+0.37+ 0.55 |
7.5 |
8.6 |
11 |
15 |
Overall dimension( |
2300×1600 ×2500 |
2460× 1860 ×2650 |
3100× 2100 ×2650 |
4350× 2880 ×3200 |
4850× 3800 ×3200 |
5000× 4000 ×3300 |
6500× 5800 ×3200 |
weight kg |
2800 |
3650 |
4800 |
6000 |
7500 |
9800 |
11500 |
