Specifications
water filling machine suitable for filling drinking and water PET bottle filling machinecarbonated beverage filling machine
No. |
Machinery |
Spec. |
Model DXGF |
Capacity |
Material |
1 |
Automatic 3-in-1 monoblock machine |
PET bottle from 200ml to 2000ml |
DXGF-14-12-5 |
500ml - 3000 bottles/hr |
SUS 316 and 304 |
2 |
Automatic 3-in-1 monoblock machine |
PET bottle from 200ml to 2000ml |
DXGF-16-16-5 |
500ml - 4000 bottles/hr |
SUS 316 and 304 |
3 |
Automatic 3-in-1 monoblock machine |
PET bottle from 200ml to 2000ml |
DXGF-18-18-6 |
500ml - 4500 bottles/hr |
SUS 316 and 304 |
5 |
Automatic 3-in-1 monoblock machine
|
PET bottle from 200ml to 2000ml |
DXGF-24-24-8 |
500ml - 6000 bottles/hr |
SUS 316 and 304 |
6 |
Automatic 3-in-1 monoblock machine
|
PET bottle from 200ml to 2000ml |
DXGF-32-32-8 |
500ml - 8000 bottles/hr |
SUS 316 and 304 |
7 |
Automatic 3-in-1 monoblock machine
|
PET bottle from 200ml to 2000ml |
DXGF-40-40-12 |
500ml - 12000 bottles/hr |
SUS 316 and 304 |
8 |
Automatic 3-in-1 monoblock machine
|
PET bottle from 200ml to 2000ml |
DXGF-50-50-18 |
500ml - 14000 bottles/hr |
SUS 316 and 304 |
9 |
Automatic 3-in-1 monoblock machine
|
PET bottle from 200ml to 2000ml |
DXGF-60-60-18 |
500ml - 16000 bottles/hr |
SUS 316 and 304 |
10 |
Automatic 3-in-1 monoblock machine
|
PET bottle from 200ml to 2000ml |
DXGF-72-72-20 |
500ml - 20000 bottles/hr |
SUS 316 and 304 |
11 |
Automatic 3-in-1 monoblock machine
|
PET bottle from 200ml to 2000ml |
DXGF-80-80-24 |
500ml - 25000 bottles/hr |
SUS 316 and 304 |
DXGF series machine for carbonated beverage or water filling into the PET or glass bottle.

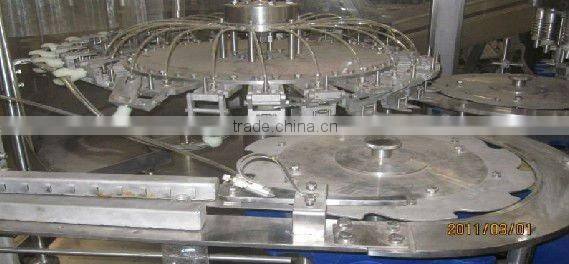

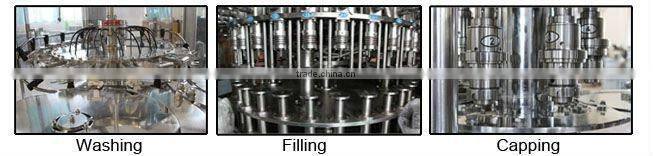

Machine is composed of bottle rinsing/filling/capping three parts, it is the automatic monoblock machine.
FEATURES:
1. Production capacity from 0 to 26000 bottles per hour base on 500ml PET bottle
2. The parts touch with the juice beverage are made of stainless steel 316, the others are made of stainless steel 304, to meet the GMP.
REQUIREMENTS:
3. With the machine the PLC we adopts from SIEMENS S7, Germany.
4. This machine can connect with CIP washing system
5. Stepless timing with frequency conversion
6. The bottle neck lock system, which makeds the process of changing bottles easy by only adapting the height of conveyer chain.
7. The filling process adopts the micro-pressure technology with the water supplying system under constant pressure, which makes the filling process faster and more stable.
8. N bottle no rinsing
9. No bottle no filling
10. No bottle no capping.
