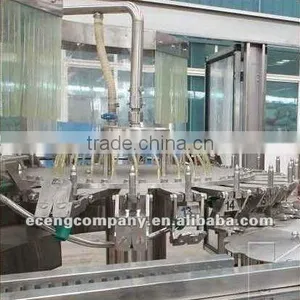

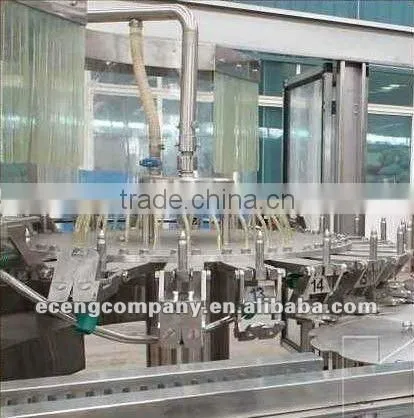

Help CenterJuice Washing Filling and Capping Machine
Related Products
-
3-in-1 Monobloc Whiskey and Vodka Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set -
Water Filling Machine CGF18-18-6US$ 10,000 - 150,000MOQ: 1 Set
-
Automatic Juice Bottle Filling Production LineUS$ 10,000 - 150,000MOQ: 1 Set
-
3-in-1 Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set
-
Beer Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set
Specifications
Juice beverage filling machine full line ; we can provide the whole juice filling production line for our custome

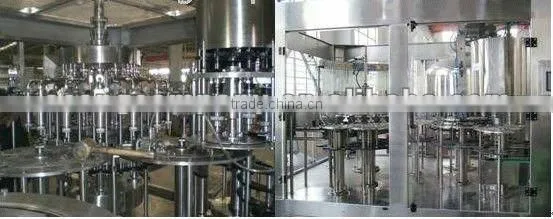

juice beverage machine
This machine has compact structure, complete control system and high automation. It is easy to operate, simple to maintain.
Filling principle is gravity filling or normal pressure filling. Filling valves are made of stainless steel with high quality.
It is suitable for different PET bottles with different shapes. When changing for another bottle type, only need to change the star wheels, no need to adjust machine height.
Bottle is transferred by clamping its neck, which avoid the second pollution to bottle.
It is equipped with overload protection device which can make sure the machine and workers in safe situation.
Control system has the functions of testing caps, stopping work when bottles are blocked and counting capacity, etc.
Main electronical parts and pneumatic parts are from world famous brands, such as MITSUBISHI, SIEMENS, OMRON, AIRTAC, SCHNEIDER and so on, which make sure the machine has good quality.
Capping head is equipped with magnetic torque device to guarantee good effect of sealing caps and not break the cap. The torque can be designed according to real production demand.
Cap feeding system has perfect feeding technology and protection device. When there is no bottle, cap is not delivered.
The machine is controlled by PLC. From bottle going in to bottle going out, the whole process is controlled by micro-computer. Capacity and production speed can be shown on PLC screen.
Components
1) driving system
2) bottle-loading system
3) bottle-rinsing system
4) transmittal system between rinsing and filling
5) filling system
6) transmittal system between filling and capping
7) capping system
8) cap-unscrambling system
9) bottle-unloading system
10) frame
11) electrical system
