Help CenterMineral Water Filling Machine
US$ 10,000 - 150,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Eceng
Model Number:
YC-CGF
Payment & Shipping
Payment Methods:
Port of Shipment:
FOBSHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pure/Mineral Water Filling MachineryUS$ 10,000 - 150,000MOQ: 1 Set -
Carbonated Beverage Bottle Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set
-
Carbonated Beverage Bottle Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set
-
Juice/tea Beverage Bottling Hot Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set
-
3in1 Hot Tea Filling MachineUS$ 10,000 - 150,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
Eceng
Model Number
YC-CGF
Specifications
1.Washing,filling,capping2.Controlld by PLC
3.Used for Beverage/water/juice
4.CE,ISO

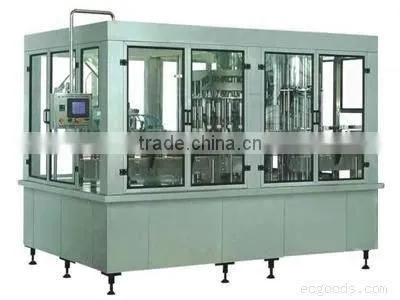

Mineral Water Filling Machine
Washing Filling Capping
Products Introduction:
1.Juice Bottling Machine / Pure Water Production Line-user
2.This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.
1.Juice Bottling Machine / Pure Water Production Line-user
2.This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.
3.The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical Parameters:
| Technical Data | ||||
| Model | CGF14124 | CGF18186 | CGF24248 | CGF323210 |
| The number of Washing, Filling, Capping | 14-12-4 | 18-18-6 | 24-24-8 | 32-32-8 |
|
Producing capacity; The number of bottle(600ml)/hour |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
| Pressure (kg/cm2) | 2~3 | |||
| Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
| Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
|
Overall dimension (mm) (LxWxH) |
2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 |
| Technical Data | |||
| Model | CGF404010 | CGF484812 | CGF606015 |
| The number of Washing, Filling, Capping | 40-40-10 | 48-48-12 | 60-60-15 |
|
Producing capacity: The number of bottle(600ml)/hour |
16000-20000 | 20000-24000 | 25000-30000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||
| Pressure (kg/cm2) | 2~3 | ||
| Motor power (kw) | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
| Outside vacuum pump power (kw) | 2.2 | 3 | 4 |
|
Overall dimension (mm) (LxWxH) |
4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
| Weight(kg) | 6800 | 7600 | 9800 |
Pictures:
